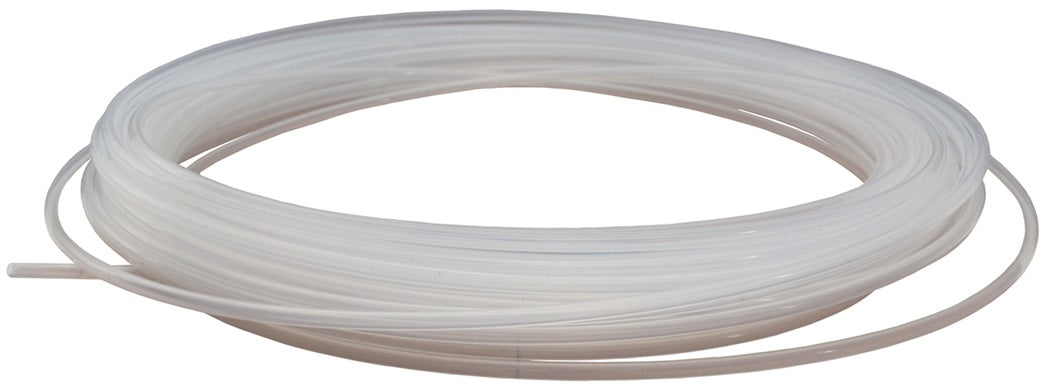

05094 by Dixon Valve | Polyurethane Tubing | 5/32" OD | 0.094" ID | 0.0315" Wall Thickness | 100ft Length

05094 by Dixon Valve | Polyurethane Tubing | 5/32" OD | 0.094" ID | 0.0315" Wall Thickness | 100ft Length

Sale price$42.38

Dixon Valve
Polyurethane Tubing

For use with the push-in fittings.


Package Quantity: 100 Feet

Buy More, Save More!
Quantity Price Each
10–39 $39.84
40–79 $36.02
80+ $31.79
Discounts applied in cart/checkout.

Product Data:

Internal Diameter:
  • 0.094in
Outer Diameter:
  • 0.15625in
Tubing Construction:
  • Polyurethane
Features:
  • Naturally transparent.
  • Excellent memory, flexibility, and resistance to kinking.
  • Good resistance to fuels and oils.
  • Low gas and vapor permeability.
  • High compressive strength.
  • Low compressive set and extractability levels.
  • Outstanding abrasion resistance.
Specifications:
  • Temperature range: -40°F to 165°F (-40°C to 74°C).
  • NSF61 certified for potable water.
Polyurethane
Part Number		 Size Wall Thickness Working Pressure
PSI @ 75°F (24°C)		 Length
O.D. I.D.
04063 1/8" 0.062" 0.0295" 255 PSI 250ft
05094 5/32" 0.094" 0.0315" 210 PSI 100ft
08160 1/4" 0.160" 0.0450" 175 PSI 100ft
12250 3/8" 0.245" 0.0650" 170 PSI 100ft
16320 1/2" 0.320" 0.0900" 175 PSI 50ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
