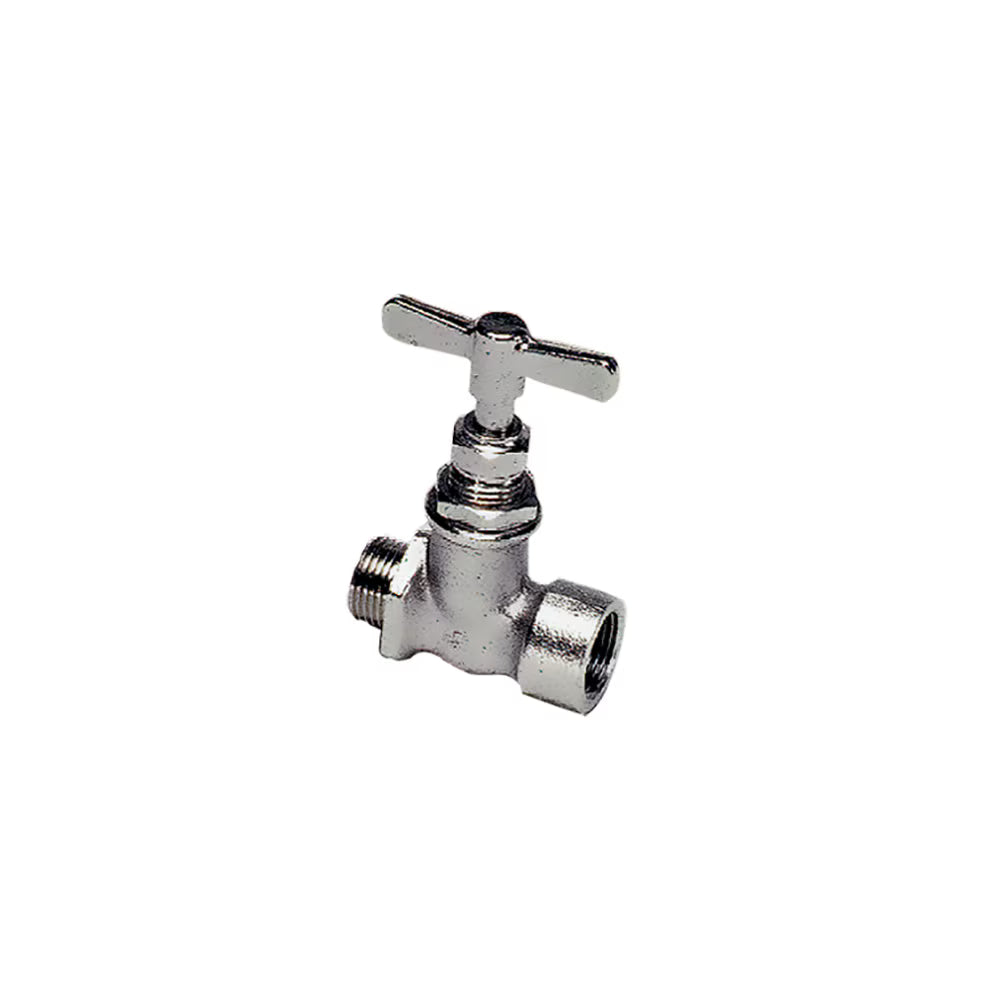

0501 04 10 by Parker | In-Line Needle Valve | 1/8" Female BSPP x 1/8" Male BSPP | Straight | Nickel-Plated Brass

0501 04 10 by Parker | In-Line Needle Valve | 1/8" Female BSPP x 1/8" Male BSPP | Straight | Nickel-Plated Brass

Sale price$72.53

by Parker Hannifin
Needle Valve Series:0502 In-Line Needle Valve, Female BSPP Thread
Buy More, Save More!
Quantity Price Each
20–39 $68.18
40–79 $61.65
80+ $54.40
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0502 Series
Shape:

Straight

Ends Configuration:
  • 1/8in Female BSPP
  • 1/8in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) C E E1 H H (max) J L Kg
0501 04 10 4 mm 1/8" 9 mm 7 mm 56 mm 50 mm 17 mm 44 mm .118 Kg
0501 04 13 4 mm 1/4" 11 mm 9.5 mm 56 mm 50 mm 17 mm 46 mm .115 Kg
