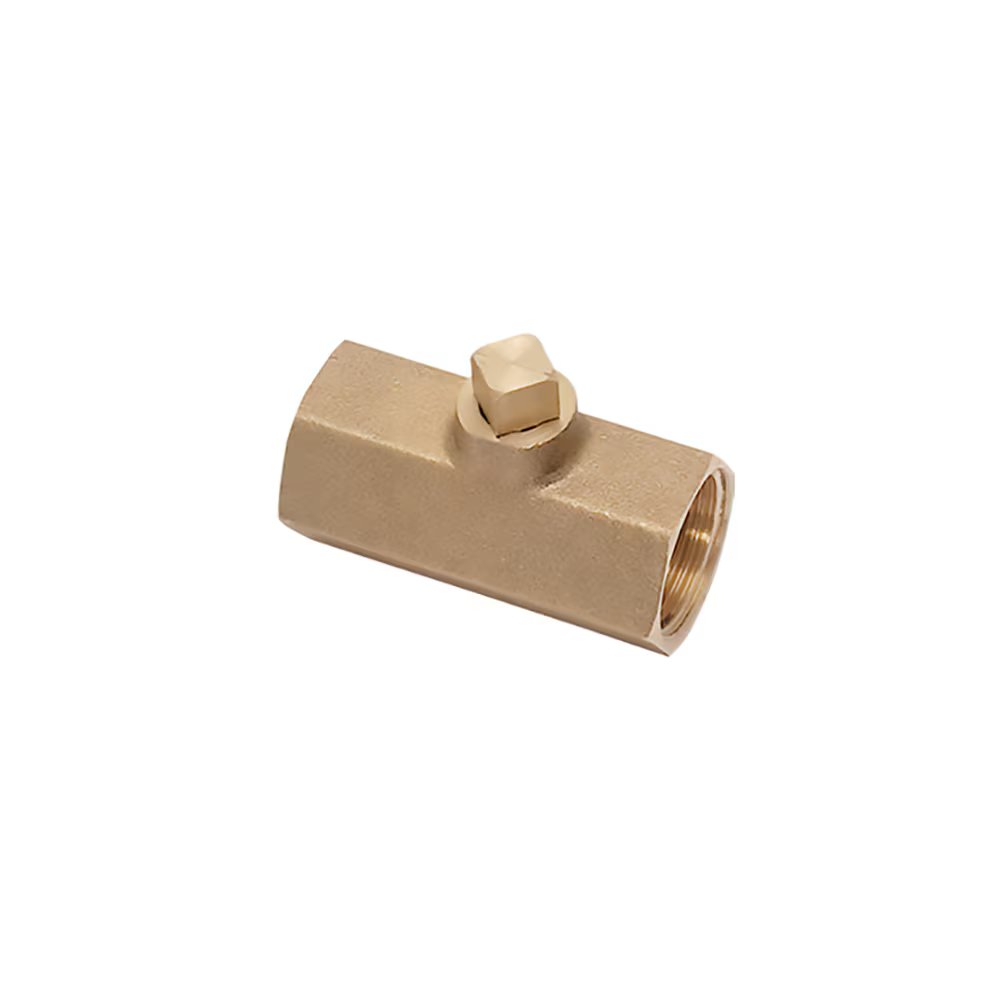

0497 13 27 by Parker | Legris Square Stem Ball Valve | 3/4" Female BSPP Thread | 30 mm Hex | Straight | Brass

$58.40

by Parker Hannifin
Universal Light Series:0497 2/2 Ball Valve, Square Stem, Female BSPP Thread

Quantity:

Buy More, Save More!
Quantity	Price Each
20–39	$54.90
40–79	$49.64
80+	$43.80

Discounts applied in cart/checkout.

Product Data:

Series:

0497 Series

Shape:

Straight

Ends Configuration:

3/4in Female BSPP
3/4in Female BSPP
Some Ends Match

Technical Characteristics:	Compatible Fluids: Industrial fluids Working Pressure: Vacuum up to 12 bar Working Temperature: -20°C to +80°C
Advantages:	Compactness Corrosion resistance due to chemical nickel plating Automatic compensation of seal wear Repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Shot-blasted brass or shot-blasted nickel-plated brass Stem: Brass Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Wear-compensation seal: NBR Lever: Polymer or Zamak


Part Number	Diameter Nominal (DN)	C	E	F	H	J	L	L1	Kg
0497 07 17	7 mm	3/8"	11 mm	22 mm	26 mm	7 mm	45 mm	20 mm	.122 Kg
0497 13 27	13 mm	3/4"	14 mm	30 mm	30 mm	10 mm	62 mm	28 mm	.230 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Explore Parker Fluid System Connectors Division
