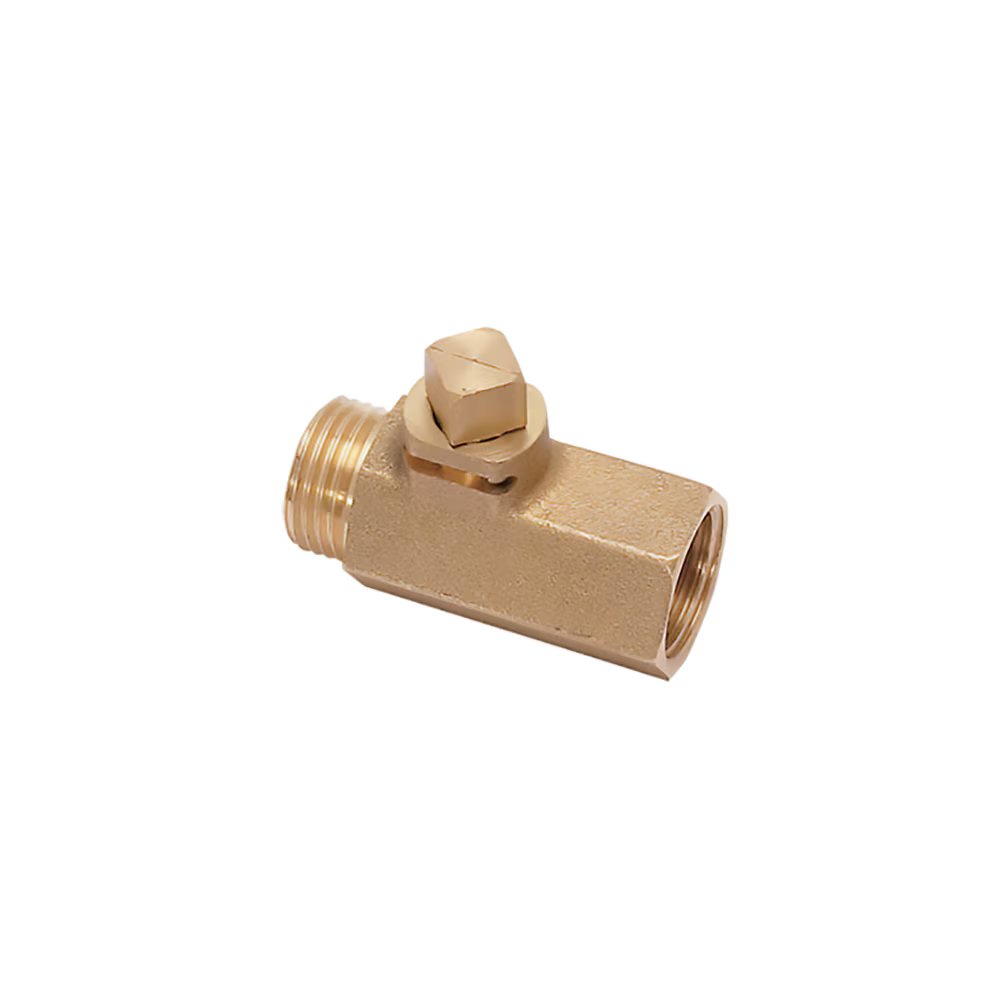

0496 07 17 by Parker | Legris Square Stem Ball Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 22 mm Hex | Straight | Brass | Pack of 10

0496 07 17 by Parker | Legris Square Stem Ball Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 22 mm Hex | Straight | Brass | Pack of 10

Sale price$308.41

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: Industrial fluids
  • Working Pressure: Vacuum up to 12 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Compactness
  • Corrosion resistance due to chemical nickel plating
  • Automatic compensation of seal wear
  • Repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Shot-blasted brass or shot-blasted nickel-plated brass
  • Stem: Brass
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Wear-compensation seal: NBR
  • Lever: Polymer or Zamak
Part Number Diameter Nominal (DN) C E E1 F H J L L1 Kg
0496 07 17 7 mm 3/8" 8 mm 11 mm 22 mm 26 mm 7 mm 45 mm 20 mm .118 Kg

Additional Product Data:

Series:
  • 0496 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male BSPP
  • 3/8in Female BSPP

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Explore Parker Fluid System Connectors Division
