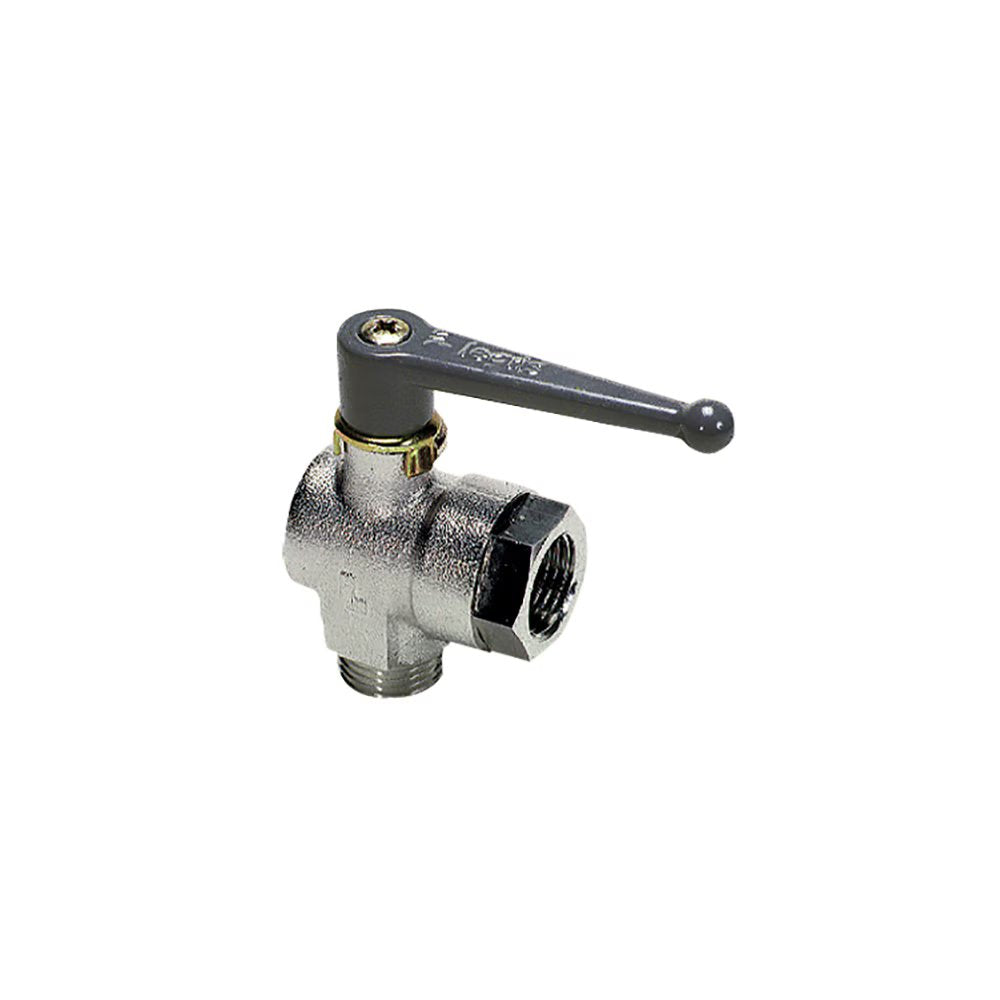

0471 12 21 by Parker | Legris In-Line Ball Valve | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 27mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

0471 12 21 by Parker | Legris In-Line Ball Valve | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 27mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Sale price$365.58

by Parker Hannifin
Universal Series:0471 2/2 Right-Angled Ball Valve, Male/Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $343.65
15–29 $310.74
30+ $274.19
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0471 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/2in Male BSPP
  • 1/2in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E E1 F H H1 H2 J L L1 M Kg
0471 06 13 6 mm 1/4" 12 mm 9 mm 19 mm 38 mm 31 mm 25 mm 22 mm 38 mm 28 mm 48 mm .187 Kg
0471 12 21 12 mm 1/2" 15 mm 12 mm 27 mm 47 mm 44 mm 32 mm 29 mm 49 mm 34 mm 69 mm .303 Kg
0471 18 27 18 mm 3/4" 16.5 mm 12 mm 38 mm 59 mm 51 mm 37 mm 39 mm 60 mm 39 mm 108 mm .682 Kg

Maximum working pressure: 20 bar
