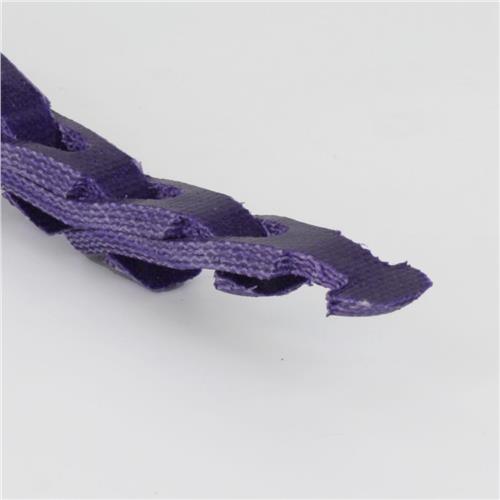

0470425 Fenner Drives Eagle Trackstar Round Link Belting - 9/16" Diameter - 25ft - Beltsmart

0470425 by Fenner Drives | Eagle Trackstar Round Link Belting | 9/16" Diameter | 25ft

Sale price$474.49
Fenner Drives - Conveying - Round Belting - 13mm, 9/16" Round Cross Sections - Round Link Belting

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
5–14 $446.02
15–29 $403.32
30+ $379.59
Discounts applied in cart/checkout.
Overview:
  • 9/16" (14mm) round Tango Conveyor Belting offers many benefits over traditional polyurethane belting: No Welding; Easy, Fast Installation; Longer Belt Life; and Resistance to Harsh Environments.
Description:
  • Best Suited For: Conveying applications designed to use 9/16" (14mm) round polyurethane belts.

    Take advantage of the added-value benefits of Tango High Performance Conveyor Belting:

    Easy, Fast Installation with No Welding Required

  • Make to length by hand, without tools
  • No curing time, just twist and go!
  • Longer Belt Life
  • Extremely high strength and excellent performance in harsh environments
  • Simple Inventory Management - Less money tied up in spare belting and no belt waste


    • From standard conveying to applications requiring abrasion resistance, non-marking, high temperature, oil and chemical resistance, you name it- simply Twist and Go with Tango Belting for all of your conveying needs.

    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: Round Profile Size: 9/16"
Reinforcement: None Color: Purple
Compliancy: RoHS Durometer: N/A
Material: Composite Polyester/Polyurethane Minimum Pulley Diameter: 140mm, 5.50"
Package Length: 25' or 10m

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470425 Tango Belting 25ft 9/16" 5.5" 140mm 450lbs 204kg 155lbs 70kg
0470433 Tango Belting 10m 9/16" 5.5" 140mm 450lbs 204kg 155lbs 70kg

Product Data:

Brand:
  • Eagle
Series:
  • Trackstar

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.

Explore Fenner Drives
