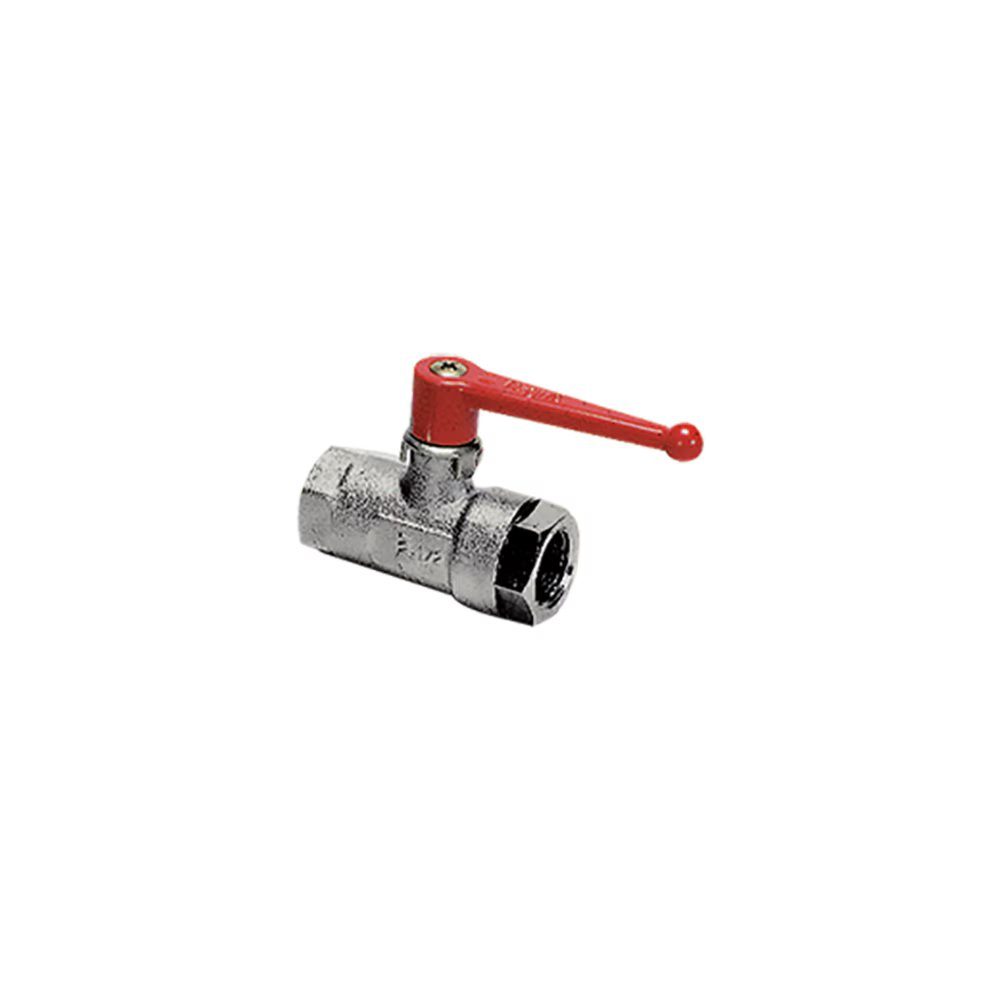

0469 13 21 by Parker | Legris In-Line Vented Ball Valve | 1/2" Female BSPP Thread | 27 mm Hex (F) | 27 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 5

0469 13 21 by Parker | Legris In-Line Vented Ball Valve | 1/2" Female BSPP Thread | 27 mm Hex (F) | 27 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 5

Sale price$321.04

by Parker Hannifin
Universal Series:0469 3/2 In-Line Vented Ball Valve, Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $301.78
15–29 $272.88
30+ $240.78
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0469 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female BSPP
  • 1/2in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E F F1 H H1 L L1 M TM Kg
0469 04 10 4 mm 1/8" 8 mm 14 mm 14 mm 35 mm 29 mm 44 mm 25 mm 48 mm 1.5 mm .092 Kg
0469 07 13 7 mm 1/4" 12 mm 24 mm 24 mm 46 mm 43 mm 59 mm 31 mm 70 mm 2 mm .268 Kg
0469 10 17 10 mm 3/8" 12 mm 24 mm 24 mm 46 mm 43 mm 59 mm 31 mm 70 mm 2 mm .246 Kg
0469 13 21 13 mm 1/2" 15 mm 27 mm 27 mm 47 mm 44 mm 67 mm 34 mm 70 mm 2 mm .294 Kg
0469 18 27 18 mm 3/4" 16.5 mm 32 mm 38 mm 63 mm 54 mm 80 mm 39 mm 39 mm 2.5 mm .668 Kg
0469 23 34 23 mm 1" 19 mm 41 mm 46 mm 67 mm 57 mm 94 mm 47 mm 108 mm 3 mm 1.026 Kg

Maximum working pressure: 40 bar
