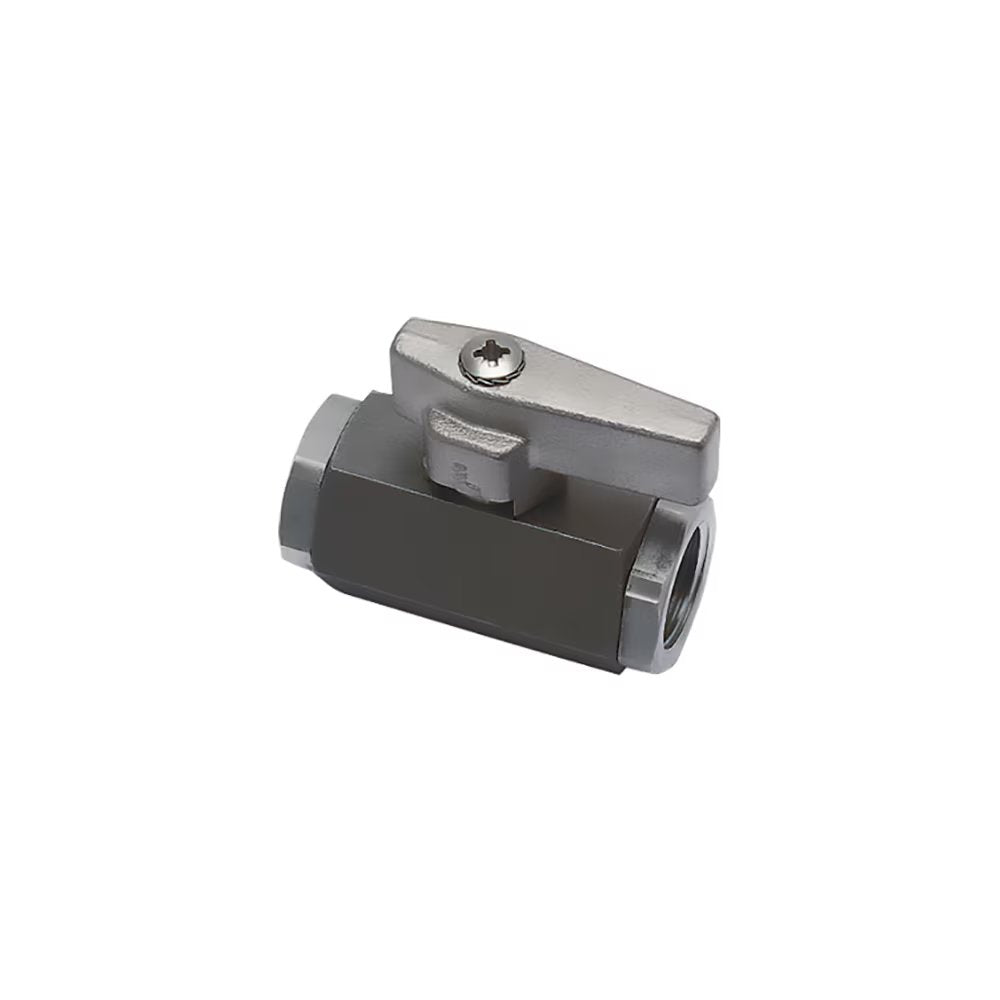

0465 07 17 by Parker | Legris In-Line Light Series Ball Valve | 3/8" Female BSPP Thread | 24 mm Hex | 27 mm Hex | 55 mm Length | Straight | 303 Stainless Steel | Pack of 2

0465 07 17 by Parker | Legris In-Line Light Series Ball Valve | 3/8" Female BSPP Thread | 24 mm Hex | 27 mm Hex | 55 mm Length | Straight | 303 Stainless Steel | Pack of 2

Sale price$587.88

by Parker Hannifin
Stainless Steel Series:0465 2/2 In-Line Light Series Ball Valve, Female BSPP Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $552.61
15–29 $499.70
30+ $440.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • Light Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female BSPP
  • 3/8in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: All fluids
  • Working Pressure: 0 to 20 bar
  • Working Temperature: -20°C to +120°C
Advantages:
  • Chemical compatibility
  • High temperature operation: up to +150°C
  • 3 straight versions:
      • - Compact type cannot be disassembled
      - 3-piece can be disassembled
      - Light series for more compactness
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465)
  • Stem seal: PTFE
  • Seat seals: PTFE
  • Lever: Nickel-plated brass (0465) or 430 stainless steel (4832-4812-4810)
  • Stem: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465)
  • Wear-compensation seal: 2 PTFE seals (0465)
    1 FKM seal (4832-4812-4810)
  • Locking nut and Locking screw: Zinc plated steel
  • Ball: 316L stainless steel (4832-4812-4810) or 303 stainless steel (0465)
Part Number Diameter Nominal (DN) C E F F1 H L Kg
0465 04 13 4 mm 1/4" 13 mm 19 mm 24 mm 36 mm 50 mm .226 Kg
0465 07 17 7 mm 3/8" 13 mm 24 mm 27 mm 39 mm 55 mm .278 Kg

Silicone-free
Threads conformed to ISO 228/1-G

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
