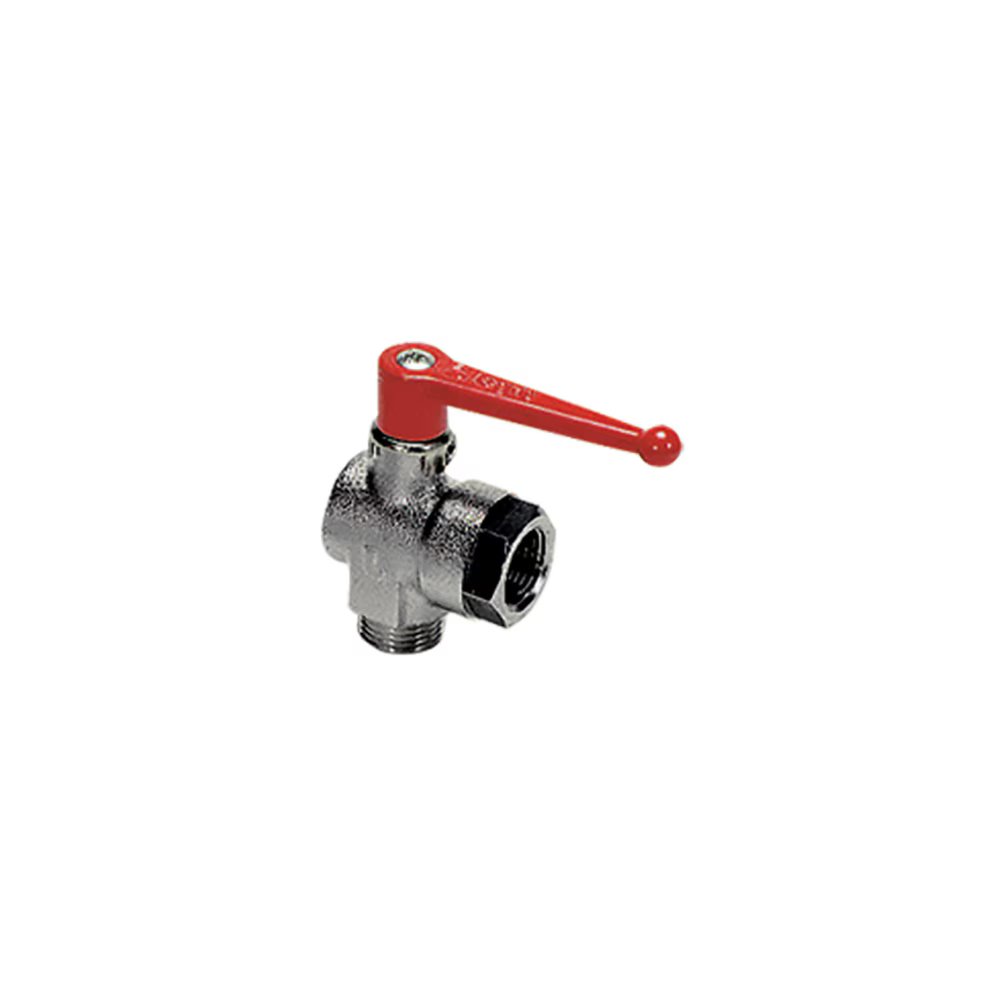

0461 09 17 by Parker | Legris Ball Valve w/ Vent | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 24 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5
by Parker Hannifin
Universal Series:0461 3/2 Right-Angled Ball Valve with Vent, Male/Female BSPP Thread
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $337.76 |
| 15–29 | $305.42 |
| 30+ | $269.49 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Diameter Nominal (DN) | C | E | E1 | F | H | H1 | H2 | J | L | L1 | M | Kg |
| 0461 06 10 | 6 mm | 1/8" | 8 mm | 7 mm | 19 mm | 38 mm | 31 mm | 20 mm | 22 mm | 37 mm | 27 mm | 48 mm | .182 Kg |
| 0461 06 13 | 6 mm | 1/4" | 12 mm | 9 mm | 19 mm | 38 mm | 31 mm | 24 mm | 22 mm | 38 mm | 28 mm | 48 mm | .186 Kg |
| 0461 09 17 | 9 mm | 3/8" | 12 mm | 11 mm | 24 mm | 45 mm | 43 mm | 27 mm | 25 mm | 46 mm | 31 mm | 69 mm | .257 Kg |
| 0461 12 21 | 12 mm | 1/2" | 15 mm | 12 mm | 27 mm | 47 mm | 44 mm | 33 mm | 29 mm | 49 mm | 34 mm | 69 mm | .304 Kg |
| 0461 18 27 | 18 mm | 3/4" | 16.5 mm | 12 mm | 38 mm | 59 mm | 51 mm | 40 mm | 39 mm | 60 mm | 39 mm | 108 mm | .648 Kg |
Maximum working pressure: 20 bar
