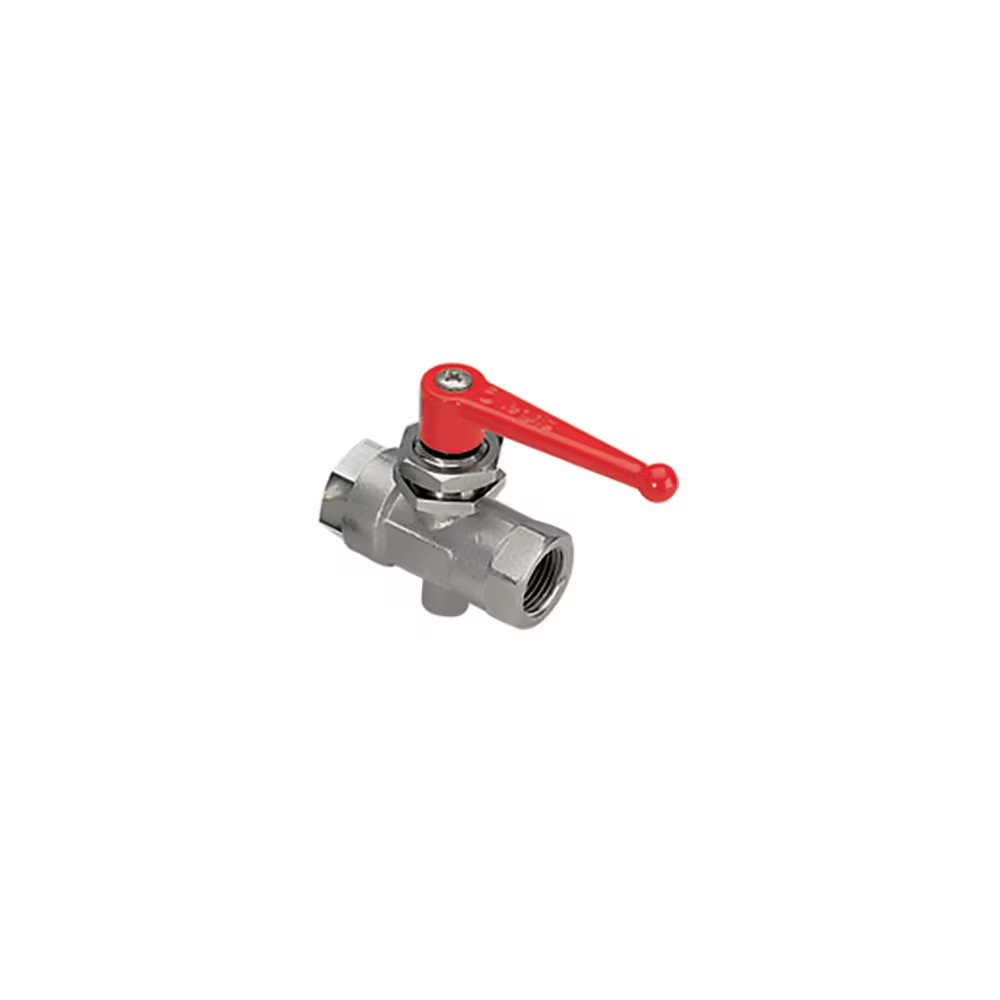

0449 10 17 by Parker | Legris Panel-Mountable In-Line Exhaust Port Ball Valve | M5x0.8 Female Metric Thread x 3/8" Female BSPP Thread | 24 mm Hex (F) | 24 mm Hex (F1) | 90° Elbow | Nickel-Plated Brass

0449 10 17 by Parker | Legris Panel-Mountable In-Line Exhaust Port Ball Valve | M5x0.8 Female Metric Thread x 3/8" Female BSPP Thread | 24 mm Hex (F) | 24 mm Hex (F1) | 90° Elbow | Nickel-Plated Brass

Sale price$81.03

by Parker Hannifin
Universal Series:0449 3/2 Panel-Mountable In-Line Threaded Exhaust Port Ball Valve, Female BSPP and Metric Thread
Buy More, Save More!
Quantity Price Each
20–29 $76.17
30–59 $68.88
60+ $60.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0449 Series
Shape:

90° Elbow

Material(s):
  • Nickel-Plated Brass
  • Rilsan Graphited
  • ZAMAK
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C1 C E F F1 H H1 H2 H3 L L1 M T Kg
0449 07 13 7 mm M5x0.8 1/4" 12 mm 24 mm 24 mm 50 mm 20 mm 17 mm 21 mm 59 mm 31 mm 69 mm 2.5 mm .313 Kg
0449 10 17 10 mm M5x0.8 3/8" 12 mm 24 mm 24 mm 50 mm 20 mm 17 mm 21 mm 59 mm 31 mm 69 mm 2.5 mm .291 Kg
0449 13 21 13 mm 1/8" 1/2" 15 mm 27 mm 24 mm 52 mm 23 mm 24 mm 21 mm 67 mm 34 mm 69 mm 4 mm .352 Kg

Maximum working pressure: 20 bar
