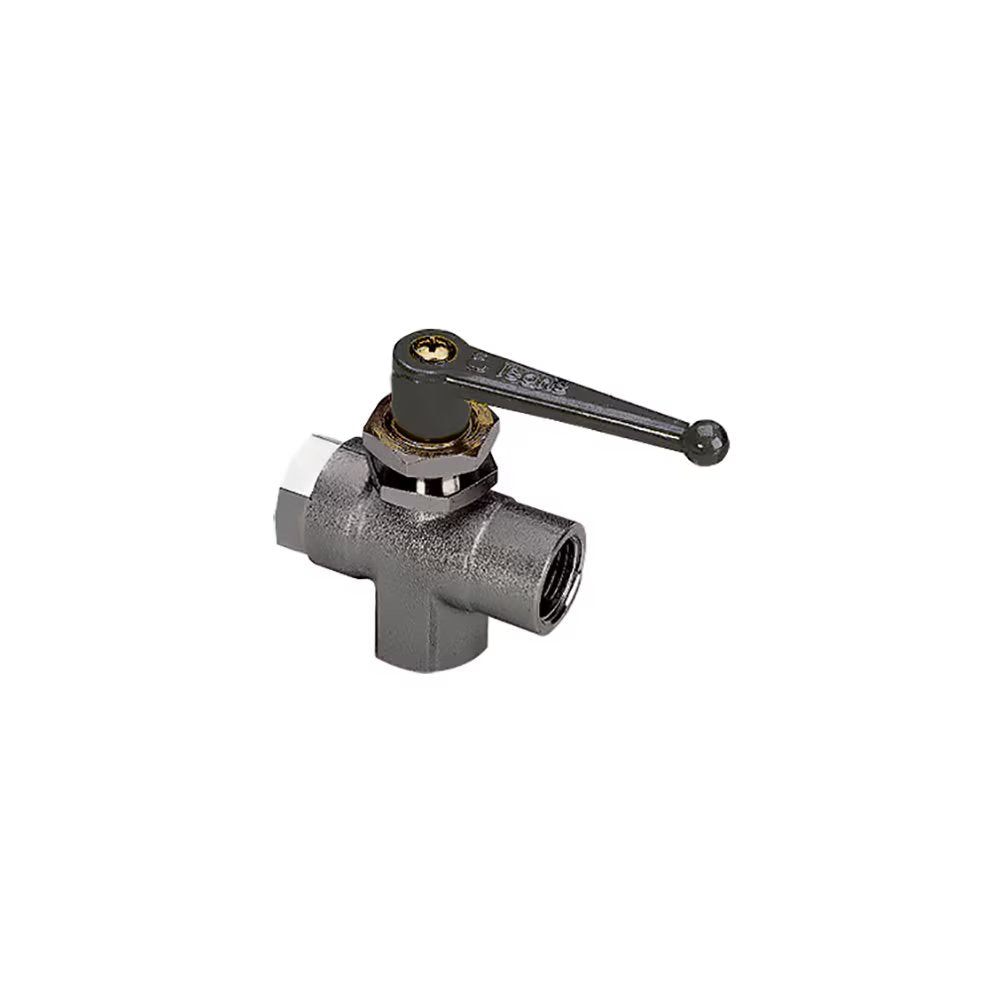

0448 12 21 by Parker | Legris Panel-Mountable Ball Valve | 1/2" Female BSPP Thread | 24 mm Hex (F) | 27 mm Hex (F1) | 90° Elbow | Nickel-Plated Brass | Pack of 2

0448 12 21 by Parker | Legris Panel-Mountable Ball Valve | 1/2" Female BSPP Thread | 24 mm Hex (F) | 27 mm Hex (F1) | 90° Elbow | Nickel-Plated Brass | Pack of 2

Sale price$163.30

by Parker Hannifin
Universal Series:0448 3/3 Panel-Mountable Right-Angled Ball Valve, Female BSPP Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $153.50
30–59 $138.81
60+ $122.48
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0448 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/2in Female BSPP
  • 1/2in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E F F1 H H1 H2 H3 J L L1 M T Kg
0448 04 10* 4 mm 1/8" 8 mm 14 mm 22 mm 37 mm 14 mm 18 mm 12 mm 14 mm 44 mm 25 mm 48 mm 16.5 mm .126 Kg
0448 06 13 6 mm 1/4" 12 mm 19 mm 24 mm 45 mm 19 mm 24 mm 24 mm 14 mm 53 mm 28 mm 48 mm 20.5 mm .230 Kg
0448 09 17 9 mm 3/8" 12 mm 24 mm 27 mm 50 mm 21 mm 27 mm 21 mm 25 mm 59 mm 31 mm 69 mm 20.5 mm .328 Kg
0448 12 21 12 mm 1/2" 15 mm 24 mm 27 mm 51 mm 23 mm 33 mm 21 mm 29 mm 67 mm 34 mm 69 mm 20.5 mm .392 Kg

Maximum working pressure: 20 bar
*For G1/8 version: maximum panel thickness = 3 mm
