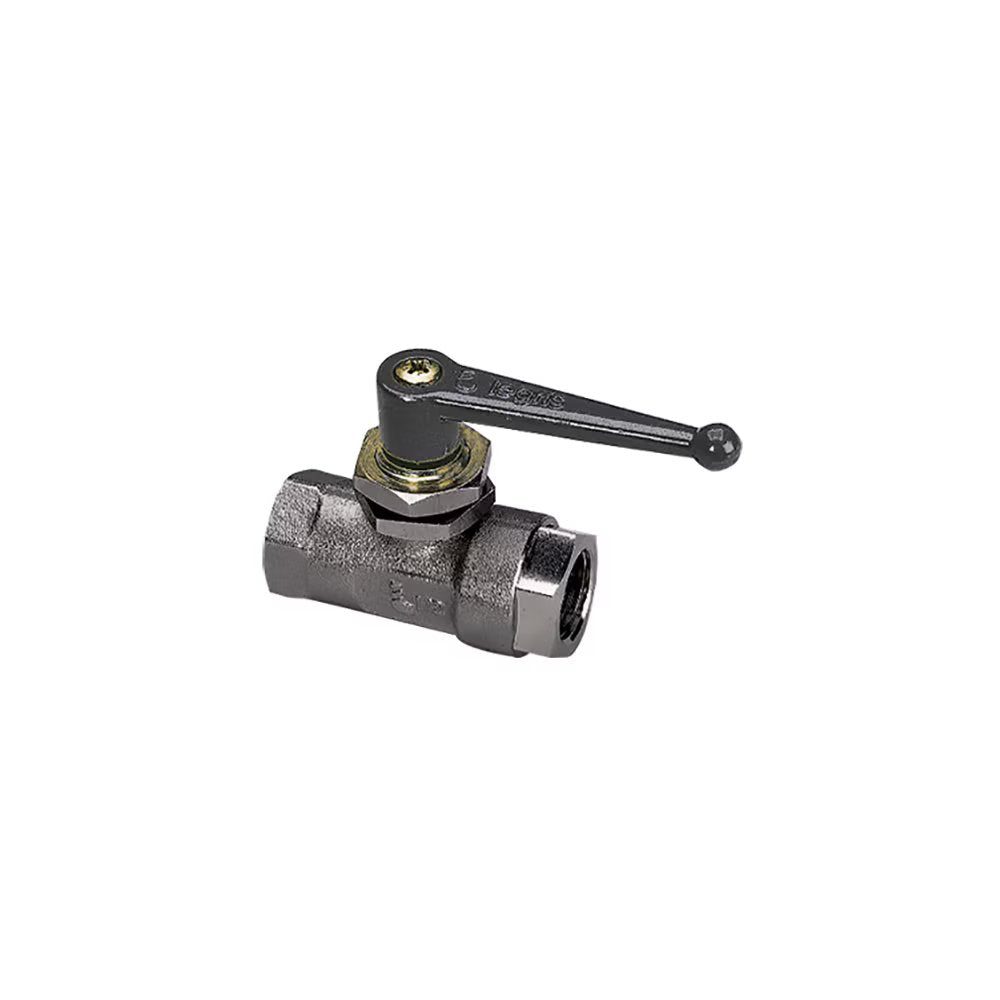

0446 13 21 by Parker | Legris In-Line Panel-Mountable Ball Valve | 1/2" Female BSPP Thread | 27 mm Hex (F) | 24 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2

0446 13 21 by Parker | Legris In-Line Panel-Mountable Ball Valve | 1/2" Female BSPP Thread | 27 mm Hex (F) | 24 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2

Sale price$181.76

by Parker Hannifin
Universal Series:0446 2/2 In-Line Panel-Mountable Ball Valve, Female BSPP Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $170.85
30–59 $154.50
60+ $136.32
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0446 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female BSPP
  • 1/2in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E F F1 H H1 H2 L L1 M T Kg
0446 04 10* 4 mm 1/8" 8 mm 14 mm 22 mm 37 mm 14 mm 12 mm 44 mm 25 mm 48 mm 16.5 mm .112 Kg
0446 07 13 7 mm 1/4" 12 mm 19 mm 24 mm 45 mm 19 mm 14 mm 53 mm 28 mm 48 mm 20.5 mm .188 Kg
0446 10 17 10 mm 3/8" 12 mm 24 mm 24 mm 50 mm 21 mm 21 mm 59 mm 31 mm 69 mm 20.5 mm .294 Kg
0446 13 21 13 mm 1/2" 15 mm 27 mm 24 mm 51 mm 23 mm 21 mm 67 mm 34 mm 69 mm 20.5 mm .338 Kg

Maximum working pressure: 20 bar
*For G1/8 version, maximum panel thickness = 3 mm
