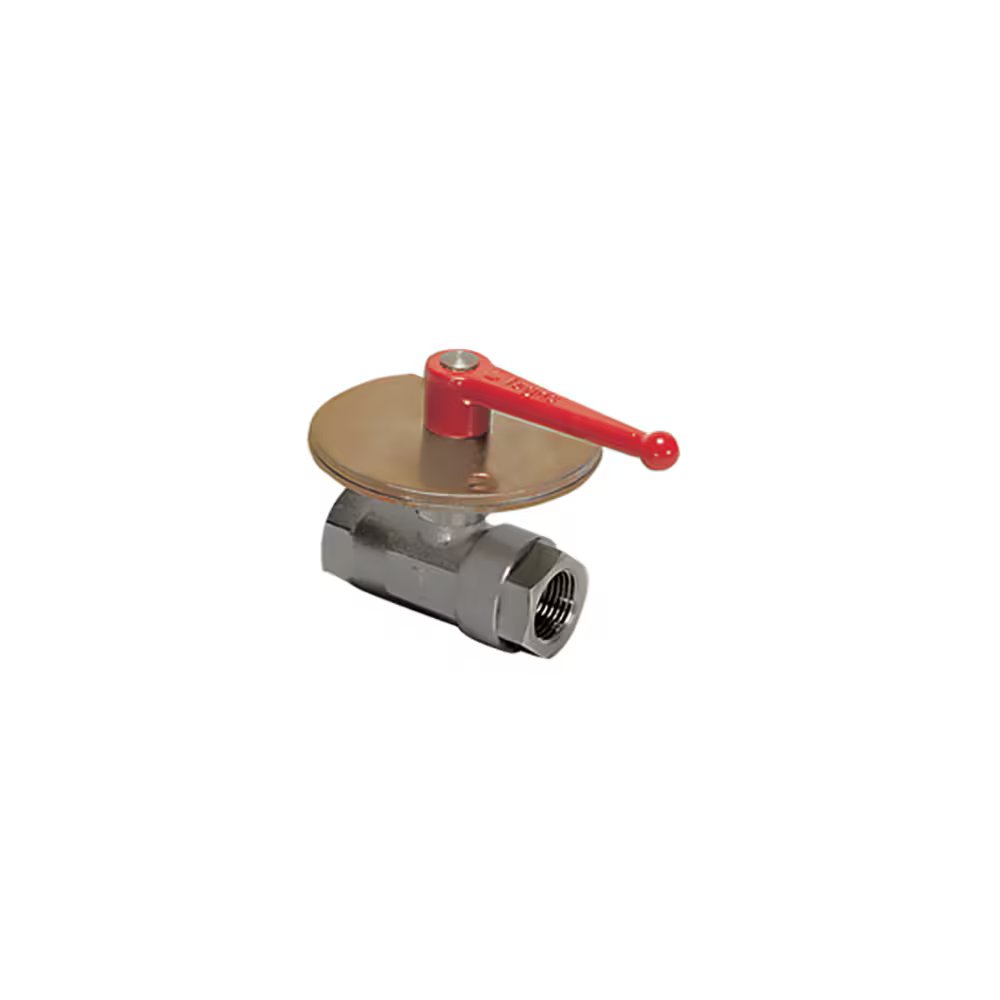

0439 23 34 by Parker | Legris In-Line Lockable Ball Valve | 1" Female BSPP Thread | 41 mm Hex (F) | 46 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2
by Parker Hannifin
Universal Series:0439 3/2 In-line Vented Lockable Ball Valve, Female BSPP Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $595.21 |
| 15–29 | $538.22 |
| 30+ | $474.90 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Diameter Nominal (DN) | C | E | F | F1 | H | H1 | L | L1 | M | T | Kg |
| 0439 04 10 | 4 mm | 1/8" | 8 mm | 19 mm | 19 mm | 59 mm | 54 mm | 51 mm | 27 mm | 69 mm | 2 mm | .410 Kg |
| 0439 07 13 | 7 mm | 1/4" | 12 mm | 24 mm | 24 mm | 60 mm | 55 mm | 55 mm | 59 mm | 31 mm | 69 mm | .480 Kg |
| 0439 10 17 | 10 mm | 3/8" | 12 mm | 24 mm | 24 mm | 60 mm | 55 mm | 59 mm | 31 mm | 69 mm | 2 mm | .460 Kg |
| 0439 13 21 | 13 mm | 1/2" | 15 mm | 27 mm | 27 mm | 62 mm | 57 mm | 67 mm | 34 mm | 69 mm | 2 mm | .514 Kg |
| 0439 18 27 | 18 mm | 3/4" | 16.5 mm | 32 mm | 38 mm | 66 mm | 56 mm | 80 mm | 39 mm | 108 mm | 2.5 mm | .810 Kg |
| 0439 23 34 | 23 mm | 1" | 19 mm | 41 mm | 46 mm | 70 mm | 59 mm | 94 mm | 47 mm | 108 mm | 3 mm | 1.185 Kg |
Maximum working pressure: 40 bar
Handle is not removable, locking plates are zinc-plated steel.
