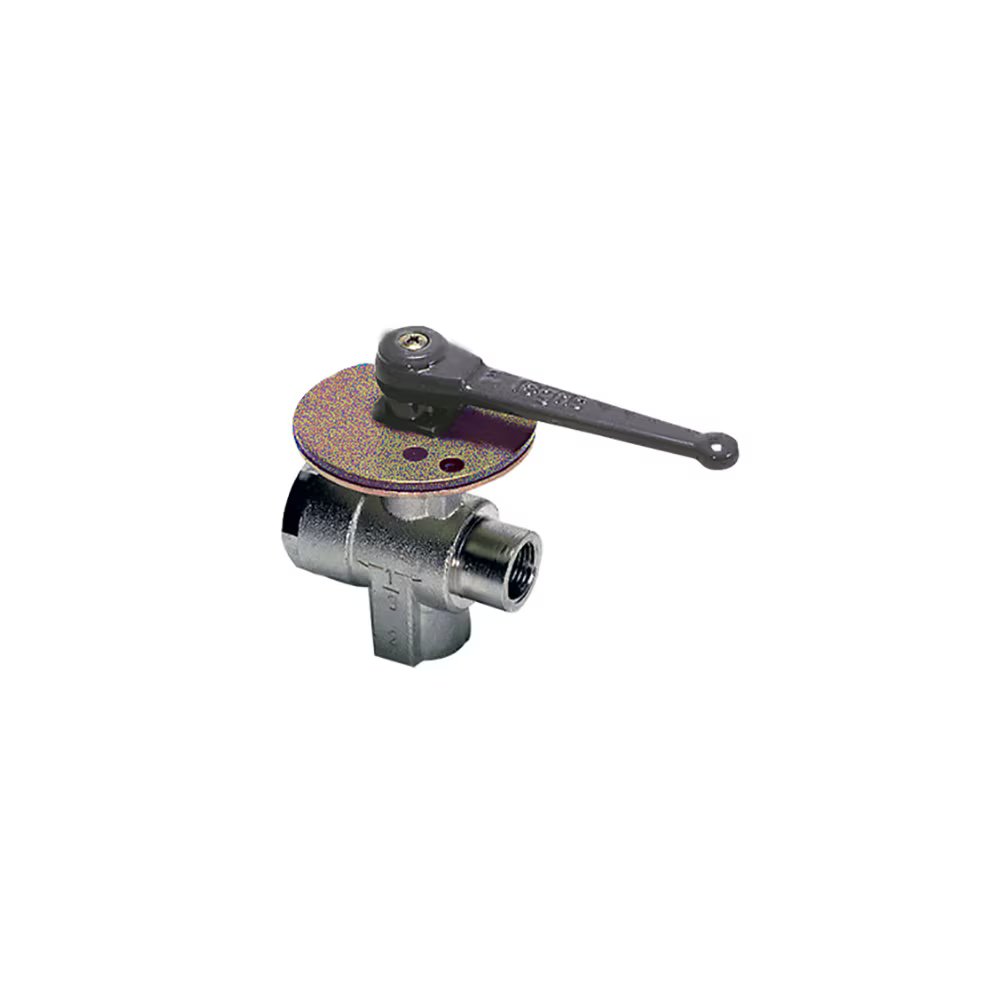

0438 09 17 by Parker | Legris 3-Point Lockable Ball Valve | 3/8" Female BSPP Thread | 38 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 2
by Parker Hannifin
Universal Series:0438 3/2 Right-Angled 3-Point Lockable Ball Valve, Female BSPP Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $371.43 |
| 15–29 | $335.87 |
| 30+ | $296.36 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Diameter Nominal (DN) | C | E | F | H | H1 | J | L | L1 | Kg |
| 0438 09 17 | 9 mm | 3/8" | 12 mm | 38 mm | 76 mm | 34 mm | 39 mm | 73 mm | 35 mm | .970 Kg |
| 0438 12 21 | 12 mm | 1/2" | 15 mm | 38 mm | 76 mm | 37 mm | 39 mm | 78 mm | 38 mm | .947 Kg |
| 0438 18 27 | 18 mm | 3/4" | 16.5 mm | 38 mm | 76 mm | 40 mm | 39 mm | 80 mm | 40 mm | .905 Kg |
| 0438 23 34 | 23 mm | 1" | 19 mm | 46 mm | 80 mm | 47 mm | 48 mm | 94 mm | 47 mm | 1.295 Kg |
Maximum working pressure: 20 bar
Fixed plate: zinc-plated steel, mobile plate: zinc-plated steel
Removable handle: where the handle is obstructed in its movement, it can be refitted opposite
the original position.
