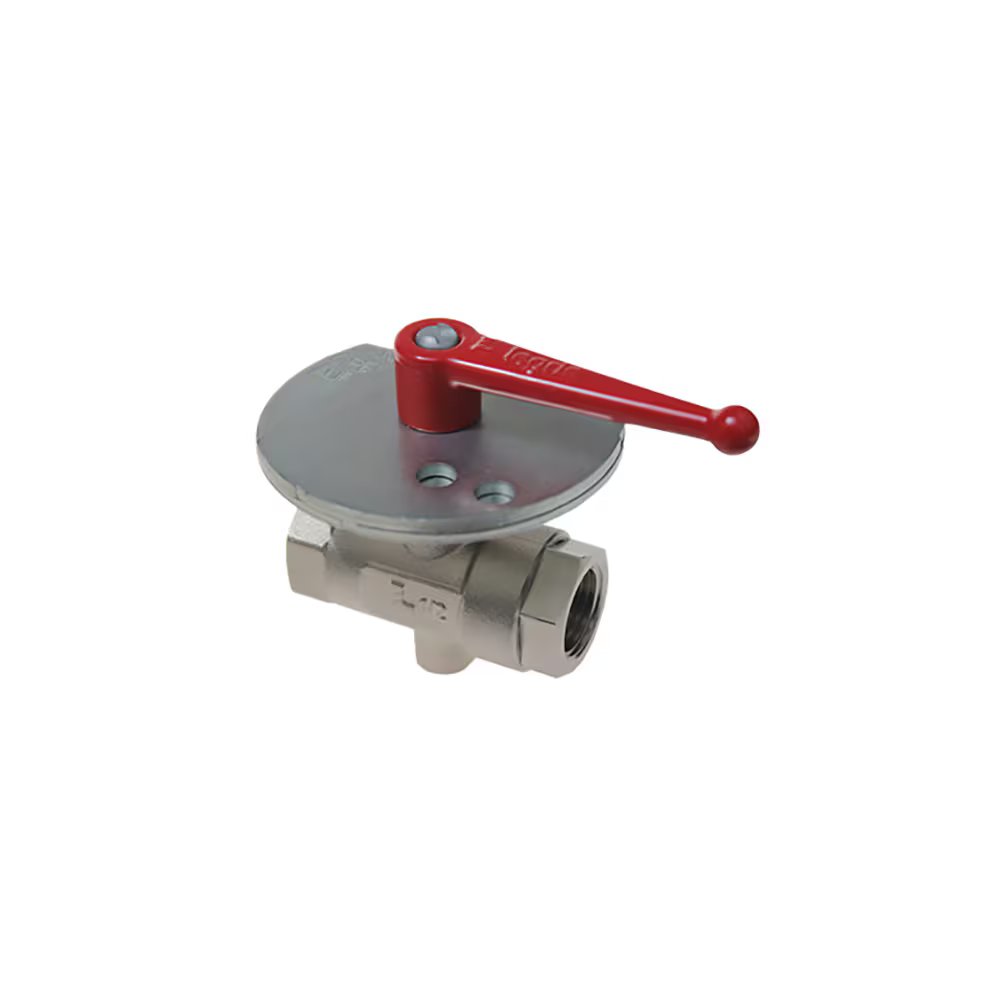

0436 23 34 by Parker | Legris In-Line 3-Point Lockable Ball Valve w/ Exhaust Port | 1/4" Female BSPP Thread x 1" Female BSPP Thread | 41 mm Hex (F) | 46 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2

0436 23 34 by Parker | Legris In-Line 3-Point Lockable Ball Valve w/ Exhaust Port | 1/4" Female BSPP Thread x 1" Female BSPP Thread | 41 mm Hex (F) | 46 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2

Sale price$639.06

by Parker Hannifin
Universal Series:0436 3/2 In-Line 3-Point Lockable Ball Valve with Threaded Exhaust Port, Female BSPP and Metric Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $600.72
15–29 $543.20
30+ $479.30
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0436 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female BSPP
  • 1in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C1 C E F F1 H H1 L L1 M Kg
0436 18 27 18 mm 1/4" 3/4" 16.5 mm 32 mm 38 mm 69.5 mm 33 mm 80 mm 39.5 mm 108 mm .850 Kg
0436 23 34 23 mm 1/4" 1" 19 mm 41 mm 46 mm 73.5 mm 47.5 mm 94.5 mm 47.5 mm 108.5 mm 1.215 Kg

Maximum working pressure: 40 bar
Handle is not removable.
Fixed and mobile plates: zinc-plated steel
