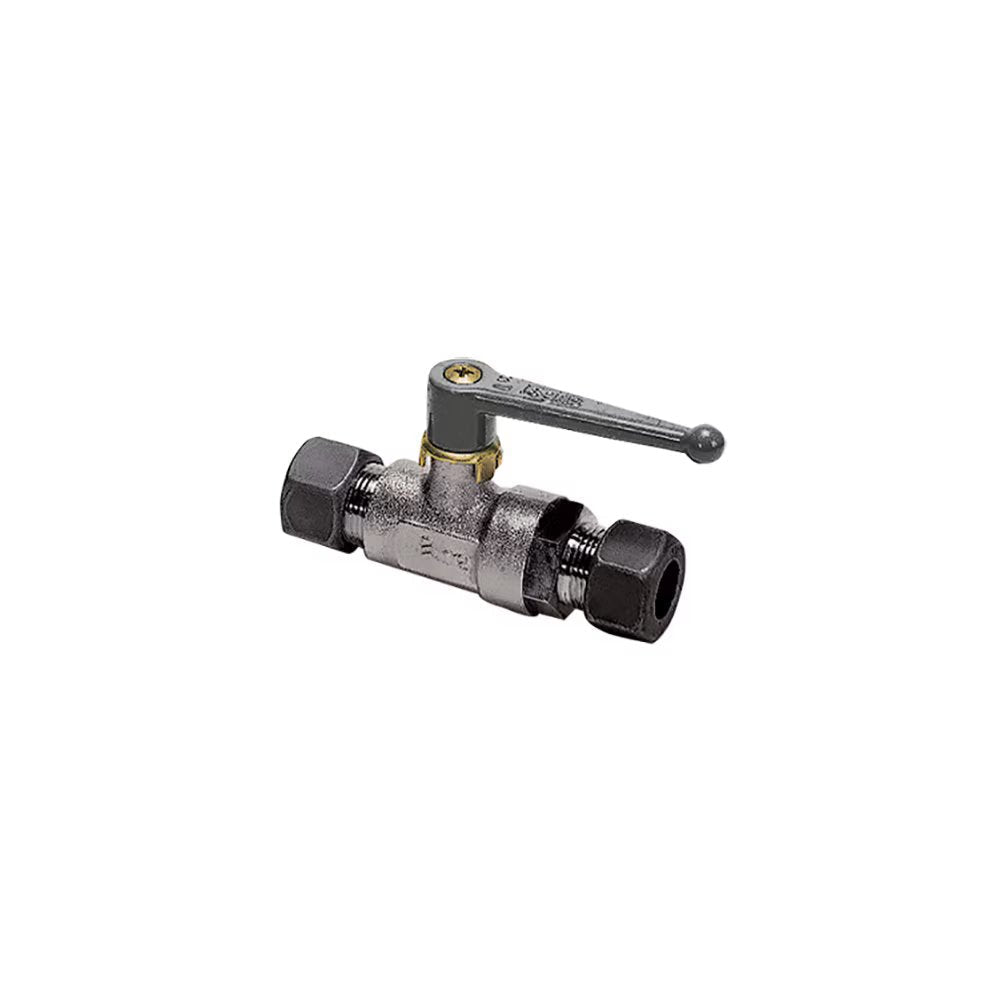

0411 06 08 by Parker | Legris In-Line Ball Valve | 8 mm Tube Size | 17 mm Hex (H) | 19 mm Hex (H1) | 77 mm Valve Length | Straight | Nickel-Plated Brass | Pack of 2

0411 06 08 by Parker | Legris In-Line Ball Valve | 8 mm Tube Size | 17 mm Hex (H) | 19 mm Hex (H1) | 77 mm Valve Length | Straight | Nickel-Plated Brass | Pack of 2

Sale price$120.86

Package Quantity: 2 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) ØD F F1 H H1 J L L1 M Kg
0411 04 06 4 mm 6 mm 14 mm 19 mm 38 mm 31 mm 19 mm 76 mm 30 mm 48 mm .173 Kg
0411 06 08 6 mm 8 mm 17 mm 19 mm 38 mm 31 mm 19 mm 77 mm 30 mm 48 mm .195 Kg
0411 07 10 7 mm 10 mm 19 mm 19 mm 38 mm 31 mm 19 mm 78 mm 31 mm 48 mm .210 Kg
0411 10 12 10 mm 12 mm 22 mm 24 mm 45 mm 43 mm 24 mm 85 mm 36 mm 69 mm .310 Kg

Maximum working pressure: 40 bar

Additional Product Data:

Series:
  • 0411 Series
Shape:

Straight

Ends Configuration:
  • 8mm Tube Compression
  • 8mm Tube Compression
  • Some Ends Match

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
