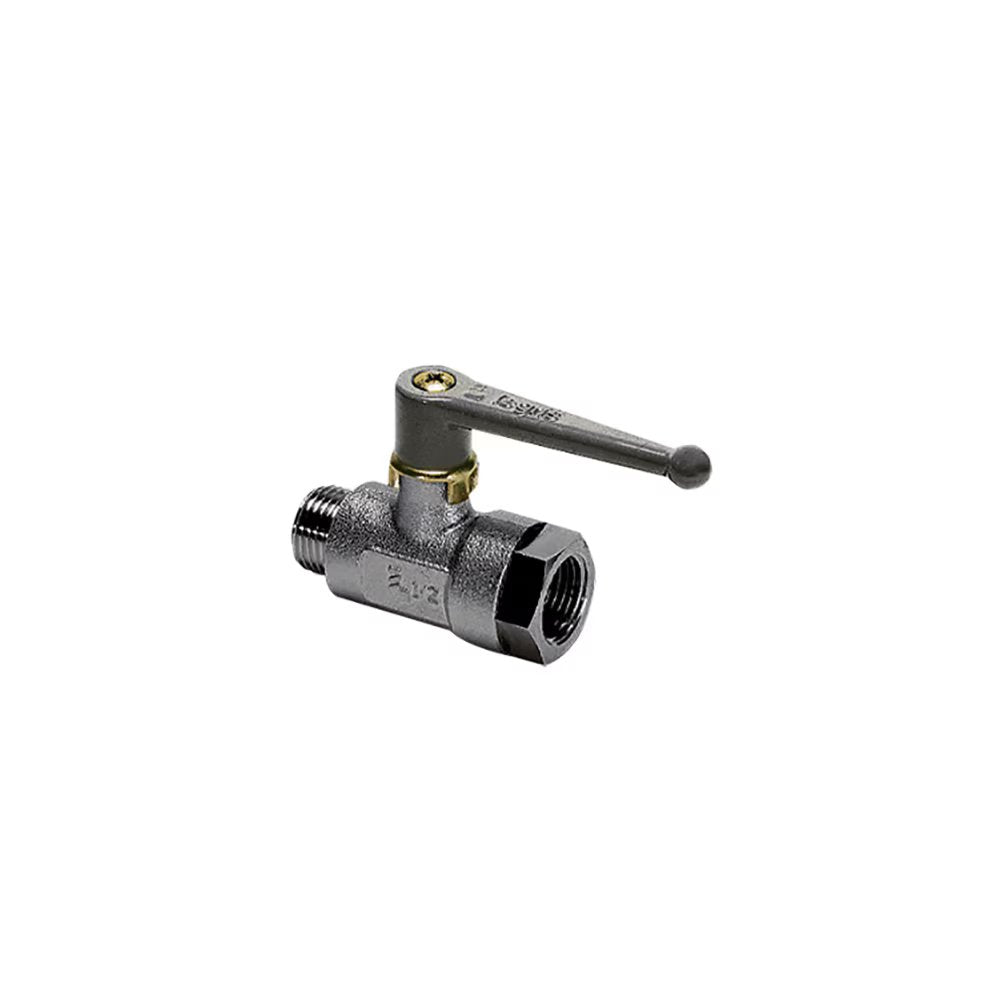

0401 10 17 by Parker | Legris In-Line Ball Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 24mm Hex | 58mm Valve Length | Straight | Nickel-Plated Brass | Pack of 5

0401 10 17 by Parker | Legris In-Line Ball Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 24mm Hex | 58mm Valve Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$236.59

by Parker Hannifin
Universal Series:0401 2/2 In-Line Ball Valve, Male/Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $222.39
30–59 $201.10
60+ $177.44
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0401 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male BSPP
  • 3/8in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E E1 F H H1 J L L1 M Kg
0401 04 10 4 mm 1/8" 8 mm 7 mm 14 mm 35 mm 29 mm 14 mm 45 mm 25 mm 48 mm .094 Kg
0401 05 10 5 mm 1/8" 8 mm 7 mm 19 mm 38 mm 31 mm 19 mm 51 mm 27 mm 48 mm .160 Kg
0401 07 13 7 mm 1/4" 12 mm 9 mm 19 mm 38 mm 31 mm 19 mm 52 mm 28 mm 48 mm .150 Kg
0401 10 17 10 mm 3/8" 12 mm 11 mm 24 mm 45 mm 43 mm 24 mm 58 mm 31 mm 69 mm .234 Kg
0401 13 21 13 mm 1/2" 15 mm 12 mm 27 mm 47 mm 44 mm 27 mm 66 mm 34 mm 69 mm .286 Kg
0401 18 27 18 mm 3/4" 16.5 mm 12 mm 38 mm 63 mm 54 mm 39 mm 79 mm 39 mm 108 mm .652 Kg

*Models with EC marking
Maximum working pressure: 40 bar
