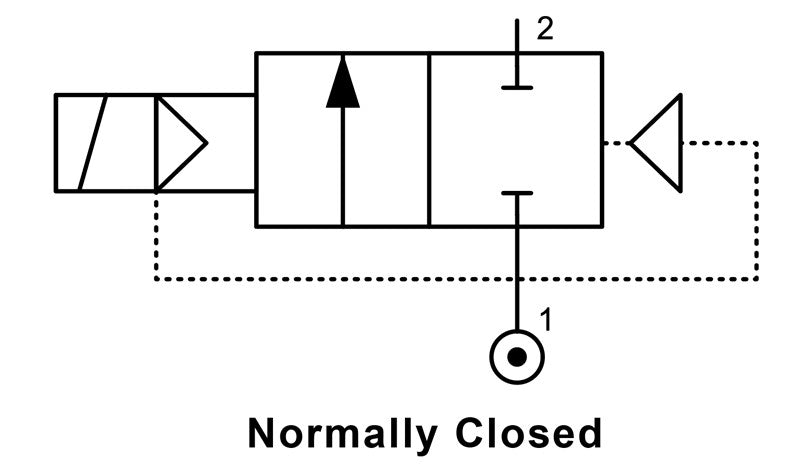

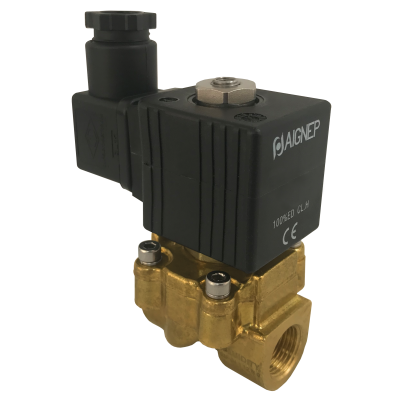

03F07118V0N10301 by AIGNEP | Fluidity Series | Fluidity 03F Hung Diaphragm Solenoid Valve | 2/2 Normally Closed | 3/4" NPTF | 18 mm | 12V DC | FKM Seal
03F07118V0N10301 by AIGNEP | Fluidity Series | Fluidity 03F Hung Diaphragm Solenoid Valve | 2/2 Normally Closed | 3/4" NPTF | 18 mm | 12V DC | FKM Seal

03F07118V0N10301 by AIGNEP | Fluidity Series | Fluidity 03F Hung Diaphragm Solenoid Valve | 2/2 Normally Closed | 3/4" NPTF | 18 mm | 12V DC | FKM Seal

Sale price$96.29
Buy More, Save More!
Quantity Price Each
5–19 $90.51
20–59 $81.85
60+ $72.22
Discounts applied in cart/checkout.

Product Data:

Series:
  • Fluidity Series
Ends Configuration:
  • 3/4in Female NPTF
  • 3/4in Female NPTF
  • Some Ends Match
Material(s):
  • Plastic
General features - 03F: • Recommended horizontal mounting position
• Operator kit Ø 13 mm
• ATEX II 2G/D Ex h certification
• Coils: Class H
 Applications: • Water, Neutral liquids, Oils
• Car washes, Washing systems
• Industrial processes, Tank draining
• Air and Inert gases
• Vacuum, Packaging
• Oxygen, Steam, Medical, Sterilizers
Temperature Range: 14°F +284°F (-10°C +140°C) Materials and Components: • Body: Brass CW617N
• Seals: NBR (Serie C) - EPDM (Serie D) - FKM (Serie E)
• Armature tube: Stainless steel
• Fixed and mobile core: Stainless steel AISI 430FR
• Springs: Stainless steel
Part Number
(12V DC)
(12V AC)		 Part Number
(24V DC)
(12V AC)		 Part Number
(110V AC) 		Sealing Material Temperature Port Size Ø Orifice Viscosity (cSt) Kv (m³/h) OPD - DC (14 W) OPD - DC (22 W) OPD - AC (14 VA) OPD - AC (21 VA) OPD - AC (31 VA) Coil Size
03F03110E0N10301
N/A		 03F03110E0N20301
N/A		 - EPDM 14°F +284°F (-10°C +140°C) 1/4" 10 mm 25 cSt 1.58 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 30 mm
03F03110N0N10301
N/A		 03F03110N0N20301
N/A		 - NBR 14°F +194°F (-10°C +90°C) 1/4" 10 mm 25 cSt 1.58 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 30 mm
03F03110V0N10301
N/A		 03F03110V0N20301
N/A		 - FKM 14°F +284°F (-10°C +140°C) 1/4" 10 mm 25 cSt 1.58 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 36 mm
03F04112E0N10301
N/A		 03F04112E0N20301
N/A		 - EPDM 14°F +284°F (-10°C +140°C) 3/8" 14 mm 25 cSt 2.73 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 30 mm
03F04112N0N10301
N/A		 03F04112N0N20301
N/A		 - NBR 14°F +194°F (-10°C +90°C) 3/8" 14 mm 25 cSt 2.73 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 30 mm
03F04112V0N10301
N/A		 03F04112V0N20301
N/A		 - FKM 14°F +284°F (-10°C +140°C) 3/8" 14 mm 25 cSt 2.73 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 36 mm
03F05112E0N10301
N/A		 03F05112E0N20301
N/A		 - EPDM 14°F +284°F (-10°C +140°C) 1/2" 14 mm 25 cSt 2.75 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 30 mm
03F05112N0N10301
N/A		 03F05112N0N20301
N/A		 - NBR 14°F +194°F (-10°C +90°C) 1/2" 14 mm 25 cSt 2.75 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 30 mm
03F05112V0N10301
N/A		 03F05112V0N20301
N/A		 - FKM 14°F +284°F (-10°C +140°C) 1/2" 14 mm 25 cSt 2.75 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 36 mm
03F07118E0N10301
N/A		 03F07118E0N20301
03F07118E0N30901 		03F07118E0N40901 & 03F07118E0N50901 EPDM 14°F +284°F (-10°C +140°C) 3/4" 18 mm 25 cSt 4.08 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 30 mm
03F07118N0N10301
N/A		 03F07118N0N20301
03F07118N0N30901 		03F07118N0N40901 & 03F07118N0N50901 NBR 14°F +194°F (-10°C +90°C) 3/4" 18 mm 25 cSt 4.08 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 30 mm
03F07118V0N10301
N/A		 03F07118V0N20301
03F07118V0N30901 		03F07118V0N40901 & 03F07118V0N50901 FKM 14°F +284°F (-10°C +140°C) 3/4" 18 mm 25 cSt 4.08 m³/h 0 - 6 bar 0 - 16 bar 0 - 18 bar 0 - 20 bar 0 - 25 bar 36 mm
03F09125E0N10301
N/A		 03F09125E0N20301
03F09125E0N30901 		03F09125E0N40901 & 03F09125E0N50901 EPDM 14°F +284°F (-10°C +140°C) 1" 25 mm 25 cSt 6.63 m³/h 0 - 4 bar 0 - 12 bar 0 - 16 bar 0 - 20 bar 0 - 25 bar 30 mm
03F09125N0N10301
N/A		 03F09125N0N20301
03F09125N0N30901 		03F09125N0N40901 & 03F09125N0N50901 NBR 14°F +194°F (-10°C +90°C) 1" 25 mm 25 cSt 6.63 m³/h 0 - 4 bar 0 - 12 bar 0 - 16 bar 0 - 20 bar 0 - 25 bar 30 mm
03F09125V0N10301
N/A		 03F09125V0N20301
03F09125V0N30901 		03F09125V0N40901 & 03F09125V0N50901 FKM 14°F +284°F (-10°C +140°C) 1" 18 mm 25 cSt 6.63 m³/h 0 - 4 bar 0 - 12 bar 0 - 16 bar 0 - 20 bar 0 - 25 bar 36 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
