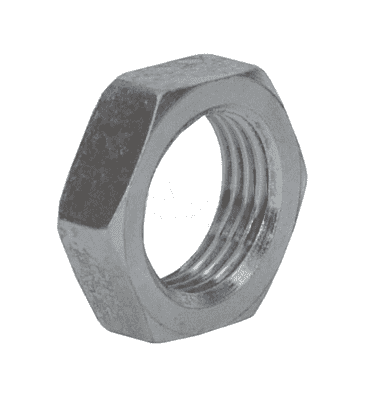

0306-12 Dixon Valve Zinc Plated Steel Bulkhead Lock Nut - 1-1/16"-12 Bulkhead Lock Nut - 3/4" Tube OD

0306-12 Dixon Valve Zinc Plated Steel Bulkhead Lock Nut - 1-1/16"-12 Bulkhead Lock Nut - 3/4" Tube OD

Minimum Order Quantity: 5 Units

Sale price$2.71

SAE / JIC Fittings - Bulkhead Lock Nuts - Zinc Plated Steel
Buy More, Save More!
Quantity Price Each
20–39 $2.55
40–79 $2.30
80+ $2.03
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • Zink-Plated Steel
Features:
  • Reference SAE 070118.
Part Number Bulkhead Lock Nut Tube OD Working Pressure Weight (Lbs.)
0306-4 7/16"-20 1/4" 5000 PSI 0.0180
0306-6 9/16"-18 3/8" 5000 PSI 0.0200
0306-8 3/4"-16 1/2" 4500 PSI 0.0400
0306-10 7/8"-14 5/8" 3500 PSI 0.0600
0306-12 1-1/16"-12 3/4" 3500 PSI 0.1000
0306-16 1-5/16"-12 1" 3000 PSI 0.1130

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
