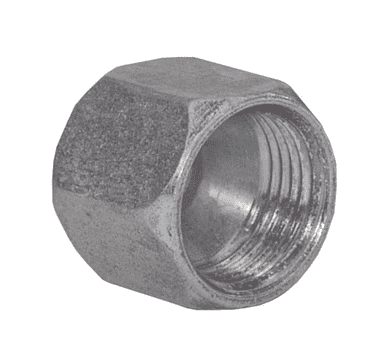

0304C-10 Dixon Valve Zinc Plated Steel JIC Cap - 7/8"-14 JIC Cap Nut - 5/8" Tube OD

0304C-10 Dixon Valve Zinc Plated Steel JIC Cap - 7/8"-14 JIC Cap Nut - 5/8" Tube OD

Minimum Order Quantity: 5 Units

Sale price$2.82

SAE / JIC Fittings - JIC Caps - Zinc Plated Steel
Buy More, Save More!
Quantity Price Each
20–39 $2.65
40–79 $2.40
80+ $2.12
Discounts applied in cart/checkout.

Product Data:

Ends Configuration:
  • 5/8in Female JIC
Material(s):
  • Zink-Plated Steel
Features:
  • Reference SAE 070112.
Part Number JIC Cap Nut Tube OD Working Pressure Weight (Lbs.)
0304C-2 5/16"-24 1/8" 5000 PSI 0.0010
0304C-4 7/16"-20 1/4" 5000 PSI 0.0200
0304C-6 9/16"-18 3/8" 5000 PSI 0.0400
0304C-8 3/4"-16 1/2" 4500 PSI 0.0800
0304C-10 7/8"-14 5/8" 3500 PSI 0.1100
0304C-12 1-1/16"-12 3/4" 3500 PSI 0.1950
0304C-16 1-5/16"-12 1" 3000 PSI 0.2700
0304C-20 1-5/8"-12 1-1/4" 2500 PSI 0.5930
0304C-24 1-7/8"-12 1-1/2" 2000 PSI 0.7820
0304C-32 2-1/2"-12 2" 1500 PSI 1.3070

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
