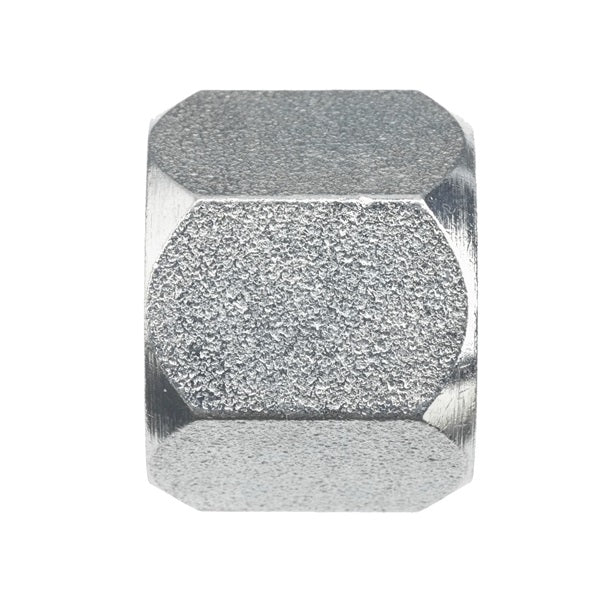

0304-C-04 by Brennan Inc. | -04 JIC Cap Nut | Steel
Minimum Order Quantity: 10 Units
Brennan Inc.
Tube Fittings & Adapters: 0304-C - JIC Cap Nut
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.70 |
| 40–79 | $1.54 |
| 80+ | $1.36 |
Discounts applied in cart/checkout.
0304-C-04 by Brennan Inc. | -04 JIC Cap Nut | Steel
Sale price$1.81
Product Data:
Ends Configuration:
Material(s):
 |
|||||
|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 Thread | L Length | C Hex |
| 0304-C-02 | Steel | 1/8" | 5/16-24" | 0.500" | 0.375" |
| 0304-C-03 | Steel | 3/16" | 3/8-24" | 0.562" | 0.438" |
| 0304-C-04 | Steel | 1/4" | 7/16-20" | 0.594" | 0.562" |
| 0304-C-05 | Steel | 5/16" | 1/2-20" | 0.609" | 0.625" |
| 0304-C-06 | Steel | 3/8" | 9/16-18" | 0.625" | 0.687" |
| 0304-C-08 | Steel | 1/2" | 3/4-16" | 0.750" | 0.875" |
| 0304-C-10 | Steel | 5/8" | 7/8-14" | 0.844" | 1.000" |
| 0304-C-12 | Steel | 3/4" | 1-1/16-12" | 0.906" | 1.250" |
| 0304-C-14 | Steel | 7/8" | 1-3/16-12" | 0.969" | 1.375" |
| 0304-C-16 | Steel | 1" | 1-5/16-12" | 1.016" | 1.500" |
| 0304-C-20 | Steel | 1-1/4" | 1-5/8-12" | 1.062" | 2.000" |
| 0304-C-24 | Steel | 1-1/2" | 1-7/8-12" | 1.188" | 2.250" |
| 0304-C-32 | Steel | 2" | 2-1/2-12" | 1.440" | 2.880" |
| 0304-C-40 | Steel | 2-1/2" | 3-12" | 1.220" | 3.500" |
| 0304-C-02-B | Brass | 1/8" | 5/16-24" | 0.500" | 0.375" |
| 0304-C-04-B | Brass | 1/4" | 7/16-20" | 0.594" | 0.562" |
| 0304-C-06-B | Brass | 3/8" | 9/16-18" | 0.625" | 0.687" |
| 0304-C-08-B | Brass | 1/2" | 3/4-16" | 0.750" | 0.875" |
| 0304-C-12-B | Brass | 3/4" | 1-1/16-12" | 0.906" | 1.250" |
| 0304-C-16-B | Brass | 1" | 1-5/16-12" | 1.016" | 1.500" |
| 0304-C-20-B | Brass | 1-1/4" | 1-5/8-12" | 1.062" | 2.000" |
| 0304-C-24-B | Brass | 1-1/2" | 1-7/8-12" | 1.188" | 2.250" |
| 0304-C-02-SS | Stainless Steel | 1/8" | 5/16-24" | 0.500" | 0.375" |
| 0304-C-03-SS | Stainless Steel | 3/16" | 3/8-24" | 0.562" | 0.438" |
| 0304-C-04-SS | Stainless Steel | 1/4" | 7/16-20" | 0.594" | 0.562" |
| 0304-C-05-SS | Stainless Steel | 5/16" | 1/2-20" | 0.609" | 0.625" |
| 0304-C-06-SS | Stainless Steel | 3/8" | 9/16-18" | 0.625" | 0.687" |
| 0304-C-08-SS | Stainless Steel | 1/2" | 3/4-16" | 0.750" | 0.875" |
| 0304-C-10-SS | Stainless Steel | 5/8" | 7/8-14" | 0.844" | 1.000" |
| 0304-C-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 0.906" | 1.250" |
| 0304-C-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1.016" | 1.500" |
| 0304-C-20-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1.062" | 2.000" |
| 0304-C-24-SS | Stainless Steel | 1-1/2" | 1-7/8-12" | 1.188" | 2.250" |
