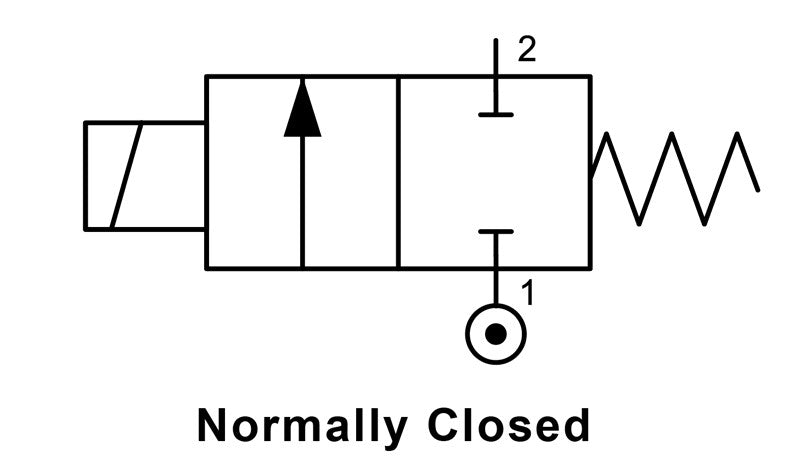

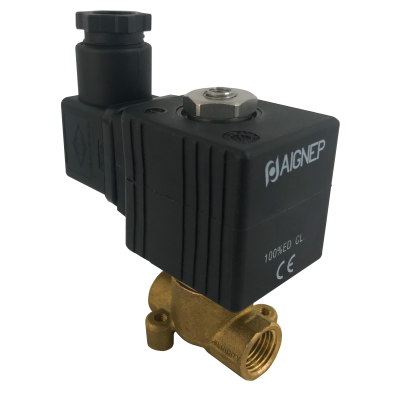

02F03102V0N10201 by AIGNEP | Fluidity Series | Fluidity 02F Direct | Acting Solenoid Valve | 2/2 Normally Closed | 1/4" NPTF | 2 mm | 12V DC | FKM Seal
02F03102V0N10201 by AIGNEP | Fluidity Series | Fluidity 02F Direct | Acting Solenoid Valve | 2/2 Normally Closed | 1/4" NPTF | 2 mm | 12V DC | FKM Seal

02F03102V0N10201 by AIGNEP | Fluidity Series | Fluidity 02F Direct | Acting Solenoid Valve | 2/2 Normally Closed | 1/4" NPTF | 2 mm | 12V DC | FKM Seal

Sale price$54.86
Buy More, Save More!
Quantity Price Each
10–39 $51.57
40–79 $46.63
80+ $41.15
Discounts applied in cart/checkout.

Product Data:

Series:
  • Fluidity Series
Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Female NPTF
  • Some Ends Match
Material(s):
  • Plastic
General features - 02F: • Operator kit Ø 13 mm
• ATEX II 2G/D Ex h certification
• Coils: Class H
 Applications: • Water, Neutral liquids, Oils
• Car washes, Washing systems
• Industrial processes, Tank draining
• Air and Inert gases
• Vacuum, Packaging
• Oxygen, Steam, Medical, Sterilizers
Temperature Range: 14°F + 284°F (- 10 °C +140°C) Materials and Components: • Body: Brass CW617N
• Seals: NBR (Serie C) - EPDM (Serie D) - FKM (Serie E)
• Armature tube: Stainless steel
• Fixed and mobile core: Stainless steel AISI 430FR
• Springs: Stainless steel
Part Number
(12V DC) 		Part Number
(24V DC)
(12V AC)		 Part Number
(110V AC) 		Part Number
(220V AC) 		Sealing Material Temperature Port Size Ø Orifice Viscosity (cSt) Kv (m³/h) OPD - DC (8 W) OPD - DC (14 W) OPD - DC (22 W) OPD - AC (14 VA) OPD - AC (21 VA) OPD - AC (31 VA)
02F03102E0N10201 02F03102E0N20201
02F03102E0N30901 		02F03102E0N40901 02F03102E0N50901 EPDM 14°F + 284°F (-10°C +140°C) 1/4" 2 mm 37 cSt 0.10 m³/h 0 - 35 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar
02F03102N0N10201 02F03102N0N20201
02F03102N0N30901 		02F03102N0N40901 02F03102N0N50901 NBR 14°F + 194°F (-10°C +90°C) 1/4" 2 mm 37 cSt 0.10 m³/h 0 - 35 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar
02F03102V0N10201 02F03102V0N20201
02F03102V0N30901 		02F03102V0N40901 02F03102V0N50901 FKM 14°F + 284°F (-10°C +140°C) 1/4" 2 mm 37 cSt 0.10 m³/h 0 - 35 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar 0 - 50 bar

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
