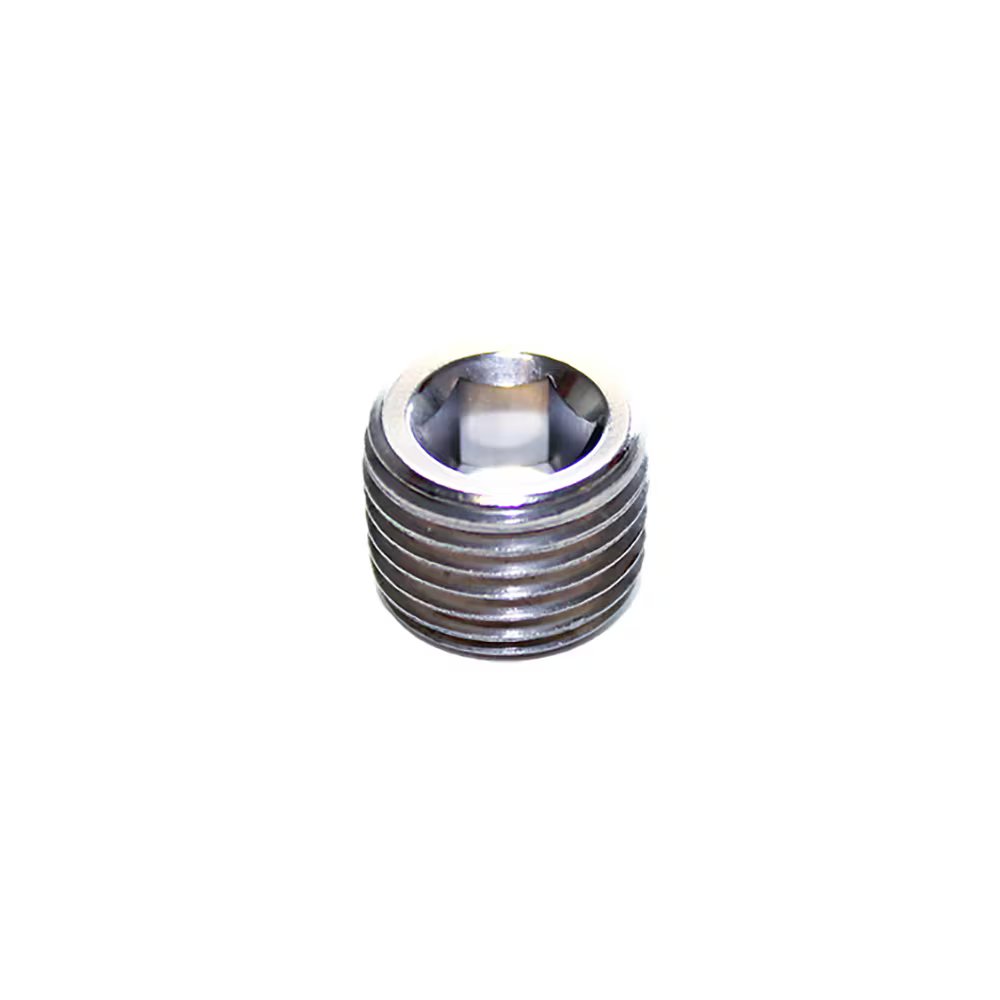

0285 27 00 by Parker | Legris Internal Hex Head Plug | 3/4" Male BSPT Thread | 12 mm Hex | 12 mm Length | 316L Stainless Steel
by Parker Hannifin
Stainless Steel Plugs:0285 Internal Hexagon Head Plug, Male BSPT Thread
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $59.75 |
| 40–79 | $54.03 |
| 80+ | $47.67 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | C | E1 | E2 (max) | E3 (min) | F | G | H | Kg |
| 0285 10 00 | 1/8" | 4 mm | 3.9 mm | 2.1 mm | 5 mm | 9.7 mm | 8 mm | .003 Kg |
| 0285 13 00 | 1/4" | 5 mm | 5.8 mm | 3.2 mm | 7 mm | 13.1 mm | 10 mm | .007 Kg |
| 0285 17 00 | 3/8" | 5 mm | 5.8 mm | 3.2 mm | 8 mm | 16.7 mm | 10 mm | .012 Kg |
| 0285 21 00 | 1/2" | 5 mm | 6.8 mm | 3.2 mm | 10 mm | 21 mm | 10 mm | .024 Kg |
| 0285 27 00 | 3/4" | 6 mm | 7.8 mm | 4.2 mm | 12 mm | 26.4 mm | 12 mm | .051 Kg |
| 0285 34 00 | 1" | 6 mm | 9.3 mm | 4.7 mm | 17 mm | 33.2 mm | 12 mm | .089 Kg |
Conforms to DIN 906
Thread: EN 10226-1
