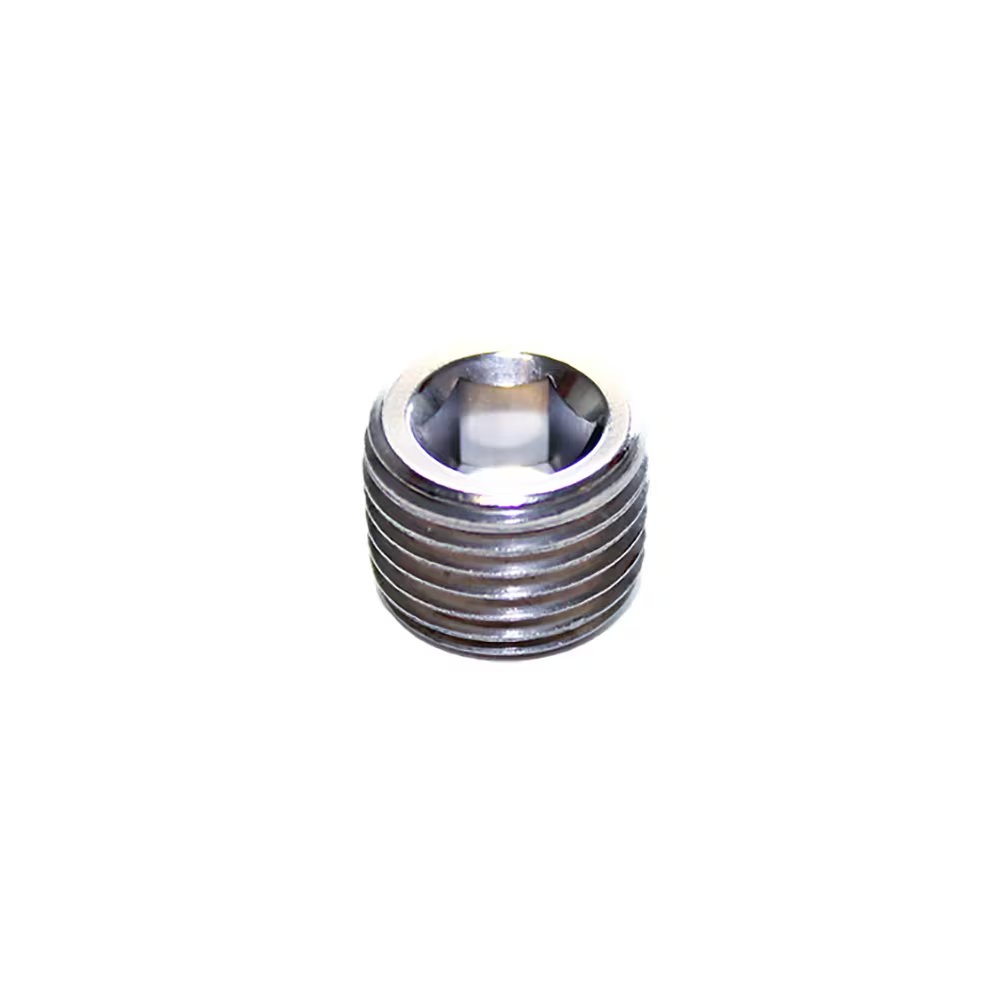

0285 14 00 by Parker | Legris Internal Hex Head Plug | 1/4" Male NPT Thread | 6 mm Hex | 10 mm Length | 316L Stainless Steel | Pack of 10
by Parker Hannifin
Stainless Steel Plugs:0285 Internal Hexagon Head Plug, Male NPT Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $354.27 |
| 15–29 | $320.35 |
| 30+ | $282.66 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | C | E1 | E2 (max) | E3 (min) | F | G | H | Kg |
| 0285 11 00 | 1/8" | 6 mm | 5 mm | 3.2 mm | 5 mm | 10.2 mm | 8 mm | .003 Kg |
| 0285 14 00 | 1/4" | 8 mm | 7.2 mm | 4.4 mm | 6 mm | 13.6 mm | 10 mm | .007 Kg |
| 0285 18 00 | 3/8" | 8 mm | 7.5 mm | 4.7 mm | 8 mm | 17 mm | 11 mm | .013 Kg |
| 0285 22 00 | 1/2" | 8 mm | 9.9 mm | 6.3 mm | 10 mm | 21 mm | 13 mm | .025 Kg |
Conforms to ANSI B1.20.1
