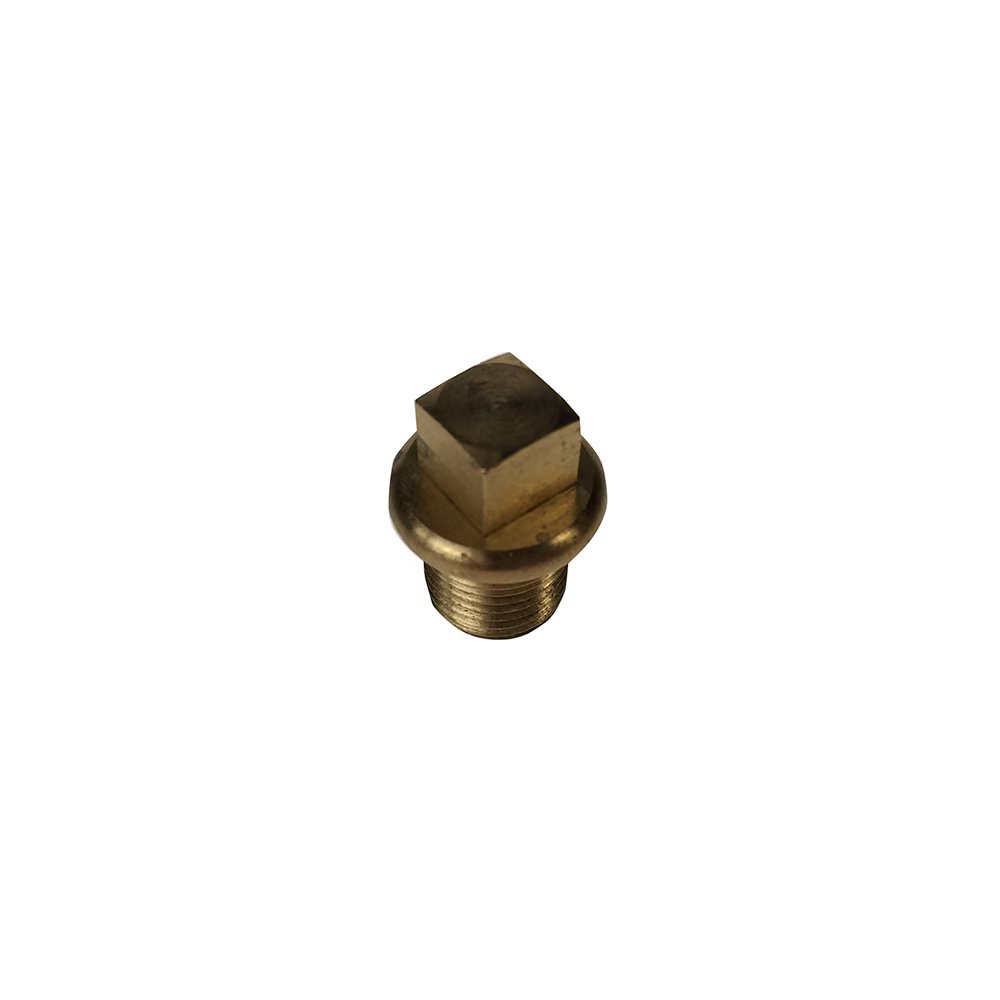

0209 17 00 by Parker | Legris Square Head Plug | 3/8" Male BSPT Thread | 10 mm Square | Brass | Pack of 10
by Parker Hannifin
Brass Plugs:0209 Square Head Plug, Male BSPT Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $124.59 |
| 20–59 | $112.66 |
| 60+ | $99.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | C | E1 | E2 (max) | E2 (min) | F | G | H | Kg |
| 0209 10 00 | 1/8" | 9 mm | 4.9 mm | 3.1 mm | 9.7 mm | 18 mm | 6 mm | .009 Kg |
| 0209 13 00 | 1/4" | 11 mm | 7.3 mm | 4.7 mm | 13.2 mm | 20 mm | 8 mm | .015 Kg |
| 0209 17 00 | 3/8" | 12 mm | 7.7 mm | 5.1 mm | 16.7 mm | 22 mm | 10 mm | .025 Kg |
| 0209 21 00 | 1/2" | 15 mm | 10 mm | 6.4 mm | 21 mm | 26.5 mm | 13 mm | .047 Kg |
| 0209 27 00 | 3/4" | 16.5 mm | 11.3 mm | 7.7 mm | 26.4 mm | 29 mm | 17 mm | .097 Kg |
Conforms to DIN 906.
Thread: EN 10226-1
