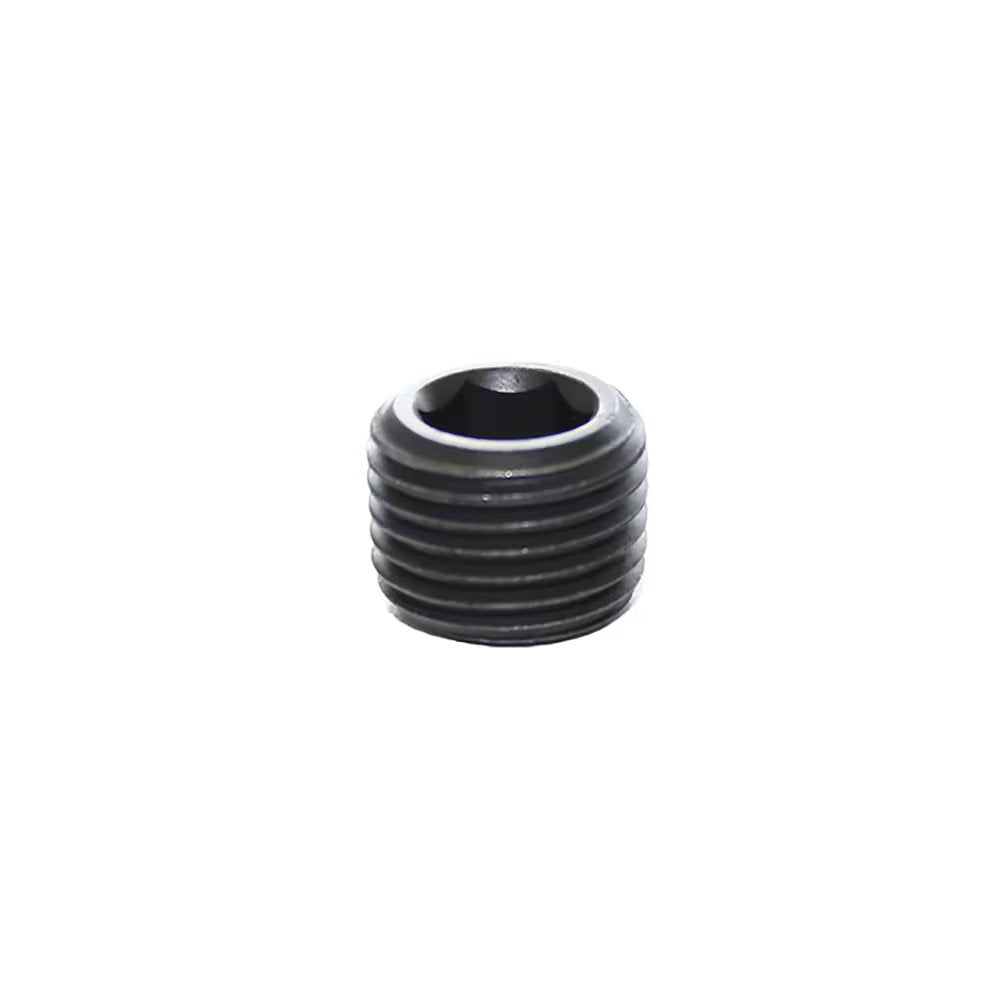

0206 13 00 by Parker | Legris Internal Hex Head Plug | 1/4" Male BSPT Thread | 5 mm Hex | 8 mm Length | Steel | Pack of 50
by Parker Hannifin
Steel Plugs:0206 Internal Hexagon Head Plug, Male BSPT Thread
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $161.69 |
| 30–59 | $146.21 |
| 60+ | $129.01 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | C | E1 | E2 (max) | E3 (min) | F | G | H | Kg |
| 0206 13 00 | 1/4" | 5 mm | 5.8 mm | 3.2 mm | 7 mm | 13.2 mm | 10 mm | .007 Kg |
For BSPT plugs, from 1/2” - 1 1/2” inclusive :
Conforms to DIN 906.
Thread conforms to EN 10226-1
