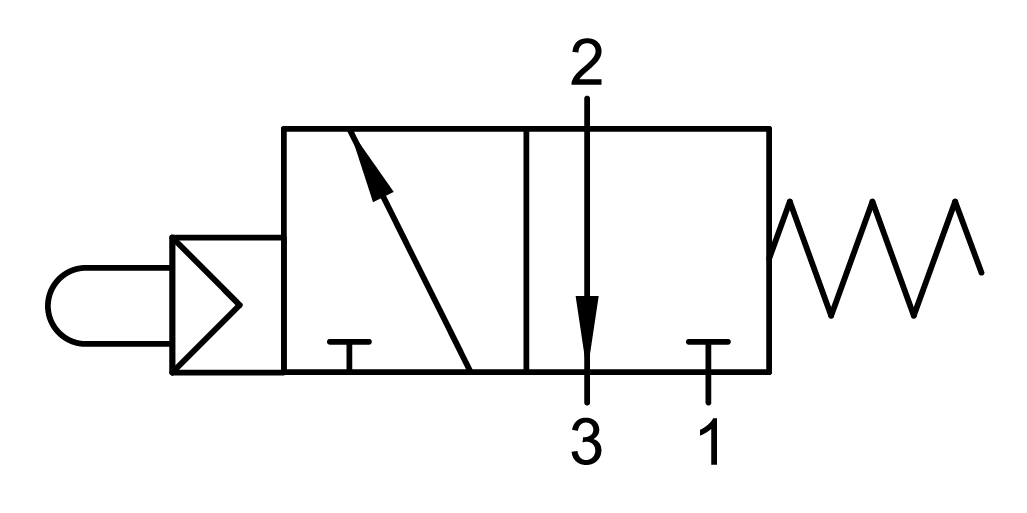

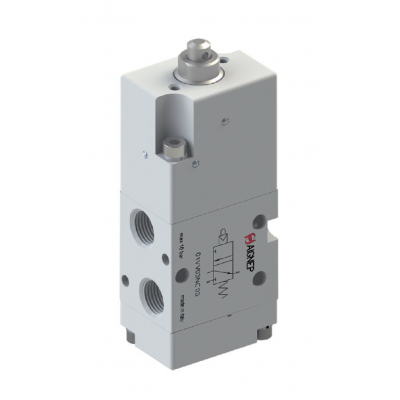

01VV03NC02N by AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Tappet Spring Return | 1/8" NPT

Contact for Price

If you are interested in this item please fill out the Contact Form below.

How can we help you?

Price, availability, and details—available upon request.

MECHANICALLY ACTUATED VALV

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	2 ÷ 10 bar
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number (Normally Closed)	Part Number (No Funtion)	Ways	Reactuation	Size
01VV03NC02N 01VV03NC02	-	3/2	Monostable Spring Return	1/8"
-	01VV050002N 01VV050002	5/2	Monostable Spring Return	1/8"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
