01VT130002N by AIGNEP | 01V Control Valves Series Series | 3 way/2 position | Push/Pull Button | 1/8" NPTF
01VT130002N by AIGNEP | 01V Control Valves Series Series | 3 way/2 position | Push/Pull Button | 1/8" NPTF

01VT130002N by AIGNEP | 01V Control Valves Series Series | 3 way/2 position | Push/Pull Button | 1/8" NPTF

Sale price$40.43
Buy More, Save More!
Quantity Price Each
10–39 $38.00
40–79 $34.37
80+ $30.32
Discounts applied in cart/checkout.

Product Data:

Series:
  • 01V Control Valves Series
Ends Configuration:
  • 1/8in Female NPTF
  • 1/8in Female NPTF
  • Some Ends Match
Material(s):
  • Plastic
MANUAL VALVES
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals

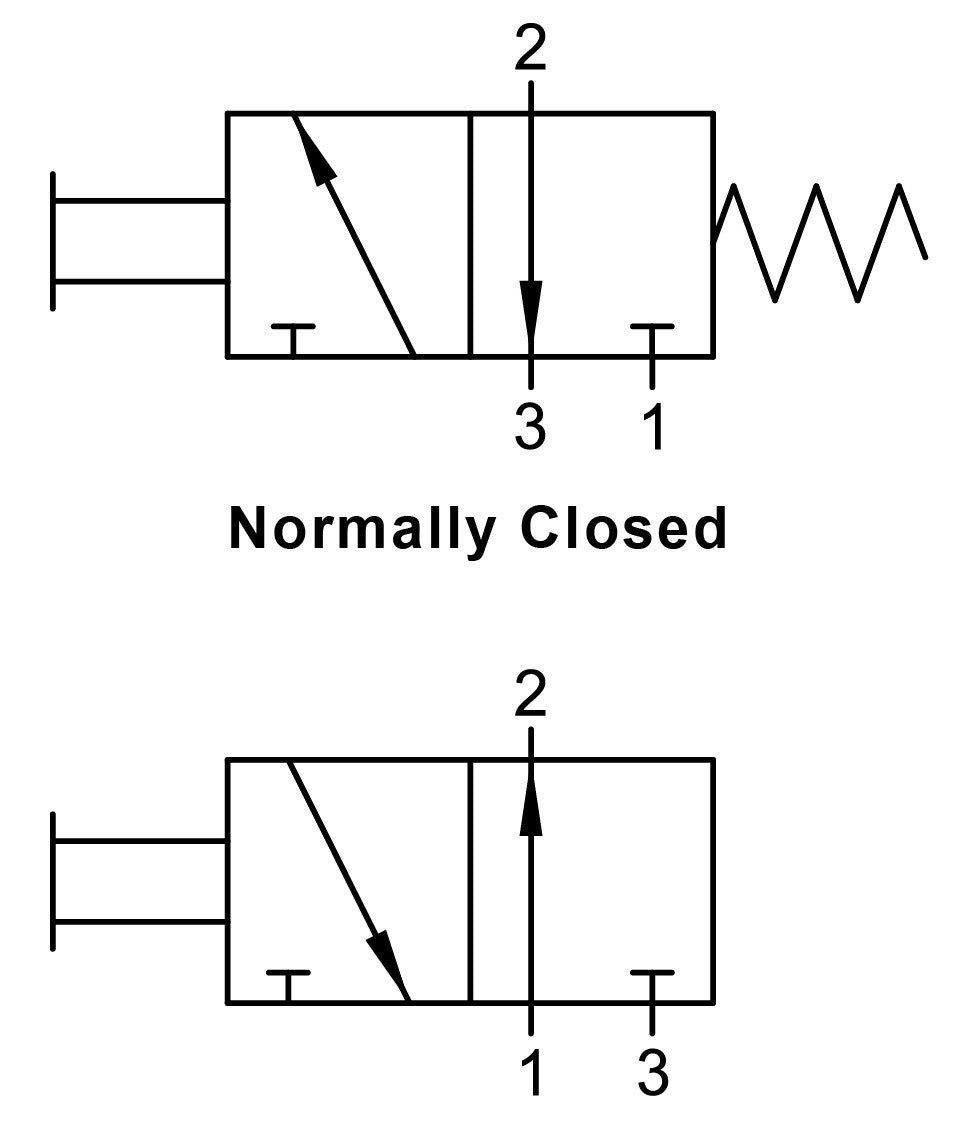

Part Number Ways Reactuation Function Size
01VT03NC02N 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VT03NC03N 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VT130002N 3/2 Monostable Spring Return No Function (00) 1/8" NPTF
01VT130003N 3/2 Monostable Spring Return No Function (00) 1/4" NPTF
01VT050002N 5/2 Monostable Spring Return No Function (00) 1/8" NPTF
01VT050003N 5/2 Monostable Spring Return No Function (00) 1/4" NPTF
01VT150002N 5/2 Monostable Spring Return No Function (00) 1/8" NPTF
01VT150003N 5/2 Monostable Spring Return No Function (00) 1/4" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
