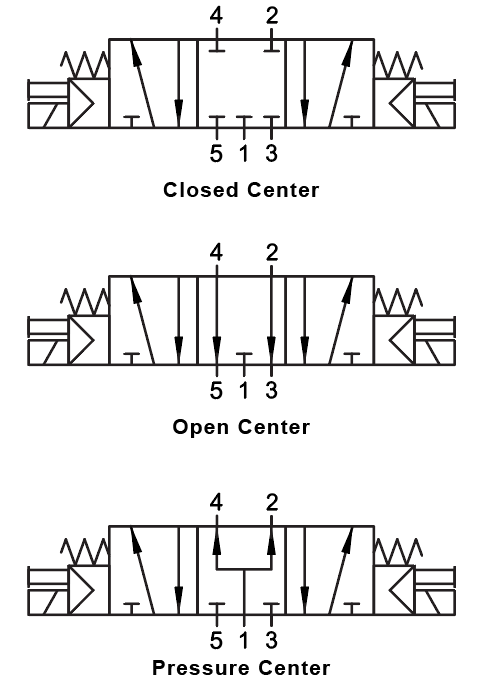

01VS07PC030302 by AIGNEP | 01V Control Valves Series | 5/3 Pressure Center G-Thread 1/4" Double Solenoid Pilot Spring Centered | 24V DC/2 W coil | LED Con
01VS07PC030302 by AIGNEP | 01V Control Valves Series | 5/3 Pressure Center G-Thread 1/4" Double Solenoid Pilot Spring Centered | 24V DC/2 W coil | LED Con

01VS07PC030302 by AIGNEP | 01V Control Valves Series | 5/3 Pressure Center G-Thread 1/4" Double Solenoid Pilot Spring Centered | 24V DC/2 W coil | LED Con

Sale price$130.66
Buy More, Save More!
Quantity Price Each
5–19 $122.82
20–59 $111.06
60+ $98.00
Discounts applied in cart/checkout.

Product Data:

Series:
  • 01V Control Valves Series
Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Female BSPP
  • Some Ends Match
Material(s):
  • Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VS07PC020101 01VS07PC020102 12V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VS07PC020201 01VS07PC020202 24V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VS07PC020301 01VS07PC020302 24V DC 2W 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VS07PC020401 01VS07PC020402 24V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VS07PC020501 01VS07PC020502 110V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VS07PC020601 01VS07PC020602 220V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VS07PC030101 01VS07PC030102 12V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VS07PC030201 01VS07PC030202 24V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VS07PC030301 01VS07PC030302 24V DC 2W 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VS07PC030401 01VS07PC030402 24V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VS07PC030501 01VS07PC030502 110V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VS07PC030601 01VS07PC030602 220V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VS07PC050101 01VS07PC050102 12V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/2"
01VS07PC050201 01VS07PC050202 24V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/2"
01VS07PC050301 01VS07PC050302 24V DC 2W 5/3 Monostable Spring Return Pressure Control (PC) G 1/2"
01VS07PC050401 01VS07PC050402 24V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/2"
01VS07PC050501 01VS07PC050502 110V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/2"
01VS07PC050601 01VS07PC050602 220V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/2"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
