01VS0305N0202 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed 1/2" NPTF Single Solenoid Pilot Spring Return | 24V DC/3W coil | LED Con
01VS0305N0202 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed 1/2" NPTF Single Solenoid Pilot Spring Return | 24V DC/3W coil | LED Con
AIGNEP

01VS0305N0202 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed 1/2" NPTF Single Solenoid Pilot Spring Return | 24V DC/3W coil | LED Con

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

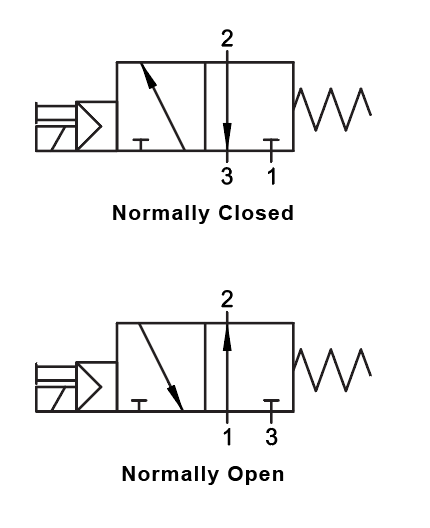

SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VS03NC02N0101 01VS03NC02N0102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VS03NC02N0201 01VS03NC02N0202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VS03NC02N0301 01VS03NC02N0302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VS03NC02N0401 01VS03NC02N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VS03NC02N0501 01VS03NC02N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VS03NC02N0601 01VS03NC02N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VS03NC03N0101 01VS03NC03N0102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VS03NC03N0201 01VS03NC03N0202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VS03NC03N0301 01VS03NC03N0302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VS03NC03N0401 01VS03NC03N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VS03NC03N0501 01VS03NC03N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VS03NC03N0601 01VS03NC03N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VS03NC05N0101 01VS03NC05N0102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/2" NPTF
01VS03NC05N0201 01VS03NC05N0202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/2" NPTF
01VS03NC05N0301 01VS03NC05N0302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) 1/2" NPTF
01VS03NC05N0401 01VS03NC05N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/2" NPTF
01VS03NC05N0501 01VS03NC05N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/2" NPTF
01VS03NC05N0601 01VS03NC05N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/2" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
