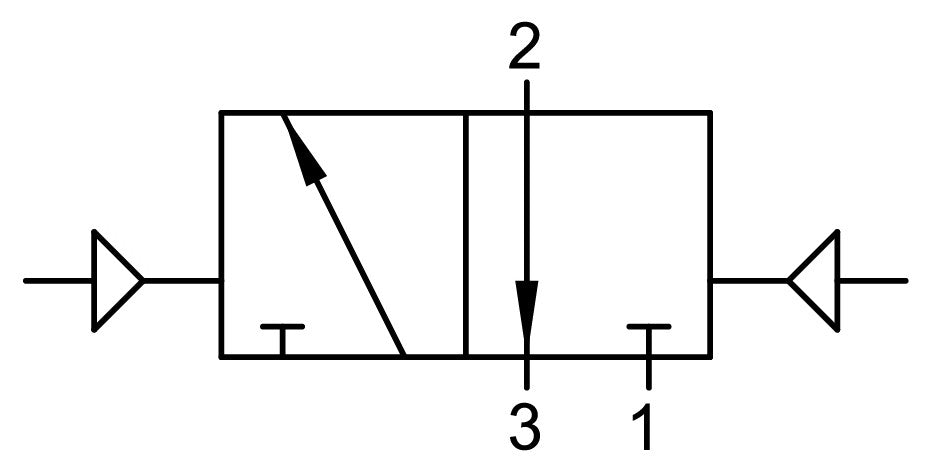

01VP130002 by AIGNEP | 01V Control Valves Series | Pneumatic Valve | 3/2 Double Air Pilot 1/8" G-Thread Ports
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.24 |
| 40–79 | $40.91 |
| 80+ | $36.10 |
Discounts applied in cart/checkout.
Product Data:
Series:
Ends Configuration:
Material(s):
| Technical Characteristics: | |||
|---|---|---|---|
| Operating Rating: | 0 ÷ 10 bar 0 ÷ 145 psi |
Pressure Drive: | Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi |
| Temperature: | Min: 14°F (-10°C) Max: 140°F (60°C) |
Component Parts and Materials: | • Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals |
| Part Number | Ways | Reactuation | Function | Size |
|---|---|---|---|---|
| 01VP03NC02 | 3/2 | Single Air Pilot - Spring Return | Normally Closed (NC) | G 1/8 |
| 01VP03NC03 | 3/2 | Single Air Pilot - Spring Return | Normally Closed (NC) | G 1/4 |
| 01VP03NC05 | 3/2 | Single Air Pilot - Push/Pull | Normally Closed (NC) | G 1/2 |
| 01VP03NO02 | 3/2 | Single Air Pilot - Spring Return | Normally Opened (NO) | G 1/8 |
| 01VP03NO03 | 3/2 | Single Air Pilot - Spring Return | Normally Opened (NO) | G 1/4 |
| 01VP03NO05 | 3/2 | Single Air Pilot - Spring Return | Normally Opened (NO) | G 1/2 |
| 01VP130002 | 3/2 | Double Air Pilot | - | G 1/4 |
| 01VP130003 | 3/2 | Double Air Pilot | - | G 1/4 |
| 01VP130005 | 3/2 | Double Air Pilot | - | G 1/2 |
| 01VP050002 | 5/2 | Single Air Pilot - Spring Return | - | G 1/8 |
| 01VP050003 | 5/2 | Single Air Pilot - Spring Return | - | G 1/4 |
| 01VP050005 | 5/2 | Single Air Pilot - Spring Return | - | G 1/2 |
