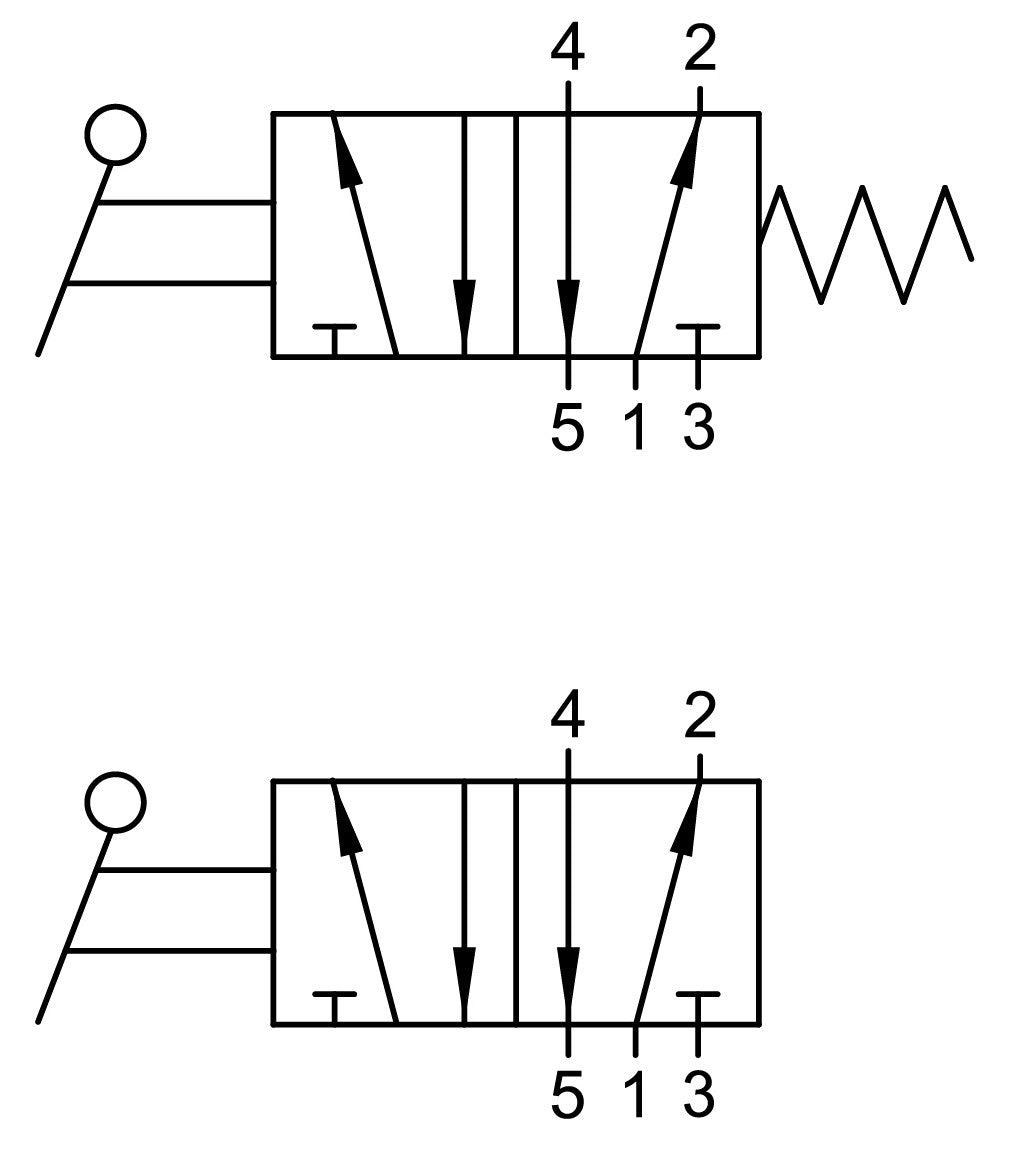

01VL050002N by AIGNEP | 01V Series | Pneumatic Valve | 5/2 Lever/Spring Return | 1/8" NPTF Ports
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $54.94 |
| 40–79 | $49.68 |
| 80+ | $43.84 |
Discounts applied in cart/checkout.
Product Data:
Series:
Ends Configuration:
Material(s):
| Technical Characteristics: | |||
|---|---|---|---|
| Operating Rating: | 0 ÷ 10 bar 0 ÷ 145 psi |
Pressure Drive: | Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi |
| Temperature: | Min: 14°F (-10°C) Max: 140°F (60°C) |
Component Parts and Materials: | • Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals |
| Part Number | Ways | Reactuation | Function | Size |
|---|---|---|---|---|
| 01VL03NC02N | 3/2 | Lever Operated - Spring Return | Normally Closed (NC) | 1/8 NPTF |
| 01VL03NC03N | 3/2 | Lever Operated - Spring Return | Normally Closed (NC) | 1/4 NPTF |
| 01VL130002N | 3/2 | Lever Operated - Push/Pull | - | 1/8 NPTF |
| 01VL130003N | 3/2 | Lever Operated - Push/Pull | - | 1/4 NPTF |
| 01VL050002N | 5/2 | Lever Operated - Spring Return | - | 1/8 NPTF |
| 01VL050003N | 5/2 | Lever Operated - Spring Return | - | 1/4 NPTF |
| 01VL150002N | 5/2 | Lever Operated - Push/Pull | - | 1/8 NPTF |
| 01VL150003N | 5/2 | Lever Operated - Push/Pull | - | 1/4 NPTF |
| 01VL07CC02N | 5/3 | Lever Operated - Spring Centered | Center Closed (CC) | 1/8 NPTF |
| 01VL07CC03N | 5/3 | Lever Operated - Spring Centered | Center Closed (CC) | 1/4 NPTF |
| 01VL07OC02N | 5/3 | Lever Operated - Spring Centered | Opened Center (OC) | 1/8 NPTF |
| 01VL07OC03N | 5/3 | Lever Operated - Spring Centered | Opened Center (OC) | 1/4 NPTF |
| 01VL27CC02N | 5/3 | Lever Operated - Push/Pull | Center Closed (CC) | 1/8 NPTF |
| 01VL27CC03N | 5/3 | Lever Operated - Push/Pull | Center Closed (CC) | 1/4 NPTF |
| 01VL27OC02N | 5/3 | Lever Operated - Push/Pull | Opened Center (OC) | 1/8 NPTF |
| 01VL27OC03N | 5/3 | Lever Operated - Push/Pull | Opened Center (OC) | 1/4 NPTF |
| 01VL27PC03N | 5/3 | Lever Operated - Push/Pull | Pressure Control (PC) | 1/4 NPTF |
