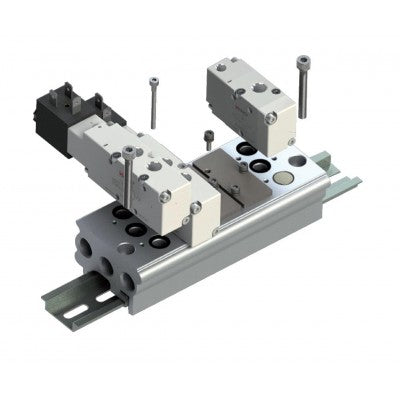

01VB010006 by AIGNEP | 01V Series | 6 Station | Fixed Length Manifold Base 1/4"
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $53.41 |
| 40–79 | $48.30 |
| 80+ | $42.62 |
Discounts applied in cart/checkout.
Product Data:
Series:
DIN Rail Mounted - Manifold Bases - BSPP
Pressure Rating: 0-145 PSIG
Temperature Range: 14-140º F
Temperature Range: 14-140º F
| Product Number | Port Size | Port Type | Stations | Length | |
|---|---|---|---|---|---|
| 01VB000002 | 1/8" | BSPP | 2 | 75 mm | |
| 01VB000003 | 1/8" | BSPP | 3 | 99 mm | |
| 01VB000004 | 1/8" | BSPP | 4 | 123 mm | |
| 01VB000005 | 1/8" | BSPP | 5 | 147 mm | |
| 01VB000006 | 1/8" | BSPP | 6 | 171 mm | |
| 01VB000007 | 1/8" | BSPP | 7 | 195 mm | |
| 01VB000008 | 1/8" | BSPP | 8 | 219 mm | |
| 01VB000009 | 1/8" | BSPP | 9 | 243 mm | |
| 01VB000010 | 1/8" | BSPP | 10 | 267 mm | |
| 01VB010002 | 1/4" | BSPP | 2 | 75 mm | |
| 01VB010003 | 1/4" | BSPP | 3 | 99 mm | |
| 01VB010004 | 1/4" | BSPP | 4 | 123 mm | |
| 01VB010005 | 1/4" | BSPP | 5 | 147 mm | |
| 01VB010006 | 1/4" | BSPP | 6 | 171 mm | |
| 01VB010007 | 1/4" | BSPP | 7 | 195 mm | |
| 01VB010008 | 1/4" | BSPP | 8 | 219 mm | |
| 01VB010009 | 1/4" | BSPP | 9 | 243 mm | |
| 01VB010010 | 1/4" | BSPP | 10 | 267 mm |
