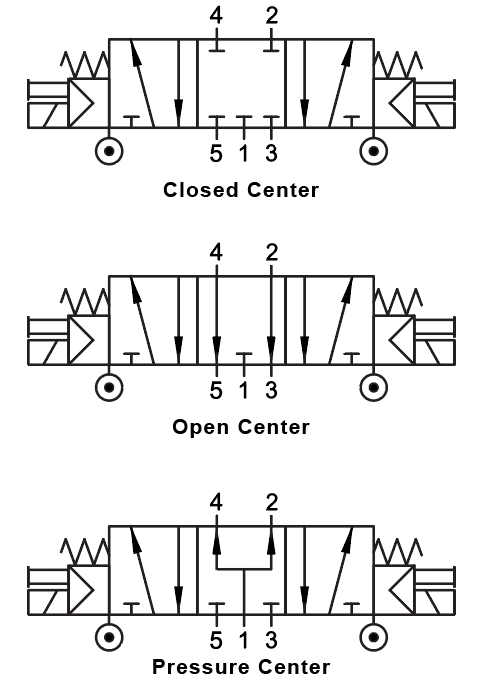

01VA07PC03N0601 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Pressure Center | Spring Centered | 1/4" NPT | 220V AC/5VA coil | Blk Con
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Technical Characteristics: | |||
|---|---|---|---|
| Operating Rating: | 0 ÷ 10 bar 0 ÷ 145 psi |
Operating Pressure: | Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi |
| Temperature: | Min: 14°F (-10°C) Max: 140°F (60°C) |
Component Parts and Materials: | • Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals |
| Part Number (Black Con) | Part Number (LED Con) | Solenoid Voltage | Minimum Power | Ways | Reactuation | Function | Size |
|---|---|---|---|---|---|---|---|
| 01VA07PC02N0101 | 01VA07PC02N0102 | 12V DC | 3W | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/8" NPTF |
| 01VA07PC02N0201 | 01VA07PC02N0202 | 24V DC | 3W | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/8" NPTF |
| 01VA07PC02N0301 | 01VA07PC02N0302 | 2W | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/8" NPTF | |
| 01VA07PC02N0401 | 01VA07PC02N0402 | 24V AC | 5VA | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/8" NPTF |
| 01VA07PC02N0501 | 01VA07PC02N0502 | 110V AC | 5VA | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/8" NPTF |
| 01VA07PC02N0601 | 01VA07PC02N0602 | 220V AC | 5VA | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/8" NPTF |
| 01VA07PC03N0101 | 01VA07PC03N0102 | 12V DC | 3W | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/4" NPTF |
| 01VA07PC03N0201 | 01VA07PC03N0202 | 24V DC | 3W | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/4" NPTF |
| 01VA07PC03N0301 | 01VA07PC03N0302 | 24V DC | 2W | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/4" NPTF |
| 01VA07PC03N0401 | 01VA07PC03N0402 | 24V AC | 5VA | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/4" NPTF |
| 01VA07PC03N0501 | 01VA07PC03N0502 | 110V AC | 5VA | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/4" NPTF |
| 01VA07PC03N0601 | 01VA07PC03N0602 | 220V AC | 5VA | 5/3 | Monostable Spring Positions | Pressure Control (PC) | 1/4" NPTF |
