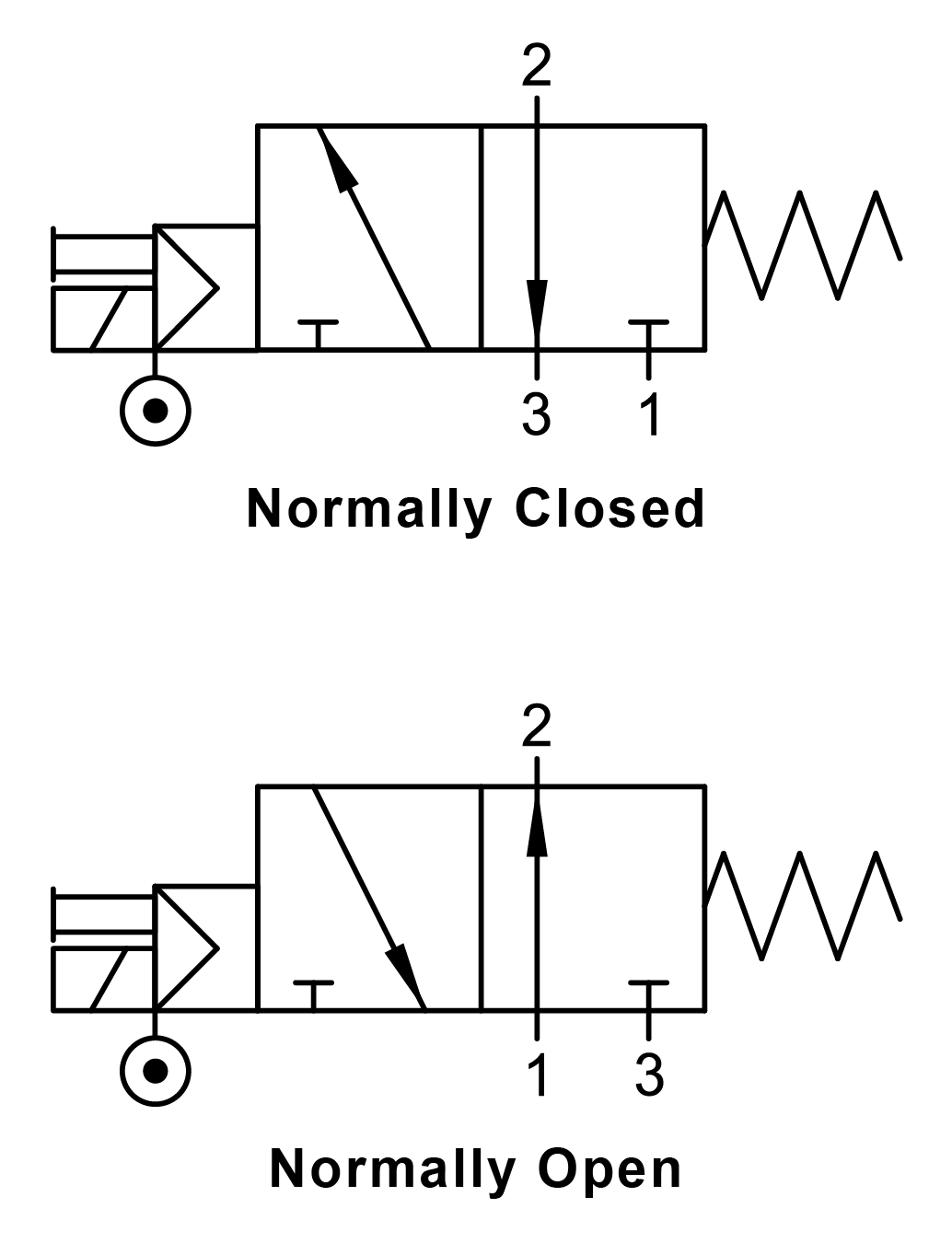

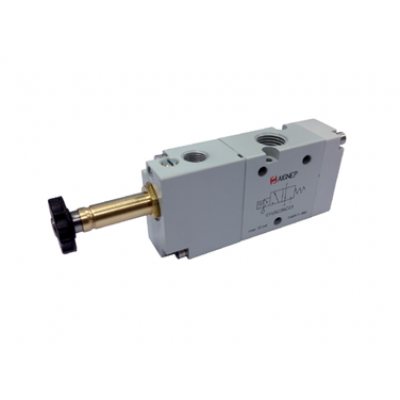

01VA03NO02N by AIGNEP | 01V Control Valves Series | 3 way/2 position | Normally Open | Single Solenoid External Pilot | 1/8" NPTF
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Technical Characteristics: | |||
|---|---|---|---|
| Operating Rating: | 0 ÷ 10 bar 0 ÷ 145 psi |
Operating Pressure: | Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi |
| Temperature: | Min: 14°F (-10°C) Max: 140°F (60°C) |
Component Parts and Materials: | • Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals |
| Part Number | Ways | Reactuation | Function | Size |
|---|---|---|---|---|
| 01VA03NC02N | 3/2 | Monostable Spring Return | Normally Closed (NC) | 1/8" NPTF |
| 01VA03NC03N | 3/2 | Monostable Spring Return | Normally Closed (NC) | 1/4" NPTF |
| 01VA03NO02N | 3/2 | Monostable Spring Return | Normally Opened (NO) | 1/8" NPTF |
| 01VA03NO03N | 3/2 | Monostable Spring Return | Normally Opened (NO) | 1/4" NPTF |
| 01VA050002N | 5/2 | Monostable Spring Return | No Funtion (00) | 1/8" NPTF |
| 01VA050003N | 5/2 | Monostable Spring Return | No Funtion (00) | 1/4" NPTF |
| 01VA07CC02N | 5/3 | Monostable Spring Return | Closed Center (CC) | 1/8" NPTF |
| 01VA07CC03N | 5/3 | Monostable Spring Return | Closed Center (CC) | 1/4" NPTF |
| 01VA07OC02N | 5/3 | Monostable Spring Return | Opened Center (OC) | 1/8" NPTF |
| 01VA07OC03N | 5/3 | Monostable Spring Return | Opened Center (OC) | 1/4" NPTF |
| 01VA07PC02N | 5/3 | Monostable Spring Return | Pressure Center (PC) | 1/8" NPTF |
| 01VA07PC03N | 5/3 | Monostable Spring Return | Pressure Center (PC) | 1/4" NPTF |
