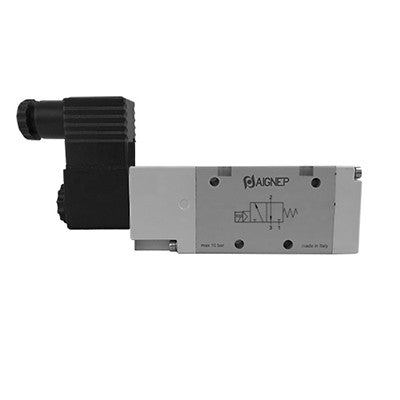

01VA03030101 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Ext Pilot G-Thread 1/4" | 12V DC/3 W coil | Black Con
01VA03030101 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Ext Pilot G-Thread 1/4" | 12V DC/3 W coil | Black Con
AIGNEP

01VA03030101 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Ext Pilot G-Thread 1/4" | 12V DC/3 W coil | Black Con

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SOLENOID ASSISTED
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size

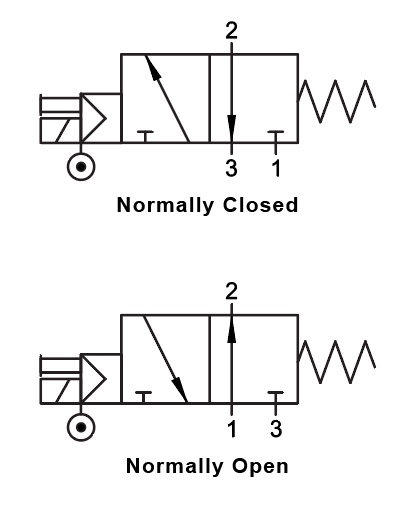

01VA03NC020101 01VA03NC020102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VA03NC020201 01VA03NC020202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VA03NC020301 01VA03NC020302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VA03NC020401 01VA03NC020402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VA03NC020501 01VA03NC020502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VA03NC020601 01VA03NC020602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VA03NC030101 01VA03NC030102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/4"
01VA03NC030201 01VA03NC030202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/4"
01VA03NC030301 01VA03NC030302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) G 1/4"
01VA03NC030401 01VA03NC030402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/4"
01VA03NC030501 01VA03NC030502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/4"
01VA03NC030601 01VA03NC030602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/4"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
