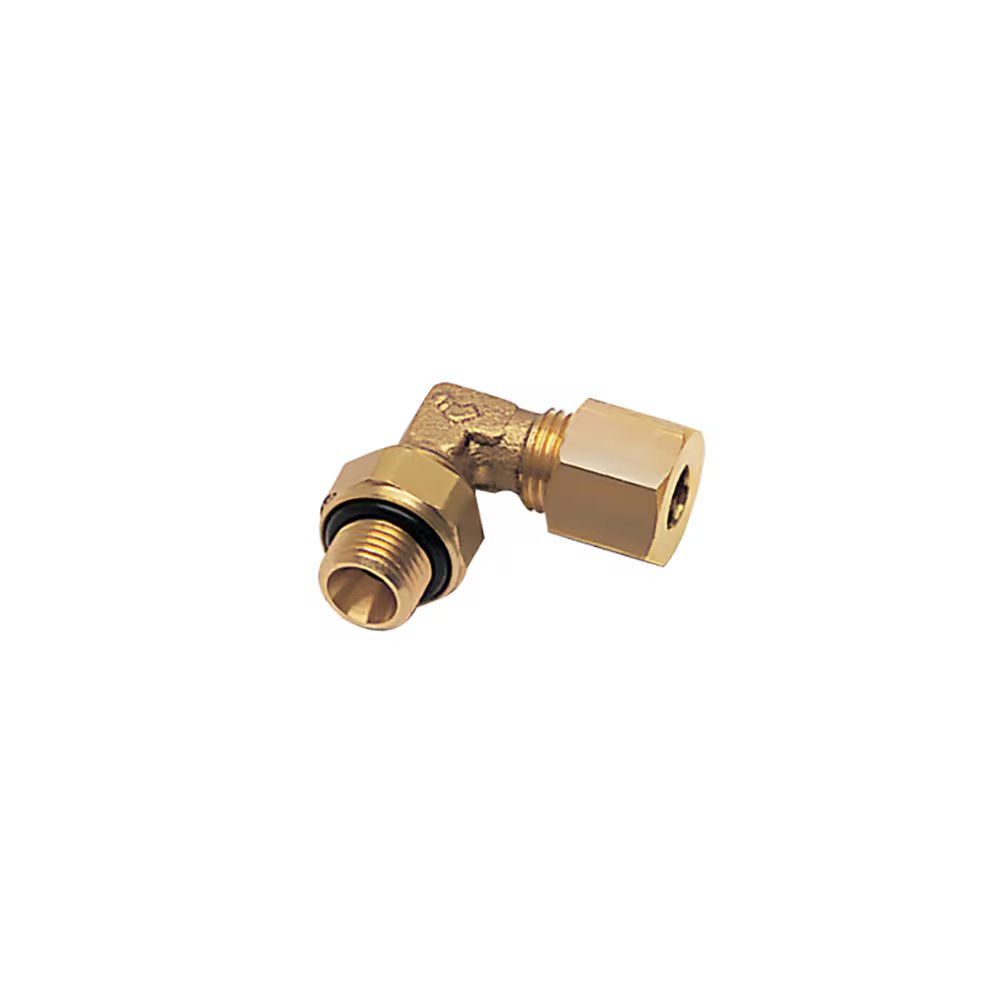

0199 04 10 by Parker | Legris Stud Orientable Fitting | 4 mm Tube Size x 1/8" Male BSPP Thread | 14 mm Hex (F) | 10 mm Hex (F1) | 90° Elbow | Brass | Pack of 10

0199 04 10 by Parker | Legris Stud Orientable Fitting | 4 mm Tube Size x 1/8" Male BSPP Thread | 14 mm Hex (F) | 10 mm Hex (F1) | 90° Elbow | Brass | Pack of 10

Sale price$96.91

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0199 Stud Orientable Elbow, Male BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $91.10
20–59 $82.37
60+ $72.68
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0199 Series
Shape:

90° Elbow

Ends Configuration:
  • 4mm Tube Compression
  • 1/8in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C F F1 H H1 H1 (max) J L (max) L1 Kg
0199 04 10 4 mm 1/8" 14 mm 10 mm 23 mm 16 mm 17 mm 8 mm 19 mm 9.5 mm .022 Kg
0199 04 13 4 mm 1/4" 19 mm 10 mm 30.5 mm 22 mm 23.5 mm 10 mm 19 mm 11 mm .043 Kg
0199 06 10 6 mm 1/8" 14 mm 13 mm 23 mm 16 mm 17 mm 8 mm 22 mm 11 mm .027 Kg
0199 06 13 6 mm 1/4" 19 mm 13 mm 30.5 mm 22 mm 23.5 mm 10 mm 22 mm 12 mm .047 Kg
0199 08 10 8 mm 1/8" 14 mm 14 mm 24 mm 17 mm 18 mm 10 mm 28 mm 15 mm .034 Kg
0199 08 13 8 mm 1/4" 19 mm 14 mm 30.5 mm 22 mm 23.5 mm 10 mm 28 mm 15 mm .050 Kg
0199 08 17 8 mm 3/8" 22 mm 14 mm 33.5 mm 24 mm 25.5 mm 12 mm 28 mm 15 mm .065 Kg
0199 10 13 10 mm 1/4" 19 mm 19 mm 31 mm 22.5 mm 24 mm 12 mm 30 mm 14.5 mm .067 Kg
0199 10 17 10 mm 3/8" 22 mm 19 mm 33.5 mm 24 mm 25.5 mm 12 mm 30 mm 14.5 mm .079 Kg
0199 10 21 10 mm 1/2" 27 mm 19 mm 40 mm 29.5 mm 31 mm 19 mm 37 mm 22 mm .136 Kg
0199 14 17 14 mm 3/8" 22 mm 24 mm 35.5 mm 26 mm 27.5 mm 19 mm 35 mm 18 mm .115 Kg
0199 14 21 14 mm 1/2" 27 mm 24 mm 40 mm 29.5 mm 31 mm 19 mm 35 mm 18 mm .138 Kg
0199 18 21 18 mm 1/2" 27 mm 30 mm 40 mm 29 mm 30.5 mm 23 mm 41 mm 21.5 mm .193 Kg
0199 18 27 18 mm 3/4" 32 mm 30 mm 43.5 mm 32 mm 33.5 mm 23 mm 41 mm 21.5 mm .224 Kg
0199 22 27 22 mm 3/4" 32 mm 36 mm 45.5 mm 34 mm 36 mm 32 mm 51 mm 31 mm .381 Kg
0199 22 34 22 mm 1" 41 mm 36 mm 54 mm 40.5 mm 43 mm 32 mm 51 mm 31 mm .414 Kg

The body will orientate for positioning purposes.
