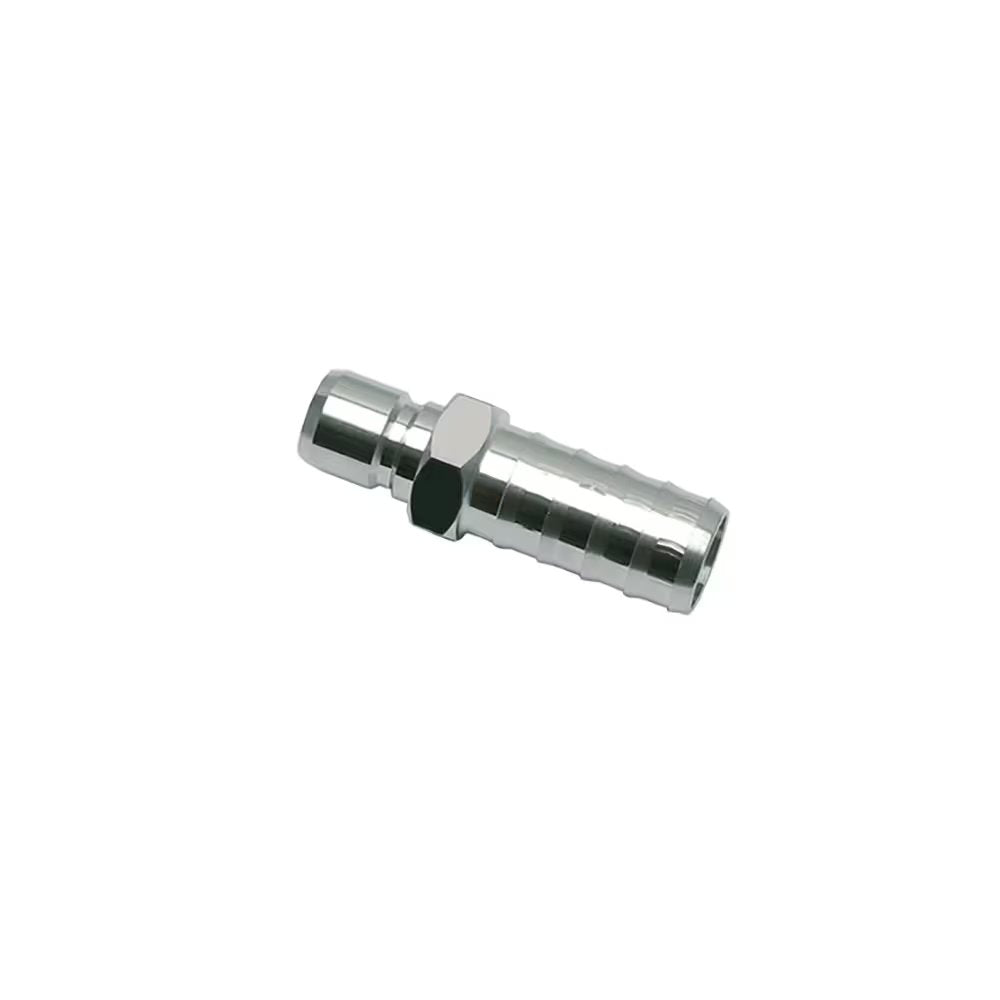

0195 16 00 by Parker | Legris Plug Quick Disconnect | 16 mm Tube Size x 18.5 mm Hose Barb | 17 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

0195 16 00 by Parker | Legris Plug Quick Disconnect | 16 mm Tube Size x 18.5 mm Hose Barb | 17 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Sale price$149.01

by Parker Hannifin
Midi Series:0195 Plug without valve, with Barb Connection for Flexible Tubing

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $140.07
30–59 $126.66
60+ $111.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • Midi Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Midi Series Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users.
  • Designed for transmission of water and fluids
  • High flow capabilities
  • Maximum energy efficiency
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Nickel Plated Brass
  • Plug: Nickel Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 2.200 NI/min.
    • (inlet pressure 6 bar, pressure drop 0.6 bar)
Part Number Diameter Nominal (DN) ØD ØD1 F L
0195 13 00 12 mm 13 mm 15.2 mm 17 mm 29.5 mm
0195 16 00 12 mm 16 mm 18.5 mm 21 mm 36.5 mm

Probe without Shut-off
