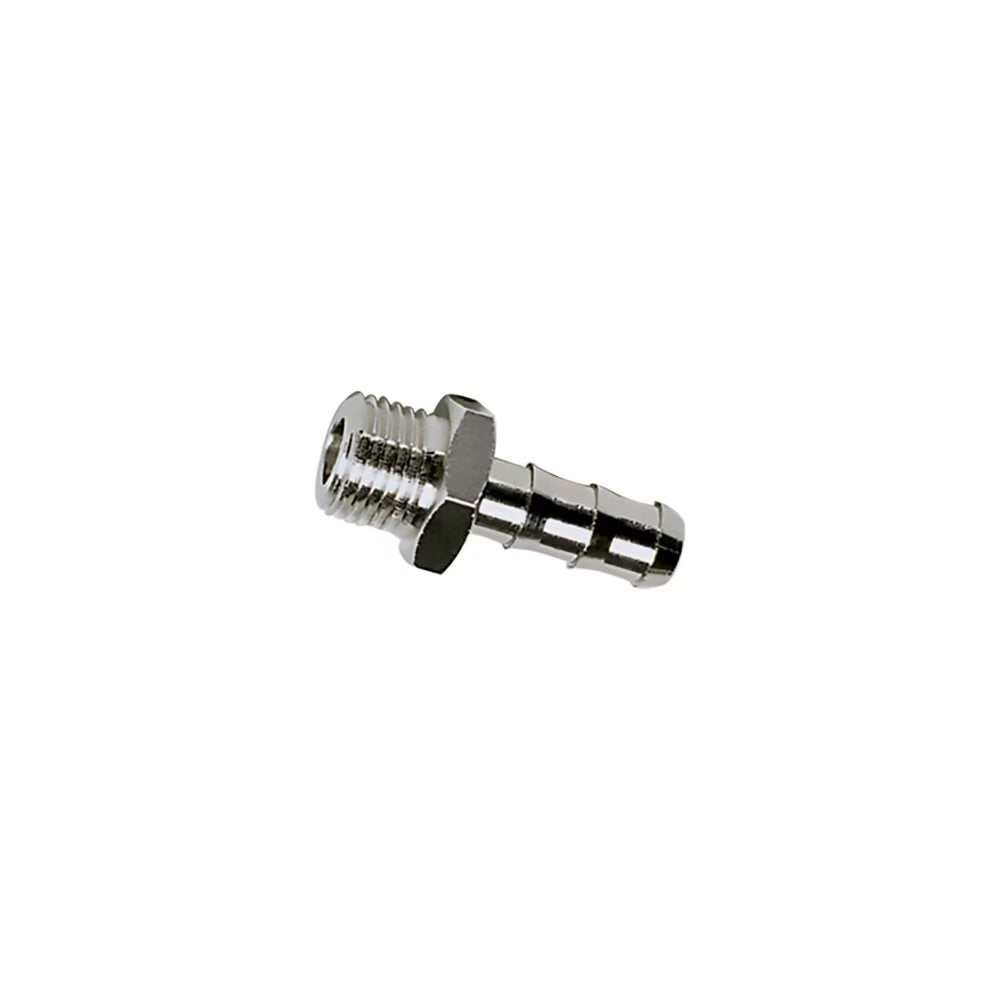

0191 13 21 by Parker | Legris Tailpiece Adapter for Rubber Hose | 13 mm Barb x 1/2" Male BSPP Thread | 27 mm Hex | 47.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Nickel-Plated Brass Adapters:0191 Tailpiece Adaptor for Rubber Hose, Male BSPP Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $113.44 |
| 20–59 | $102.58 |
| 60+ | $90.51 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | C | E | F | K | L | Kg |
| 0191 04 13 | 4 mm | 6 mm | 1/4" | 9.5 mm | 17 mm | 5 mm | 22.5 mm | .019 Kg |
| 0191 07 13 | 7 mm | 9 mm | 1/4" | 9.5 mm | 17 mm | 5 mm | 22.5 mm | .022 Kg |
| 0191 07 21 | 7 mm | 9 mm | 1/2" | 11 mm | 27 mm | 7 mm | 29.5 mm | .058 Kg |
| 0191 10 13 | 10 mm | 12.2 mm | 1/4" | 9.5 mm | 17 mm | 5 mm | 22.5 mm | .020 Kg |
| 0191 10 21 | 10 mm | 12.2 mm | 1/2" | 11 mm | 27 mm | 7 mm | 29.5 mm | .060 Kg |
| 0191 13 21 | 13 mm | 15.2 mm | 1/2" | 11 mm | 27 mm | 7 mm | 29.5 mm | .059 Kg |
| 0191 16 21 | 16 mm | 18.5 mm | 1/2" | 11 mm | 27 mm | 7 mm | 36.5 mm | .067 Kg |
