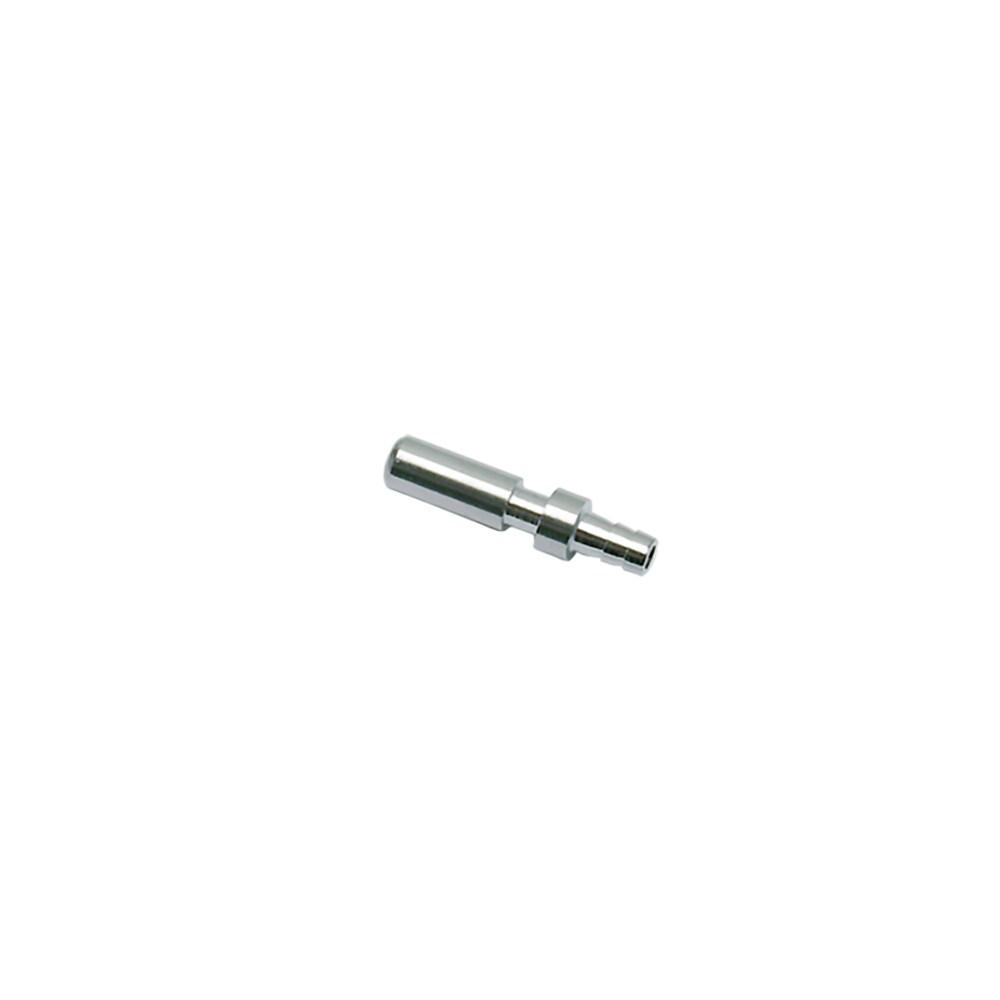

0181 04 06 by Parker | Legris Plug Quick Disconnect | 4 mm Tube Size x 4.7 mm Barb | Nickel-Plated Brass | Pack of 10

0181 04 06 by Parker | Legris Plug Quick Disconnect | 4 mm Tube Size x 4.7 mm Barb | Nickel-Plated Brass | Pack of 10

Sale price$40.48

by Parker Hannifin
Metal Quick-Acting Couplers:0181 Plug without valve, with Barb Connection for Polyamide (PA) Tubing

Package Quantity: 10 Units

In stock
Buy More, Save More!
Quantity Price Each
20–39 $38.05
40–79 $34.41
80+ $30.36
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0181 Series
Shape:

No Orientation

Ends Configuration:
  • 4mm Tube Stem
  • 4.7mm Hose Barb
Mini Series: The mini series offer space saving solutions for frequent disconnection of tubing or pneumatic tools.
  • Compact and ergonomic
  • Easy identification of circuits
  • Easy disconnection / single hand operation
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Technical Polymer, Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +60°C (NBR)
Flow Rate Air:
  • 165 Nl/min. (inlet pressure 6 bar, pressure dop 0.6 bar)
Part Number Diameter Nominal (DN) ØD ØD1 L Kg
0181 04 06 3 4 mm 4.7 mm 19 mm .005 Kg

Probe without Shut-off

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
