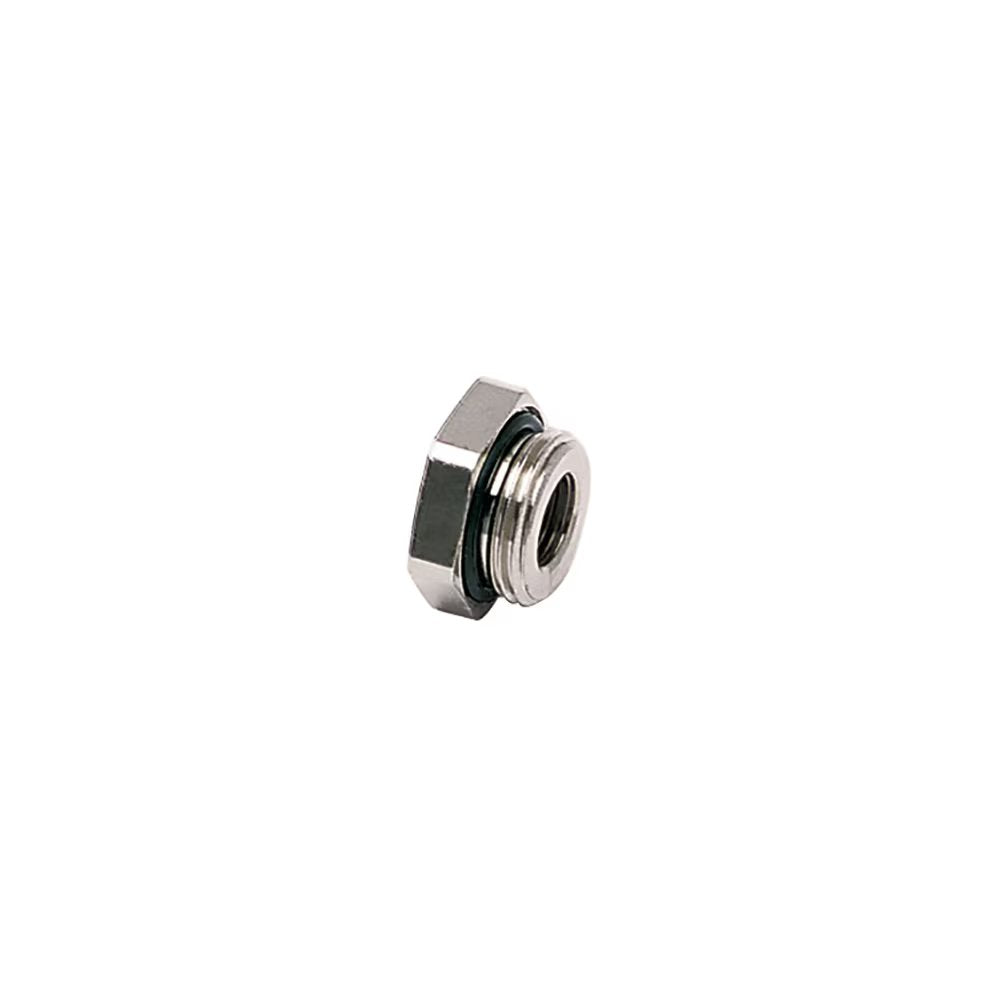

0178 13 10 by Parker | Legris Reducer | 1/4" Male BSPP Thread x 1/8" Female BSPP Thread | 16 mm Hex | 9.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Nickel-Plated Brass Adapters:0178 Reducer, Male/Female BSPP and Metric Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $33.15 |
| 40–79 | $29.98 |
| 80+ | $26.45 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | C1 | C2 | E | F | L | Kg |
| 0178 55 19 | M7x1 | M5x0.8 | 5 mm | 10 mm | 12 mm | .005 Kg |
| 0178 10 19 | 1/8" | M5x0.8 | 5 mm | 13 mm | 9 mm | .005 Kg |
| 0178 13 10 | 1/4" | 1/8" | 5.5 mm | 16 mm | 9.5 mm | .006 Kg |
| 0178 17 10 | 3/8" | 1/8" | 5.5 mm | 20 mm | 10.5 mm | .016 Kg |
| 0178 17 13 | 3/8" | 1/4" | 5.5 mm | 20 mm | 10.5 mm | .011 Kg |
| 0178 21 13 | 1/2" | 1/4" | 7.5 mm | 24 mm | 12.5 mm | .024 Kg |
| 0178 21 17 | 1/2" | 3/8" | 7.5 mm | 24 mm | 12.5 mm | .016 Kg |
| 0178 27 21 | 3/4" | 1/2" | 7.5 mm | 32 mm | 13.5 mm | .035 Kg |
With integrated O-ring seal
