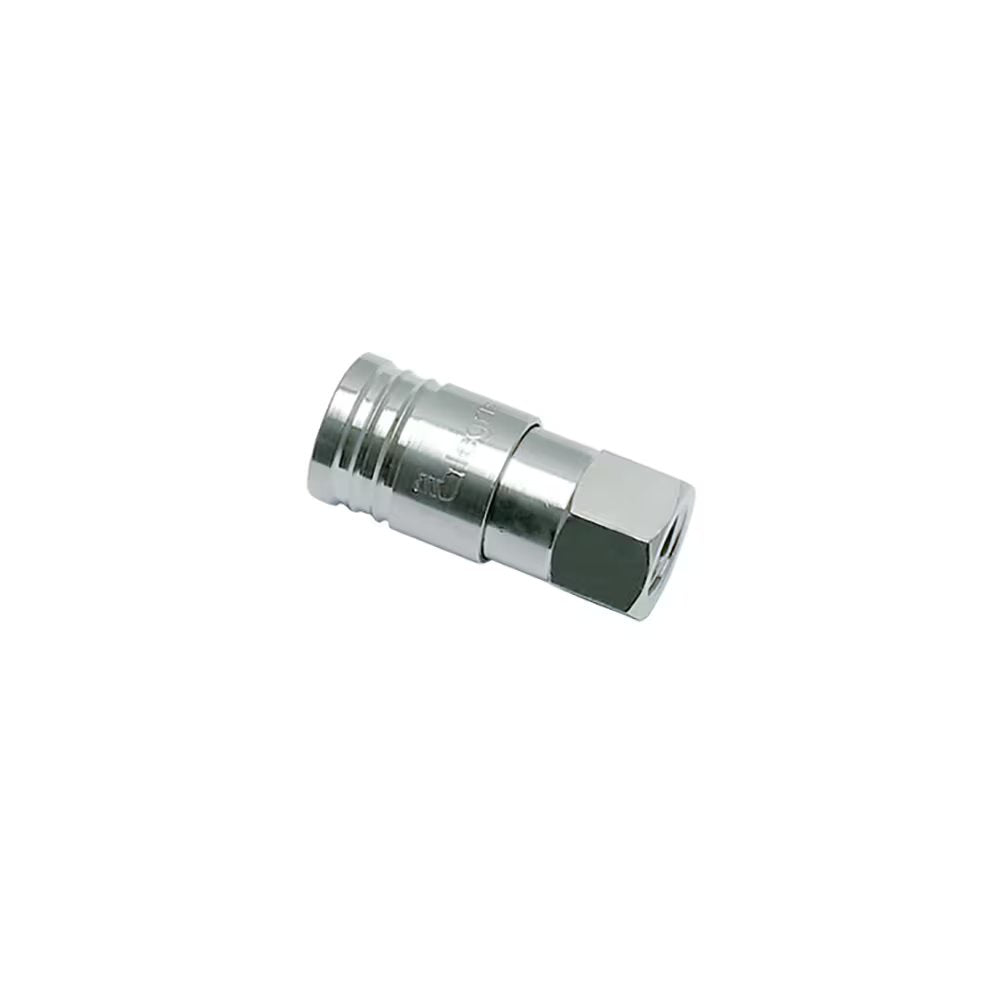

0172 05 13 by Parker | Legris Coupler Quick Disconnect | 1/4" Female BSPP Thread | 19 mm Hex | 47 mm Length | Straight | Nickel-Plated Brass | Pack of 10

0172 05 13 by Parker | Legris Coupler Quick Disconnect | 1/4" Female BSPP Thread | 19 mm Hex | 47 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$324.33

by Parker Hannifin
Metal Quick-Acting Couplers:0172 Coupler with valve, Female BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $304.87
15–29 $275.68
30+ $243.25
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0172 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Standard Series: The standard range offers a robust solutions and a good compromise between space and flow performance.
  • Robust and adapted to demanding application
  • Good corrosion resistance thanks to nickel plating
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Nickel-Plated Brass
  • Plug: Zinc Plated Blister Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +80°C (NBR)
Flow Rate Air:
  • 480 Nl/min. (inlet pressure 6 bar, pressure dop 0.6 bar)
Part Number Diameter Nominal (DN) C E F G L Kg
0172 05 13 5 1/4" 11 mm 19 mm 21 mm 47 mm .086 Kg

Standard Series: single shut-off = 480 Nl/min

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
