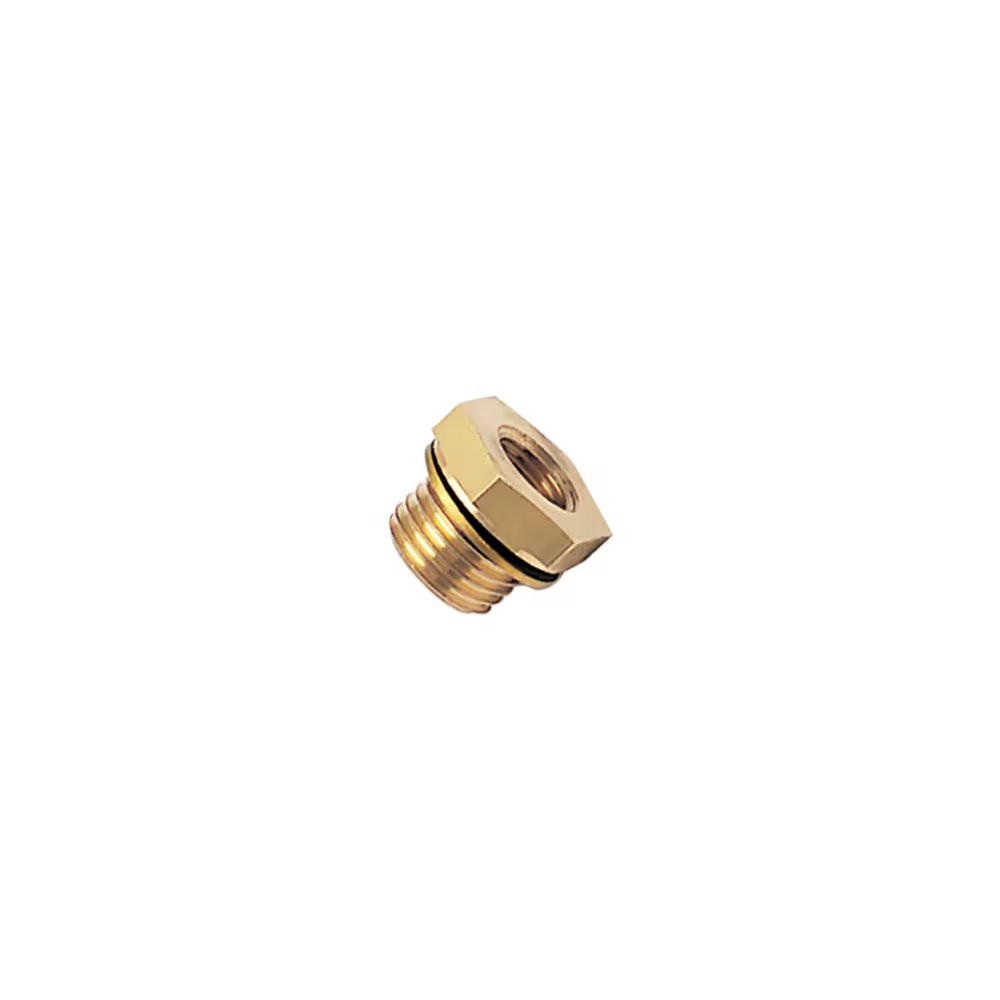

0168 21 10 39 by Parker | Legris Reducer w/ Bi-Material Seal | 1/2" Male BSPP Thread x 1/8" Female BSPP Thread | 24 mm Hex | 19.5 mm Length | Straight | Brass | Pack of 10
by Parker Hannifin
Brass Compression Fittings / Complementary Fittings:0168..39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $80.40 |
| 20–59 | $72.70 |
| 60+ | $64.15 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | C1 | C2 | E | F | H | Kg |
| 0168 13 19 39 | 1/4" | M5x0.8 | 8 mm | 14 mm | 4.5 mm | .009 Kg |
| 0168 13 10 39 | 1/4" | 1/8" | 8 mm | 17 mm | 5 mm | .012 Kg |
| 0168 17 10 39 | 3/8" | 1/8" | 10 mm | 19 mm | 5 mm | .020 Kg |
| 0168 21 10 39 | 1/2" | 1/8" | 12 mm | 24 mm | 7.5 mm | .053 Kg |
| 0168 21 13 39 | 1/2" | 1/4" | 12 mm | 24 mm | 7.5 mm | .044 Kg |
| 0168 21 17 39 | 1/2" | 3/8 | 12 mm | 24 mm | 7.5 mm | .031 Kg |
| 0168 27 17 39 | 3/4" | 3/8 | 12 mm | 32 mm | 9.5 mm | .086 Kg |
With bi-material seal. Bi-material washers part number 0139 can be found in sub-chapter “Adaptors and Manifolds”
