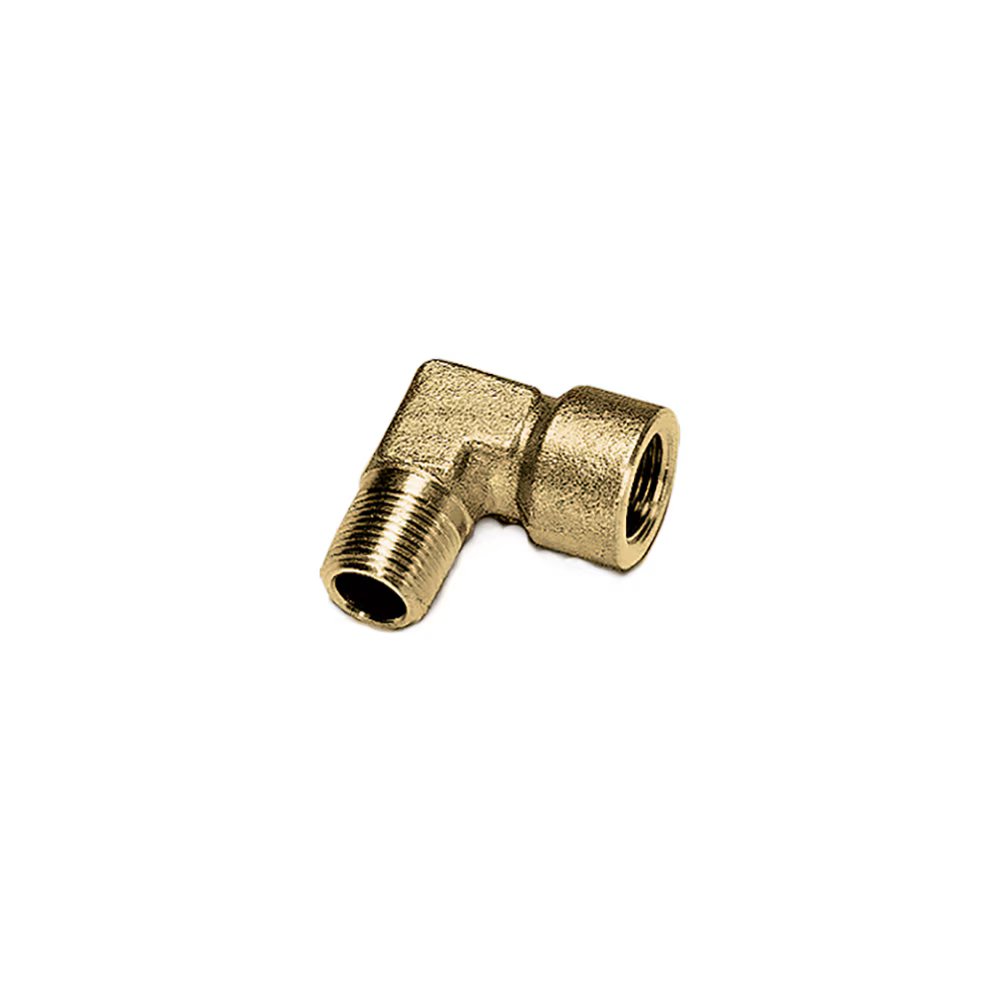

0144 17 17 by Parker | Legris Equal Stud Fitting | 3/8" Male BSPT Thread x 3/8" Female BSPP Thread | 90° Elbow | Brass | Pack of 10
by Parker Hannifin
Brass Adapters:0144 Equal Stud Elbow, Male BSPT/Female BSPP Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $218.63 |
| 20–59 | $197.70 |
| 60+ | $174.44 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | C1 | C2 | E | G | H | J | L | Kg |
| 0144 10 10 | 1/8" | 1/8" | 7.5 mm | 16.5 mm | 23 mm | 12 mm | 22.5 mm | .018 Kg |
| 0144 13 13 | 1/4" | 1/4" | 11 mm | 18.5 mm | 26 mm | 15 mm | 26.5 mm | .056 Kg |
| 0144 17 17 | 3/8" | 3/8" | 11.5 mm | 23.5 mm | 30 mm | 19 mm | 31.5 mm | .086 Kg |
| 0144 21 21 | 1/2" | 1/2" | 15 mm | 28 mm | 35 mm | 23 mm | 34.5 mm | .139 Kg |
| 0144 27 27 | 3/4" | 3/4" | 16.5 mm | 34 mm | 40 mm | 27 mm | 43.5 mm | .153 Kg |
