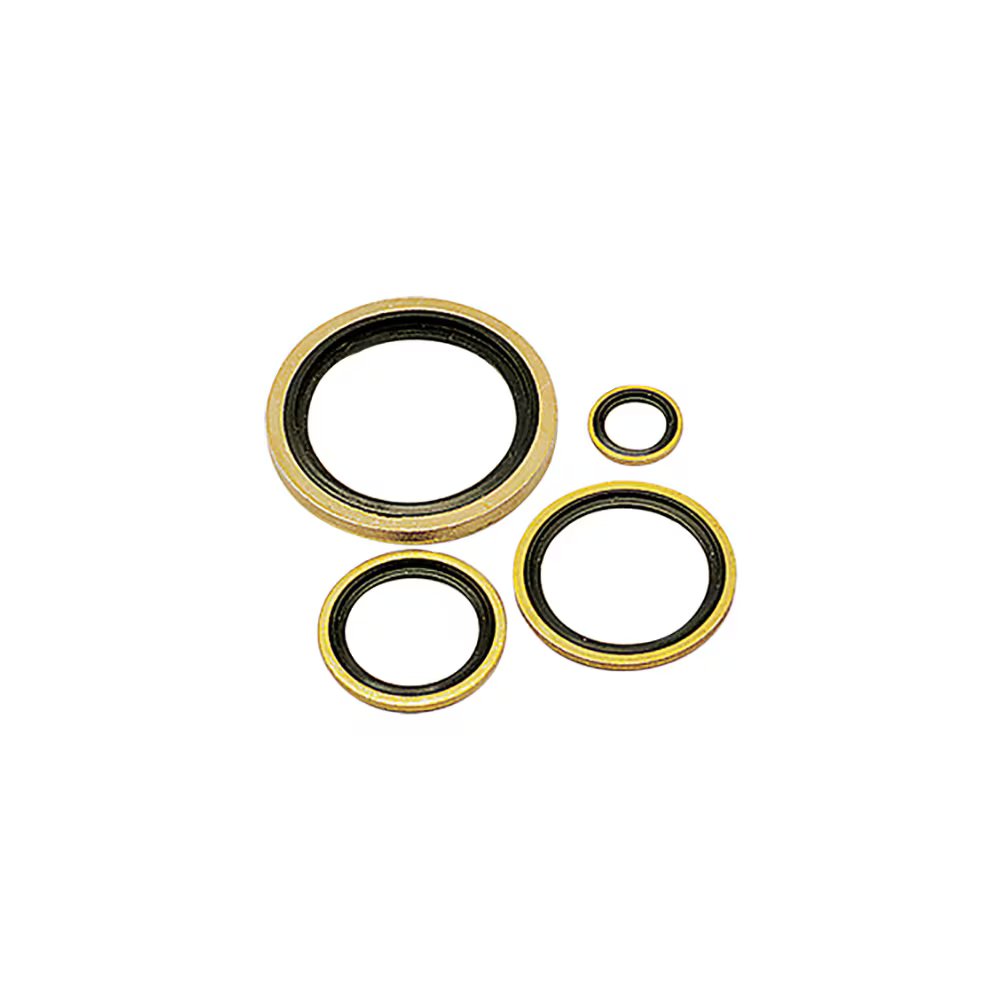

0139 27 00 by Parker | Legris Bi-Material Captive Sealing Washer | 3/4" Thread Size | 32 mm OD | Zinc-Plated Steel | Pack of 10
by Parker Hannifin
Sealing Accessories:0139 Bi-Material Captive Sealing Washer
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $25.37 |
| 40–79 | $22.94 |
| 80+ | $20.24 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
No Orientation
Material(s):
Seal Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
|||||
|---|---|---|---|---|---|
| Part Number | C | G | K | K1 | Kg |
| 0139 10 00 | 1/8" | 14 mm | 1 mm | 1.7 mm | .001 Kg |
| 0139 13 00 | 1/4" | 17 mm | 1 mm | 1.7 mm | .001 Kg |
| 0139 17 00 | 3/8" | 22 mm | 1.2 mm | 2.1 mm | .001 Kg |
| 0139 21 00 | 1/2" | 26 mm | 1.6 mm | 2.5 mm | .002 Kg |
| 0139 27 00 | 3/4" | 32 mm | 1.5 mm | 2.5 mm | .003 Kg |
| 0139 34 00 | 1" | 39.6 mm | 1.7 mm | 2.6 mm | .003 Kg |
Maximum allowable working pressure: 250 bar
