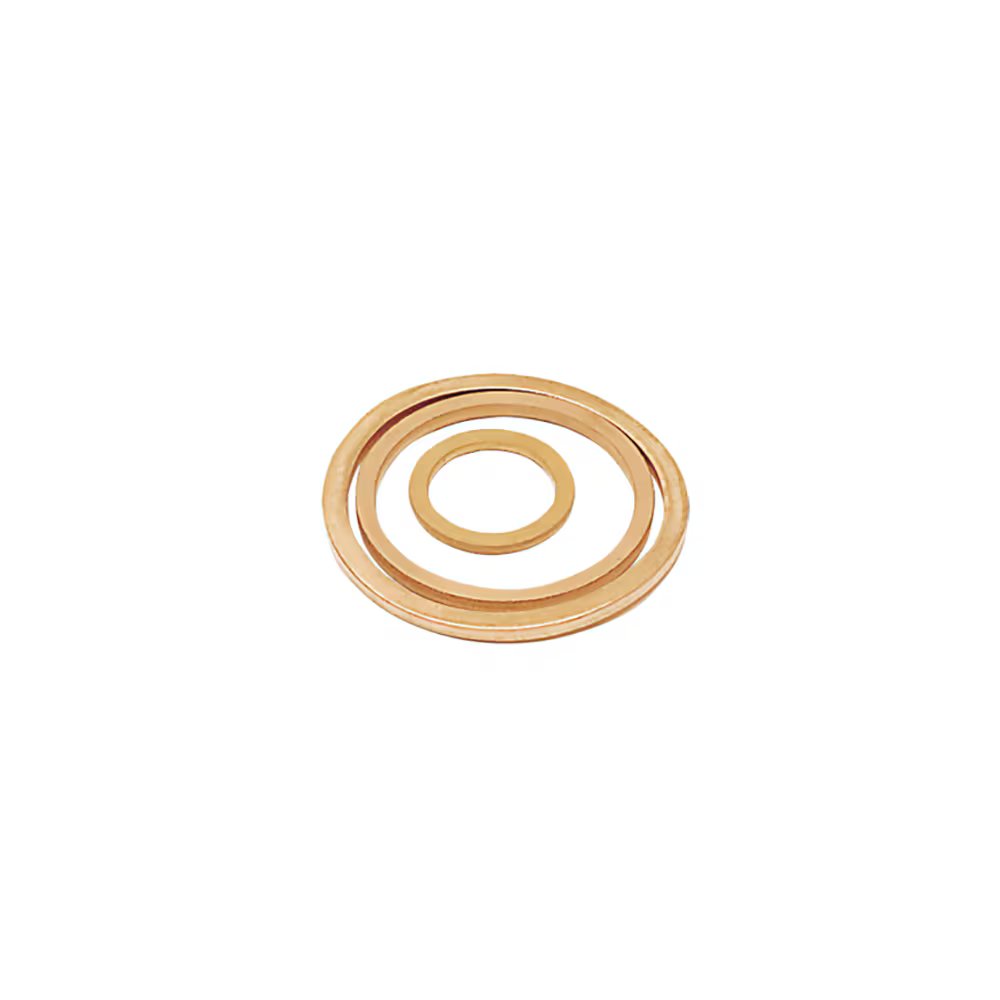

0138 17 00 by Parker | Legris G3/8" Washer | 21 mm OD | Copper | Pack of 100

0138 17 00 by Parker | Legris G3/8" Washer | 21 mm OD | Copper | Pack of 100

Sale price$109.11

by Parker Hannifin
Metric Adapters:0138 Copper Washer BSPP and Metric

Package Quantity: 100 Units

Buy More, Save More!
Quantity Price Each
20–29 $102.56
30–59 $92.74
60+ $81.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0138 Series
Shape:

No Orientation

Seal Material(s):
  • Copper
Product Features:
  • All brass construction
  • Nickel plated adapters
  • Robust design
  • Reusable
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
  • Factory/process automation
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: Brass: 1/8" to 1/2": 2900 PSI (200 bar)
3/4" and 1": 2175 PSI (150 bar)
without sealing washer		 Nickel-Plated Brass: -76F to +302F (-60°C to +150°C)
without sealing washer
-4F to +34F (-20°C to +100°C)
with sealing washer
Pressure Range: Brass: 870 PSI (59.9 bar) Nickel-Plated Brass: +14F to +176F (-10°C to +80°C)
Part Number BSPP / M5 (C) G1 G2 K WT. Oz
0138 06 00 M6 6.3 mm 9 mm 1 mm .033 Oz
0138 08 00 M8 8.3 mm 11 mm 1 mm .001 Oz
0138 12 00 M12 12.3 mm 15.5 mm 1.5 mm .072 Oz
0138 14 00 M14 14.3 mm 18 mm 1.5 mm .001 Oz
0138 16 00 M16 16.3 mm 20 mm 1.5 mm .001 Oz
0138 18 00 M18 18.3 mm 22 mm 1.5 mm .001 Oz
0138 20 00 M20 20.3 mm 24 mm 1.5 mm .001 Oz
0138 22 00 M22 22.3 mm 27 mm 1.5 mm .002 Oz
0138 24 00 M24 24.3 mm 29 mm 2 mm .003 Oz
0138 26 00 M26 26.3 mm 31 mm 2 mm .003 Oz
0138 30 00 M30 30.3 mm 36 mm 2 mm .004 Oz
0138 36 00 M36 36.3 mm 42 mm 2 mm .005 Oz
0138 10 00 G1/8" 10.3 mm 13.5 mm 1 mm .001 Oz
0138 13 00 G1/4" 13.5 mm 18 mm 1.3 mm .001 Oz
0138 17 00 G3/8" 17.3 mm 21 mm 1.5 mm .001 Oz
0138 21 00 G1/2" 21.3 mm 26 mm 1.5 mm .002 Oz
0138 27 00 G3/4" 27.3 mm 32 mm 2 mm .003 Oz
0138 33 00 G1" 33.5 mm 39 mm 2 mm .005 Oz
0138 42 00 G1-1/4" 42.5 mm 49 mm 2 mm .007 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
