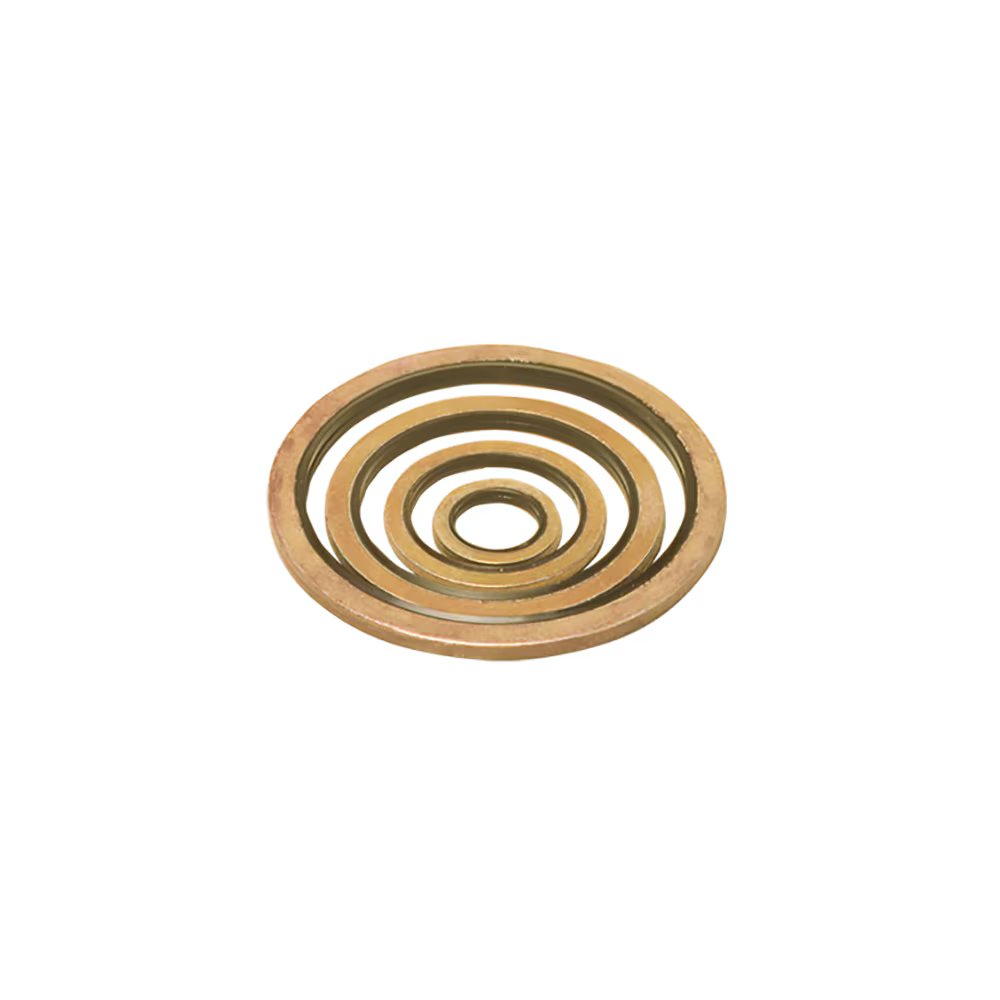

0137 18 00 by Parker | Legris Bonded Seal | M18 Metric Thread Size | 27 mm OD | Zinc-Plated Steel | Pack of 10
by Parker Hannifin
Sealing Accessories:0137 Bonded Seal
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $34.14 |
| 40–79 | $30.87 |
| 80+ | $27.24 |
Discounts applied in cart/checkout.
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
|||||
|---|---|---|---|---|---|
| Part Number | C | G1 | G2 | K | Kg |
| 0137 12 00 | M12 | 12.7 mm | 19 mm | 1.5 mm | .001 Kg |
| 0137 14 00 | M14 | 14.7 mm | 21 mm | 1.5 mm | .002 Kg |
| 0137 16 00 | M16 | 16.7 mm | 23 mm | 1.5 mm | .002 Kg |
| 0137 18 00 | M18 | 18.7 mm | 27 mm | 2 mm | .004 Kg |
| 0137 20 00 | M20 | 20.7 mm | 29 mm | 2 mm | .004 Kg |
| 0137 22 00 | M22 | 22.7 mm | 31 mm | 2 mm | .005 Kg |
| 0137 24 00 | M24 | 24.7 mm | 33 mm | 2 mm | .005 Kg |
| 0137 10 00 | 1/8" | 10.7 mm | 17 mm | 1.5 mm | .001 Kg |
| 0137 13 00 | 1/4" | 13.7 mm | 20.6 mm | 2.1 mm | .002 Kg |
| 0137 17 00 | 3/8" | 17.4 mm | 23.7 mm | 1.5 mm | .002 Kg |
| 0137 21 00 | 1/2" | 21.5 mm | 28.6 mm | 2.5 mm | .004 Kg |
| 0137 27 00 | 3/4" | 27 mm | 35.3 mm | 2 mm | .007 Kg |
| 0137 33 00 | 1" | 33.7 mm | 42 mm | 2 mm | .007 Kg |
| 0137 42 00 | 1-1/4" | 43 mm | 54 mm | 2.5 mm | .013 Kg |
| 0137 48 00 | 1-1/2" | 49 mm | 60 mm | 2.5 mm | .015 Kg |
Note: to use these bonded seals successfully it is necessary to spot face around the female
thread to provide a sealing “land“.
The diameter should be 0.3 mm to 0.5 mm greater than the external diameter of the seal.
The surface finish of the thread should not exceed 12 µ.
Product Data:
Series:
Shape:
No Orientation
Material(s):
Seal Material(s):
