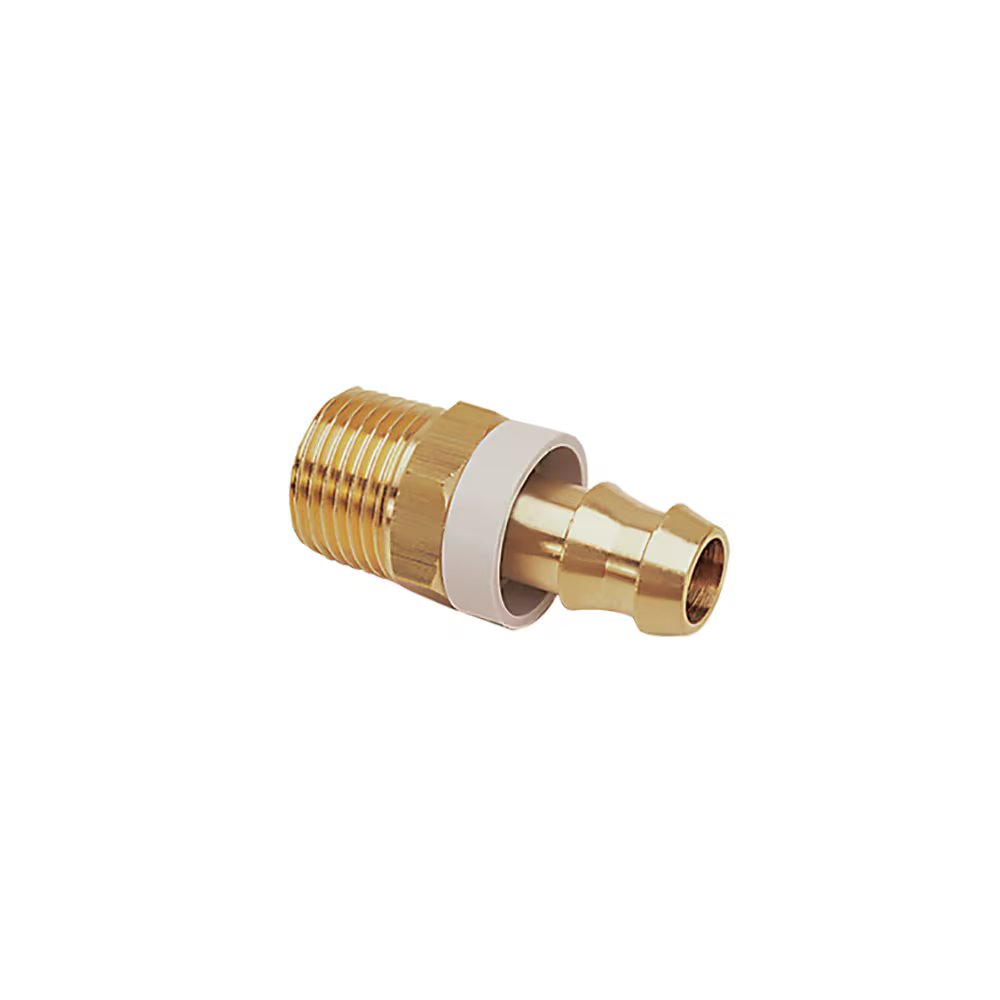

0134 56 13 by Parker | Legris Self-Fastening Barb Connector | 6.3 mm Tube ID x 13 mm Tube OD x 1/4" Male BSPT Thread | 14 mm Hex | 37 mm Length | Straight | Brass | Pack of 10

0134 56 13 by Parker | Legris Self-Fastening Barb Connector | 6.3 mm Tube ID x 13 mm Tube OD x 1/4" Male BSPT Thread | 14 mm Hex | 37 mm Length | Straight | Brass | Pack of 10

Sale price$82.37

by Parker Hannifin
Self-Fastening Hose Barb Connectors:0134 Self-Fastening Barb Connector, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $77.43
20–59 $70.01
60+ $61.78
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0134 Series
Shape:

Straight

Ends Configuration:
  • 6.3mm Hose Barb
  • 1/4in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Coolants, compressed air
  • Working Pressure: 0 to 16 bar
  • Working Temperature: 0°C to +100°C
    -20°C to +70°C (air)
Advantages:
  • Easy to use
  • Spark resistant
  • Economic and time saving solution
  • Mechanical properties proven for use in industrial robotic installations
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Brass
  • Collar: Engineering polymer
Part Number ØD1 ØD2 C F G L L1 ØT Kg
0134 56 10 6.3 mm 13 mm 1/8" 14 mm 16.5 mm 32.5 mm 20 mm 4.8 mm .015 Kg
0134 56 13 6.3 mm 13 mm 1/4" 14 mm 16.5 mm 37 mm 20 mm 4.8 mm .020 Kg
0134 60 13 9.5 mm 16 mm 1/4" 14 mm 19.5 mm 41 mm 24 mm 7.5 mm .022 Kg
0134 60 17 9.5 mm 16 mm 3/8" 19 mm 19.5 mm 41.5 mm 24 mm 7.5 mm .036 Kg
0134 62 17 12.7 mm 19 mm 3/8" 19 mm 23.5 mm 45.5 mm 28 mm 10 mm .038 Kg
0134 62 21 12.7 mm 19 mm 1/2" 22 mm 23.5 mm 50 mm 28 mm 10 mm .062 Kg
0134 66 21 15.9 mm 23 mm 1/2" 22 mm 27 mm 58.5 mm 36.5 mm 13.5 mm .056 Kg
0134 66 27 15.9 mm 23 mm 3/4" 27 mm 27 mm 60.5 mm 36.5 mm 13.5 mm .101 Kg
0134 69 27 19.1 mm 27 mm 3/4" 27 mm 30.5 mm 67 mm 43 mm 16 mm .108 Kg

Polymer collar
