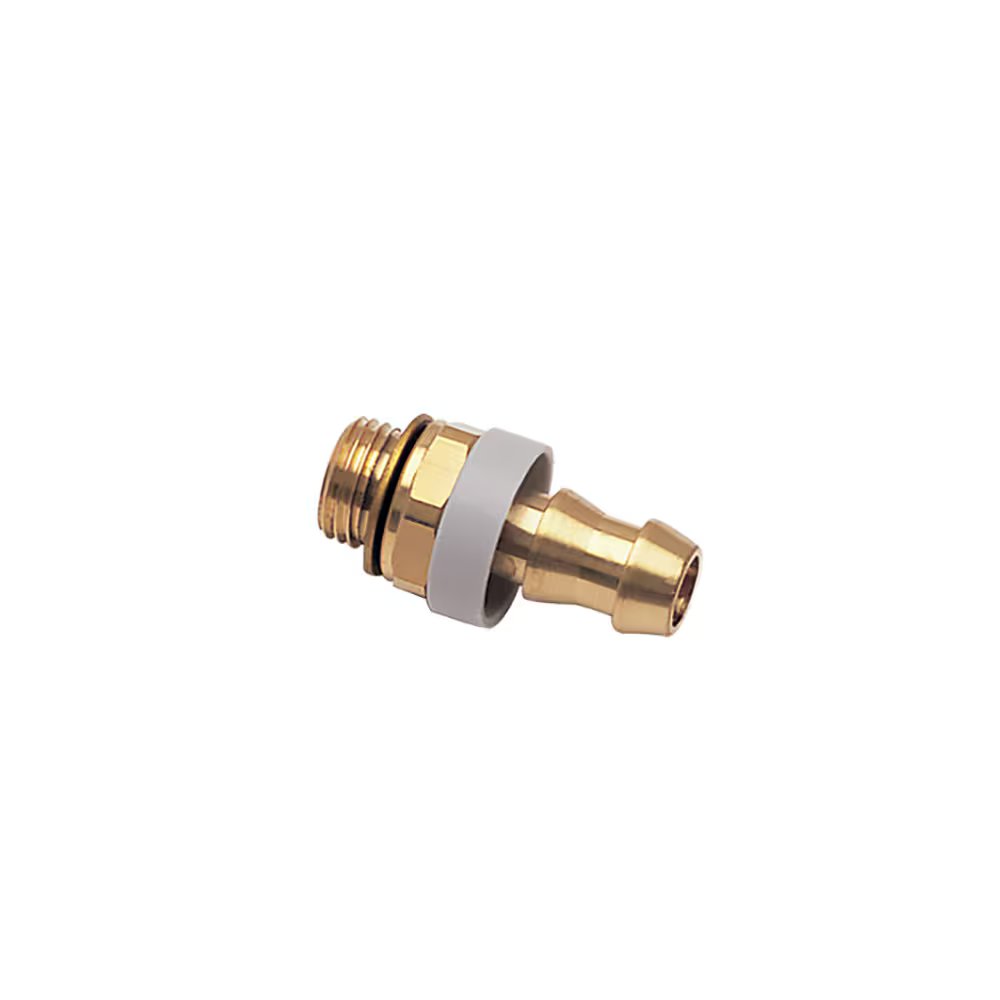

0133 66 21 39 by Parker | Legris Self-Fastening Barb Connector w/ Material Seal | 15.9 mm Tube ID x 23 mm Tube OD x 1/2" Male BSPP Thread | 27 mm Hex | 57 mm Length | Straight | Brass | Pack of 10

0133 66 21 39 by Parker | Legris Self-Fastening Barb Connector w/ Material Seal | 15.9 mm Tube ID x 23 mm Tube OD x 1/2" Male BSPP Thread | 27 mm Hex | 57 mm Length | Straight | Brass | Pack of 10

Sale price$202.35

by Parker Hannifin
Self-Fastening Hose Barb Connectors:0133..39 Self-Fastening Bar Connector with BiMaterial Seal, Male BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $190.21
20–59 $172.00
60+ $151.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0133 Series
Shape:

Straight

Ends Configuration:
  • 15.9mm Hose Barb
  • 1/2in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Coolants, compressed air
  • Working Pressure: 0 to 16 bar
  • Working Temperature: 0°C to +100°C
    -20°C to +70°C (air)
Advantages:
  • Easy to use
  • Spark resistant
  • Economic and time saving solution
  • Mechanical properties proven for use in industrial robotic installations
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Brass
  • Collar: Engineering polymer
Part Number ØD1 ØD2 C E F G H L ØT Kg
0133 56 10 39 6.3 mm 13 mm 1/8" 5.5 mm 13 mm 14 mm 20 mm 31.5 mm 4.8 mm .012 Kg
0133 56 13 39 6.3 mm 13 mm 1/4" 7 mm 17 mm 17 mm 20 mm 33.5 mm 4.8 mm .017 Kg
0133 60 17 39 9.5 mm 16 mm 3/8" 9.5 mm 22 mm 22 mm 24 mm 42.5 mm 7.5 mm .038 Kg
0133 62 21 39 12.7 mm 19 mm 1/2" 10.5 mm 27 mm 26 mm 28 mm 48.5 mm 10 mm .059 Kg
0133 66 21 39 15.9 mm 23 mm 1/2" 10.5 mm 27 mm 26 mm 36.5 mm 57 mm 13.5 mm .064 Kg
0133 69 27 39 19.1 mm 27 mm 3/4" 11.5 mm 32 mm 32 mm 43 mm 65.5 mm 16 mm .111 Kg

Thread with bi-material seal and polymer collar
Bi-material sealing washers part number 0139 can be found in the sub-chapter “Adaptors and Manifolds”
