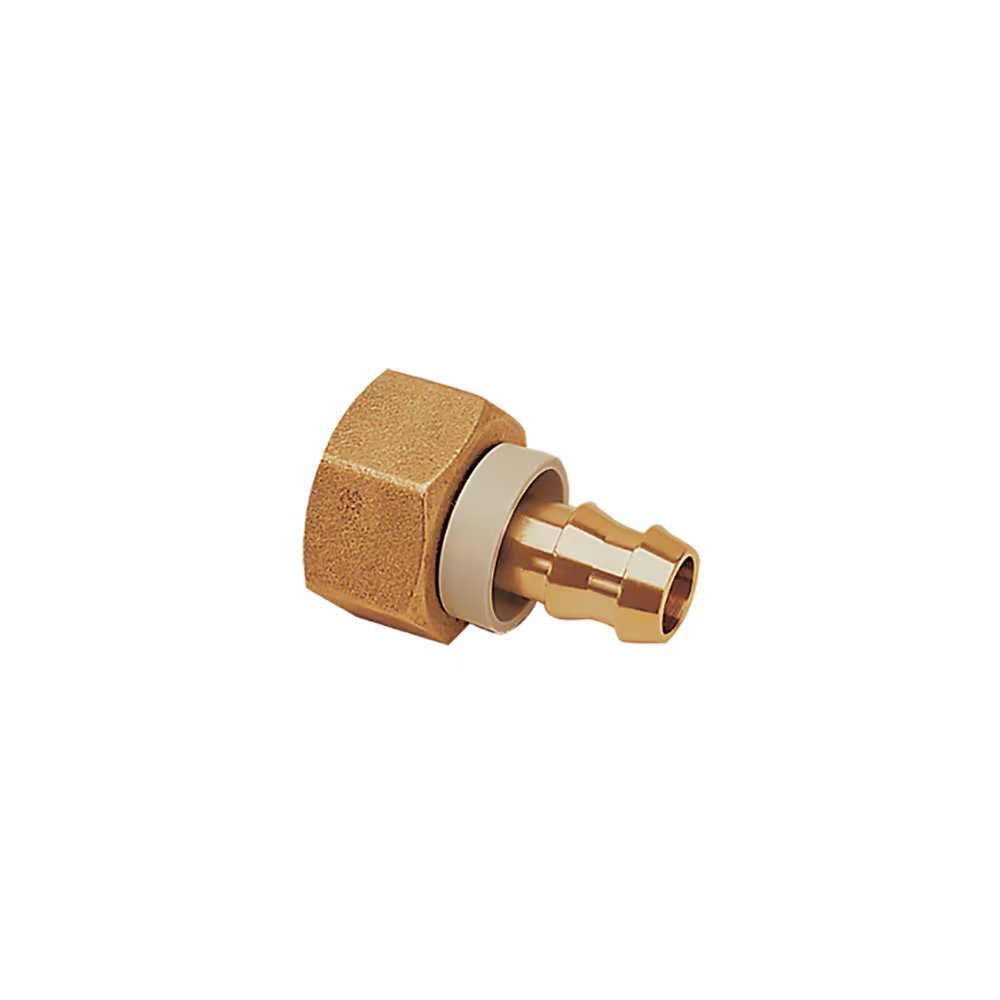

0132 10 56 by Parker | Legris Self-Fastening Barb Connector | 10mm Tube Size x 6.3mm Tube ID x 13mm Tube OD | 19mm Hex | 30mm Length | Straight | Brass | Pack of 10

0132 10 56 by Parker | Legris Self-Fastening Barb Connector | 10mm Tube Size x 6.3mm Tube ID x 13mm Tube OD | 19mm Hex | 30mm Length | Straight | Brass | Pack of 10

Sale price$78.39

by Parker Hannifin
Self-Fastening Hose Barb Connectors:0132 Self-Fastening Barb Connector for Brass Compression Fitting

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $73.69
20–59 $66.63
60+ $58.79
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0132 Series
Shape:

Straight

Ends Configuration:
  • 10mm Tube Compression
  • 6.3mm Hose Barb
Technical Characteristics:
  • Compatible Fluids: Coolants, compressed air
  • Working Pressure: 0 to 16 bar
  • Working Temperature: 0°C to +100°C
    -20°C to +70°C (air)
Advantages:
  • Easy to use
  • Spark resistant
  • Economic and time saving solution
  • Mechanical properties proven for use in industrial robotic installations
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Brass
  • Collar: Engineering polymer
Part Number ØD1 ØD2 ØD3 F G L L1 ØT Kg
0132 08 56 8 mm 6.3 mm 13 mm 12 mm 16.5 mm 32.5 mm 12.5 mm 4.8 mm .010 Kg
0132 10 56 10 mm 6.3 mm 13 mm 19 mm 16.5 mm 30 mm 14 mm 4.8 mm .028 Kg
0132 10 60 10 mm 9.5 mm 16 mm 19 mm 19.5 mm 34 mm 14 mm 7.5 mm .030 Kg
0132 14 60 14 mm 9.5 mm 16 mm 24 mm 19.5 mm 35.5 mm 15 mm 15 mm .050 Kg
0132 14 62 14 mm 12.7 mm 19 mm 24 mm 23.5 mm 39.5 mm 15 mm 10 mm .054 Kg
0132 18 62 18 mm 12.7 mm 19 mm 30 mm 23.5 mm 41.5 mm 17 mm 10 mm .090 Kg
0132 18 66 18 mm 15.9 mm 23 mm 30 mm 27 mm 50 mm 17 mm 13.5 mm .090 Kg
0132 22 69 22 mm 19.1 mm 27 mm 36 mm 30.5 mm 56.5 mm 17 mm 16 mm .130 Kg

Polymer collar
